THREE POINT LINKAGE GROUP - CK20M-T730A

Kioti TRACTOR | CK Series | CK20S

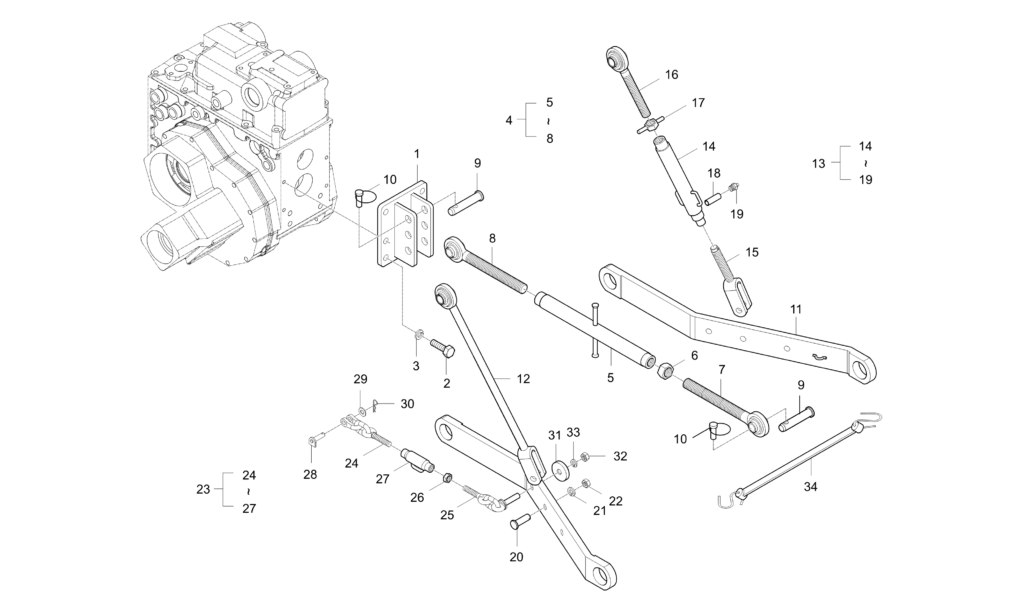

Diagram for THREE POINT LINKAGE GROUP - CK20M-T730A
  • 1

    BRACKET, TOP LINK dnr v

    • Part No. T2350-22141
    • Serial No. Up to HS2900180
    • 1 shown on diagram
    $129.99
  • 2

    BOLT M14 P1.50 × 35mm

    • Part No. 01173-51435
    • M14XP1.5
    • 6 shown on diagram
    $3.49
  • 3

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 6 shown on diagram
    $0.90
  • 4

    TOP LINK ASSY V

    • Part No. T2350-71102
    • Serial No. Up to HS2900180
    • * multiple options for #4
    • 1 shown on diagram
    $289.99
  • 4

    TOP-LINK ASSY

    • Part No. T2350-71211
    • Compatibility Interchngable
    • Applied Dates 2011-01-11 and up
    • Serial No. LS2900031 and up
    • * multiple options for #4
    • 1 shown on diagram
    $324.99
  • 5 Top Link (T2350-71112)

    Top Link (T2350-71112)

    • Part No. T2350-71112
    • Serial No. Up to HS2900180
    • 1 shown on diagram
    $79.99
  • 6

    NUT, TOP LINK

    • Part No. 32244-7118-1
    • M24P3.0
    • 1 shown on diagram
    $15.99
  • 7

    TOP LINK JOINT RH

    • Part No. T2350-71241
    • 1 shown on diagram
    $134.99
  • 8 TOP LINK JOINT, LH

    TOP LINK JOINT, LH

    • Part No. T2350-71231
    • 1 shown on diagram
    $129.99
  • 9

    Top Link Pin (31150-7136-5)

    • Part No. 31150-7136-5
    • DIA19
    • 1 shown on diagram
    $15.99
  • 10

    PIN, CLIP dnr v

    • Part No. 34150-3764-4
    • DIA10.0
    • 3 shown on diagram
    $5.99
  • 11 Lower Link Assembly

    Lower Link Assembly

    • Part No. T2350-71312
    • Applied Dates Up to 2003-09-20
    • * multiple options for #11
    • 2 shown on diagram
    $369.99
  • 11

    Lower Link Assembly

    • Part No. T2350-71313
    • Compatibility New repl old
    • * multiple options for #11
    • 2 shown on diagram
    $309.99
  • 12

    ASSY, LIFTROD(LH)

    • Part No. T2350-71512
    • Applied Dates Up to 2003-09-20
    • Serial No. VS2900001 to HS2900180
    • * multiple options for #12
    • 1 shown on diagram
    $92.99
  • 12

    LIFT ROD ASSY, LH

    • Part No. T2350-71512BB
    • Compatibility Call for compat
    • Serial No. HS2900181 and up
    • * multiple options for #12
    • 1 shown on diagram
    $92.99
  • 13

    ASSY, LIFTROD RH, Replaced by T2350-71612BB

    • Part No. T2350-71612
    • Applied Dates Up to 2003-09-20
    • Serial No. VS2900001 to HS2900180
    • * multiple options for #13
    • 1 shown on diagram
    $0.00
  • 13

    LIFT ROD ASSY, RH

    • Part No. T2350-71612BB
    • Compatibility Call for compat
    • Serial No. HS2900181 and up
    • * multiple options for #13
    • 1 shown on diagram
    $139.99
  • 14

    USE T2350-71532

    • Part No. T2350-71531
    • 1 shown on diagram
    $64.99
  • 15

    ROD, LIFT LOW

    • Part No. T2350-71622
    • 1 shown on diagram
    $37.99
  • 16 ROD, LIFT UPPER

    ROD, LIFT UPPER

    • Part No. T2350-71652
    • 1 shown on diagram
    $59.99
  • 17

    NUT

    • Part No. 35110-7157-2
    • 1 shown on diagram
    $13.99
  • 18

    PIN,SPRING

    • Part No. 05411-00320
    • 1 shown on diagram
    $0.68
  • 19 Grease Nipple M6 P0.75

    Grease Nipple M6 P0.75

    • Part No. 06613-10675
    • M6XP0.75
    • 1 shown on diagram
    $2.49
  • 20

    PIN, LIFTROD (LOW) v

    • Part No. T2350-71221
    • * multiple options for #20
    • 2 shown on diagram
    $9.99
  • 20

    PIN, LIFTROD (LOW)

    • Part No. T2350-71222
    • Compatibility New repl old
    • Applied Dates 2005-06-18 to 2005-06-18
    • * multiple options for #20
    • 2 shown on diagram
    $13.99
  • 21 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 22

    NUT

    • Part No. 02114-50100
    • M10*P1.5
    • 2 shown on diagram
    $0.67
  • 23

    Check Chain Assembly Replaced by T2350-71802

    • Part No. T2350-71801
    • * multiple options for #23
    • 2 shown on diagram
    $69.99
  • 23

    ASSY CHAIN CHECK

    • Part No. T2350-71802
    • Compatibility Interchngable
    • Applied Dates 2003-03-11 and up
    • * multiple options for #23
    • 2 shown on diagram
    $114.99
  • 24 USE 35110-71811

    USE 35110-71811

    • Part No. 35110-7181-1
    • 2 shown on diagram
    $58.99
  • 25

    CHAIN,REAR CHECK

    • Part No. T2350-71821
    • 2 shown on diagram
    $41.99
  • 26 NUT, M14 P2.00

    NUT, M14 P2.00

    • Part No. 02052-50140
    • M14*2.0
    • 2 shown on diagram
    $1.59
  • 27 Turn Buckle M14 P2.00×105 (T2350-22841)

    Turn Buckle M14 P2.00×105 (T2350-22841)

    • Part No. T2350-22841
    • 2 shown on diagram
    $29.99
  • 28 PIN

    PIN

    • Part No. 99571-2282-3
    • 2 shown on diagram
    $9.49
  • 29 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 30

    PIN, SNAP

    • Part No. 05515-51000
    • Applied Dates Up to 2017-12-06
    • DIA10
    • * multiple options for #30
    • 2 shown on diagram
    $1.29
  • 30

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • Compatibility Interchngable
    • Applied Dates 2017-12-07 and up
    • * multiple options for #30
    • 2 shown on diagram
    $0.68
  • 31

    COLLAR

    • Part No. T2350-71831
    • 2 shown on diagram
    $4.99
  • 32

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 2 shown on diagram
    $0.90
  • 33 NUT

    NUT

    • Part No. 02076-50140
    • M14XP1.5
    • 2 shown on diagram
    $1.79
  • 34

    ASSY,CHECK LINK(RUBBER)

    • Part No. T2610-21321
    • 1 shown on diagram
    $19.99
