ACCELERATOR GROUP - CK22M-T800A

Kioti TRACTOR | CK Series | CK20S

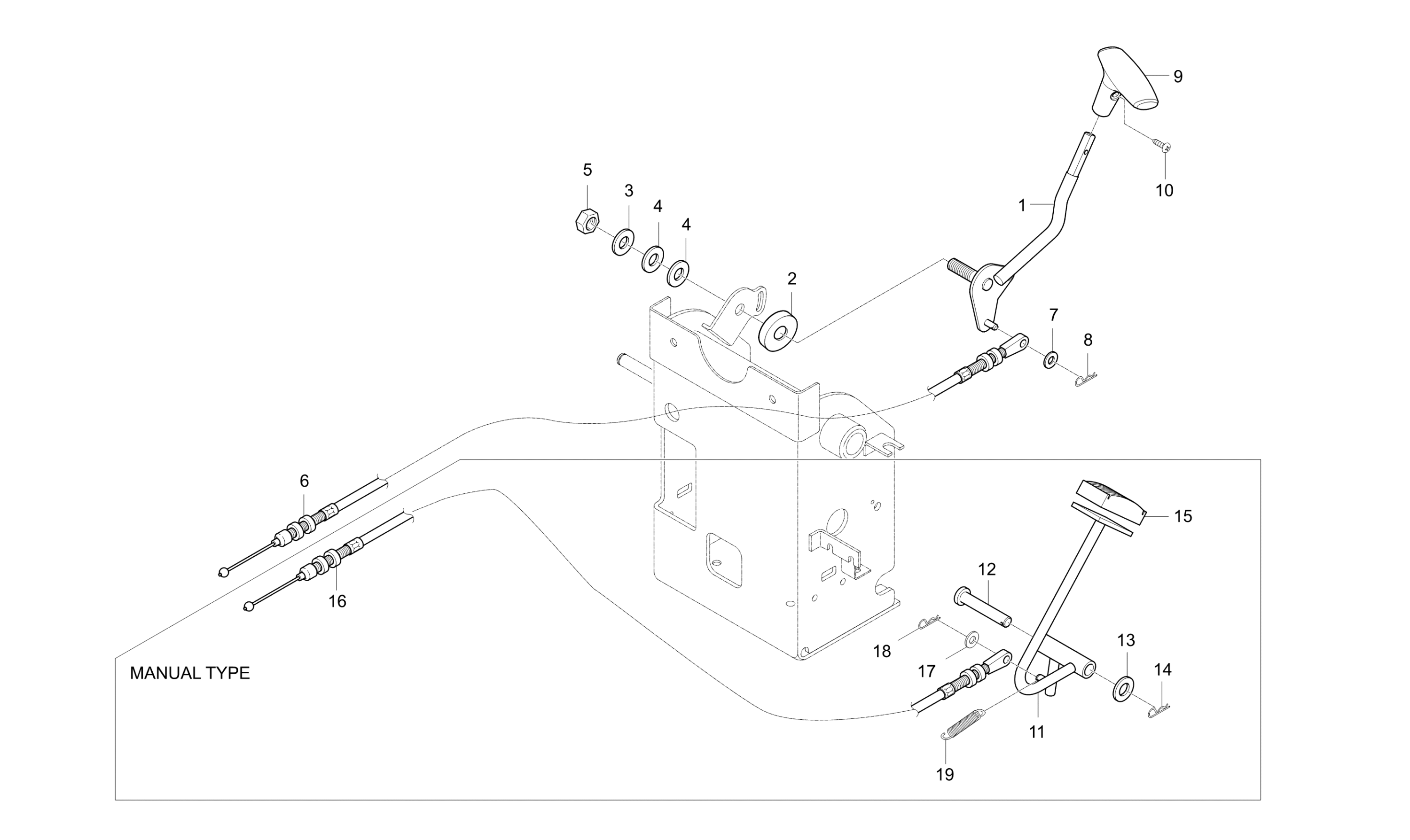

Diagram for ACCELERATOR GROUP - CK22M-T800A
  • 1

    LEVER 1, THROTTLE

    • Part No. T2368-60081
    • T9.0
    • 1 shown on diagram
    $53.99
  • 2

    LINING

    • Part No. T2670-60091
    • 1 shown on diagram
    $18.99
  • 3 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $0.85
  • 4

    SPRING

    • Part No. T4835-17241
    • 2 shown on diagram
    $4.49
  • 5

    NUT

    • Part No. 02174-50120
    • Applied Dates Up to 2007-09-03
    • M12*P1.25
    • * multiple options for #5
    • 2 shown on diagram
    $0.85
  • 5 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • Compatibility Interchngable
    • M12XP1.25
    • * multiple options for #5
    • 2 shown on diagram
    $1.49
  • 6

    CABLE, HAND ACCEL

    • Part No. T2546-17361
    • 1 shown on diagram
    $39.99
  • 7 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 8

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 9

    GRIP, LEVER v

    • Part No. T2350-60142
    • Applied Dates Up to 2009-01-15
    • Serial No. Up to GS2900060
    • * multiple options for #9
    • 1 shown on diagram
    $13.99
  • 9

    LEVER, GRIP v

    • Part No. T2350-60143
    • Compatibility New repl old
    • * multiple options for #9
    • 1 shown on diagram
    $22.99
  • 9

    GRIP,LEVER

    • Part No. T2350-60144
    • Compatibility New repl old
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 10

    SCREW v

    • Part No. 03024-50516
    • 1 shown on diagram
    $0.79
  • 11

    LEVER 3, ACCEL

    • Part No. T2350-60112
    • * multiple options for #11
    • 1 shown on diagram
    $14.99
  • 11

    Accelerator Lever 3, (T2350-60113)

    • Part No. T2350-60113
    • Compatibility Old repl new
    • Applied Dates 2012-09-01 and up
    • Serial No. MS2900141 and up
    • * multiple options for #11
    • 1 shown on diagram
    $14.99
  • 12

    Pin, Joint M8x65mm

    • Part No. 05122-50865
    • 1 shown on diagram
    $3.99
  • 13 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 1 shown on diagram
    $0.79
  • 14 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
    $1.29
  • 15

    RUBBER, PEDAL

    • Part No. T2350-26661
    • 1 shown on diagram
    $7.99
  • 16

    CABLE, PEDEL ACCEL

    • Part No. T2370-60051
    • 1 shown on diagram
    $41.99
  • 17 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 18

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 19

    SPRING

    • Part No. T2350-60131
    • DIA1.0
    • 1 shown on diagram
    $4.99
