LEVER, SUBMISSION 1 GROUP - CK20M-T305B

Kioti TRACTOR | CK Series | CK20S

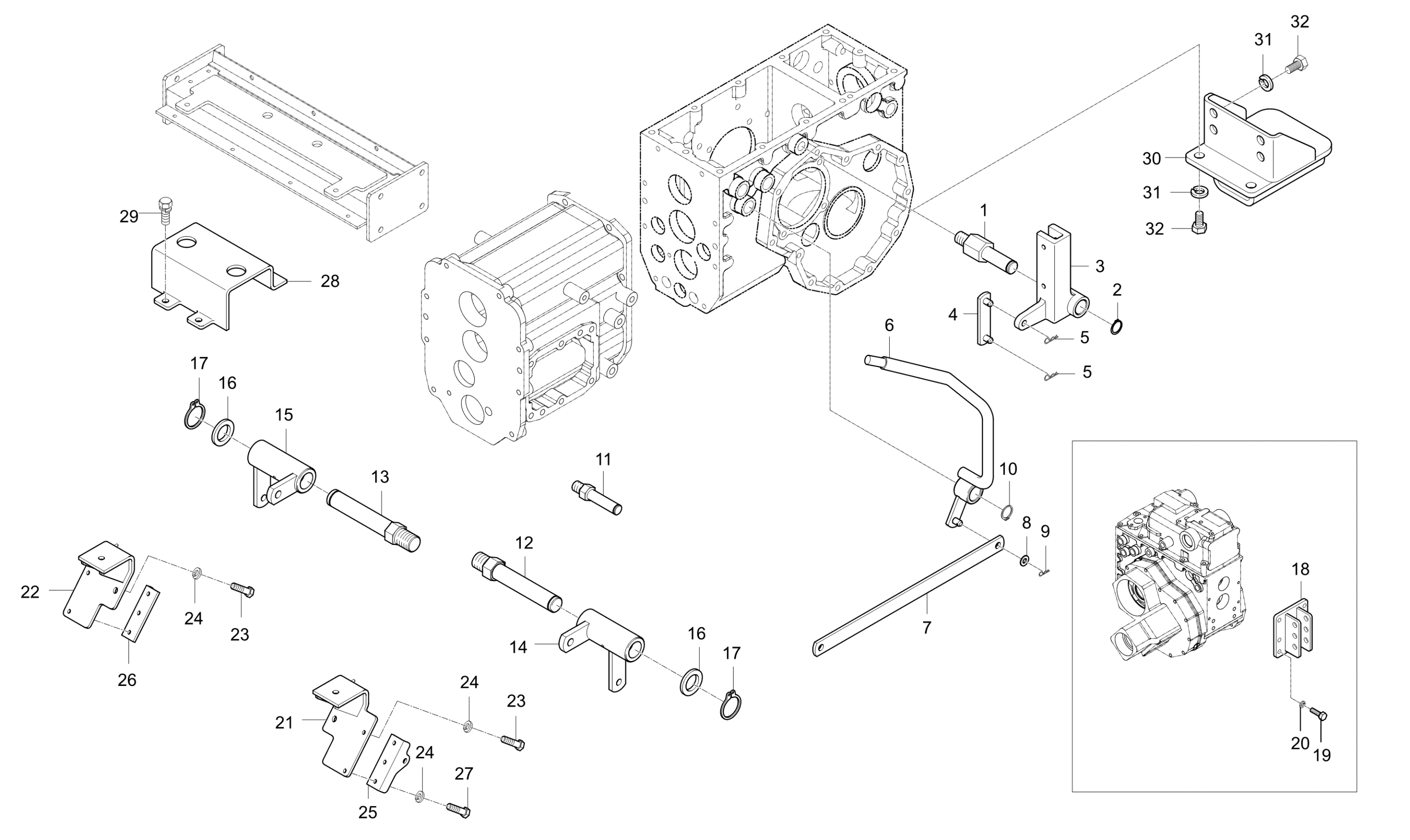

Diagram for LEVER, SUBMISSION 1 GROUP - CK20M-T305B
  • 1

    Shaft (Hi-Low)

    • Part No. T2350-24342
    • HEX27
    • 1 shown on diagram
    $27.99
  • 2 Snap Ring

    Snap Ring

    • Part No. 04612-00180
    • Applied Dates Up to 2010-12-31
    • DIA18
    • 1 shown on diagram
    $1.09
  • 3 Bracket, Range Shift

    Bracket, Range Shift

    • Part No. T2350-24352BB
    • 1 shown on diagram
    $84.99
  • 4

    PLATE CONNECTING, SUB SHIFT

    • Part No. T2350-24332BB
    • 1 shown on diagram
    $16.99
  • 5 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 6

    LEVER, FWD

    • Part No. T2350-44363BB
    • 1 shown on diagram
    $63.99
  • 7

    Front Drive Rod Replaced by T2350-44342BB

    • Part No. T2350-44342
    • 19*T4.5
    • 1 shown on diagram
    $0.00
  • 8 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $0.79
  • 9 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 10 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • Applied Dates Up to 2011-12-31
    • DIA20
    • 1 shown on diagram
    $1.09
  • 11

    SHAFT(MID PTO)

    • Part No. T2350-24282
    • HEX27
    • 1 shown on diagram
    $24.99
  • 12

    SHAFT, BRAKE(LH)

    • Part No. T2350-55802
    • 1 shown on diagram
    $19.99
  • 13

    (RH) Brake Shaft (T2350-55811)

    • Part No. T2350-55811
    • HEX27
    • 1 shown on diagram
    $26.99
  • 14

    LEVER,BRAKE (LH)

    • Part No. T2350-55782
    • Applied Dates Up to 2011-12-31
    • 1 shown on diagram
    $55.99
  • 15

    LEVER(R), BRAKE

    • Part No. T2350-55793
    • Applied Dates Up to 2011-12-31
    • 1 shown on diagram
    $61.99
  • 16 Flat Washer M20

    Flat Washer M20

    • Part No. 04013-50200
    • Applied Dates Up to 2011-12-31
    • 2 shown on diagram
    $1.29
  • 17 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • Applied Dates Up to 2011-12-31
    • DIA20
    • 2 shown on diagram
    $1.09
  • 18

    BRACKET, TOP-LINK

    • Part No. T2350-22141ED
    • 1 shown on diagram
    $129.99
  • 19

    BOLT M14 P1.50 × 35mm

    • Part No. 01173-51435
    • M14XP1.5
    • 6 shown on diagram
    $3.49
  • 20

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 6 shown on diagram
    $0.90
  • 21

    BRACKET, CHECK-CHAIN

    • Part No. T2351-85181ED
    • 1 shown on diagram
    $99.99
  • 22

    BRACKET, CHECK-CHAIN

    • Part No. T2351-85191ED
    • 1 shown on diagram
    $99.99
  • 23

    Bolt (01173-51430)

    • Part No. 01173-51430
    • M14P1.5*30
    • 2 shown on diagram
    $4.49
  • 24

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 6 shown on diagram
    $0.90
  • 25

    HOLDER, CHECK-CHAIN

    • Part No. T2350-85212ED
    • 1 shown on diagram
    $37.99
  • 26

    HOLDER, CHECK-CHAIN

    • Part No. T2350-85222ED
    • 1 shown on diagram
    $36.99
  • 27

    Hex Head Cap Screw M14 P1.5×40

    • Part No. 01173-51440
    • M14XP1.5
    • 4 shown on diagram
    $3.49
  • 28

    SUPPORT

    • Part No. T2350-95221BB
    • 1 shown on diagram
    $71.99
  • 29

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 30

    HITCH dnr v

    • Part No. T2350-29812BB
    • 1 shown on diagram
    $199.99
  • 31

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 6 shown on diagram
    $0.90
  • 32

    Bolt M14P1.5 (01173-51425)

    • Part No. 01173-51425
    • M14P1.5
    • 6 shown on diagram
    $4.99
