SHAFT 2 GROUP - D652-T145A

Kioti TRACTOR | DK Series | DK754C

  • 1

    SHAFT, GEAR 21T v

    • Part No. T5189-21511
    • Applied Dates Up to 2011-05-01
    • *multiple options for # 1
    • 1 shown on diagram
    $799.99
  • 1

    SHAFT, GEAR 21T

    • Part No. T5189-21512
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $424.99
  • 2

    BOSS, SPLINE

    • Part No. T5189-21521
    • Applied Dates 2007-05-16 and up
    • 1 shown on diagram
    $109.99
  • 3

    BEARING, BALL

    • Part No. 08101-06310
    • 1 shown on diagram
    $88.99
  • 4

    COLLAR, THRUST

    • Part No. T4810-21521
    • Applied Dates Up to 2011-05-01
    • *multiple options for # 4
    • 1 shown on diagram
    $21.99
  • 4

    COLLAR, THRUST

    • Part No. T4920-21521
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • *multiple options for # 4
    • 1 shown on diagram
    $26.99
  • 5

    RING, INNER

    • Part No. T4810-21533
    • Applied Dates Up to 2011-05-01
    • 1 shown on diagram
    $53.99
  • 6

    BEARING, NEEDLE

    • Part No. 08825-05527
    • Applied Dates Up to 2011-05-01
    • K50X55X27
    • *multiple options for # 6
    • 1 shown on diagram
    $56.99
  • 6

    BEARING NEDDLE

    • Part No. 08824-75227
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • K47X52X27
    • *multiple options for # 6
    • 1 shown on diagram
    $56.99
  • 7

    GEAR, 41T v

    • Part No. T5189-21711
    • Applied Dates Up to 2011-05-01
    • *multiple options for # 7
    • 1 shown on diagram
    $254.99
  • 7

    GEAR, 41T

    • Part No. T5189-21712
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • *multiple options for # 7
    • 1 shown on diagram
    $254.99
  • 8

    SYNCHRONIZER, MAIN SHIFT v

    • Part No. T4810-21762
    • 4 shown on diagram
    $144.99
  • 9

    HUB, SYNCHRO v

    • Part No. T4810-21774
    • Applied Dates Up to 2011-05-01
    • *multiple options for # 9
    • 2 shown on diagram
    $229.99
  • 9

    HUB, SYNCHRO

    • Part No. T4920-21771
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • *multiple options for # 9
    • 1 shown on diagram
    $184.99
  • 10

    SHIFTER

    • Part No. T4810-21782
    • 2 shown on diagram
    $209.99
  • 11

    SPRING

    • Part No. T4810-21792
    • DIA2.6
    • 4 shown on diagram
    $15.99
  • 12

    KEY, SYNCHRONIZER

    • Part No. T4810-21802
    • 6 shown on diagram
    $8.49
  • 13

    RING, INNER

    • Part No. T4810-21542
    • Applied Dates Up to 2011-05-01
    • 2 shown on diagram
    $69.99
  • 14

    BEARING, NEEDLE

    • Part No. 08825-05527
    • Applied Dates Up to 2011-05-01
    • K50X55X27
    • *multiple options for # 14
    • 2 shown on diagram
    $56.99
  • 14

    BEARING,NEEDLE v

    • Part No. 08824-04527
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • *multiple options for # 14
    • 2 shown on diagram
    $44.99
  • 15

    GEAR, 35T v

    • Part No. T5189-21721
    • Applied Dates Up to 2011-05-01
    • *multiple options for # 15
    • 1 shown on diagram
    $259.99
  • 15

    GEAR, 35T

    • Part No. T5189-21722
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • *multiple options for # 15
    • 1 shown on diagram
    $259.99
  • 16

    COLLAR,THRUST

    • Part No. T4810-21551
    • Applied Dates Up to 2011-05-01
    • *multiple options for # 16
    • 1 shown on diagram
    $66.99

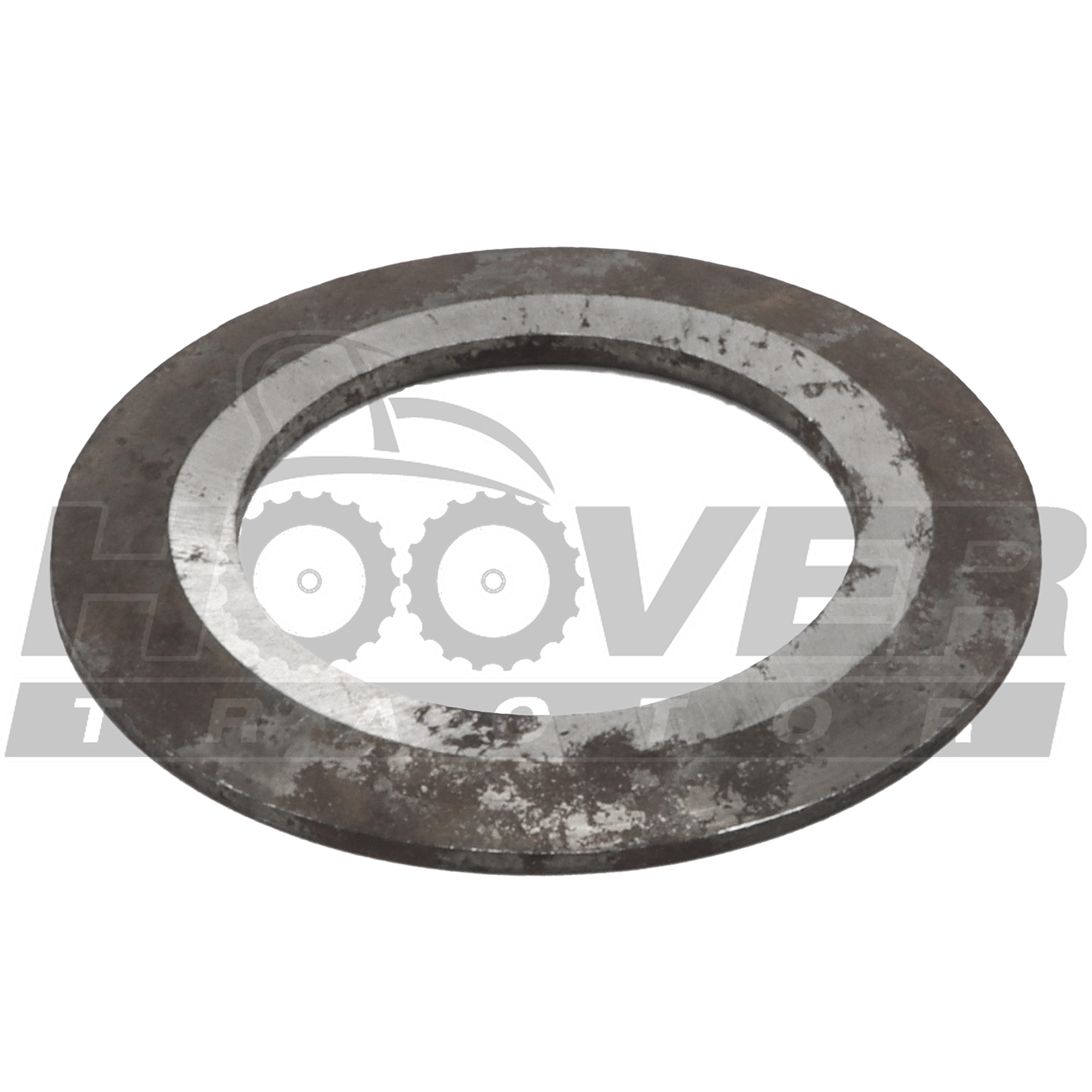

  • 16 COLLAR, THRUST

    COLLAR, THRUST

    • Part No. T2440-22581
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • *multiple options for # 16
    • 2 shown on diagram
    $21.99
  • 17

    GEAR, 31T v

    • Part No. T5189-21731
    • Applied Dates Up to 2011-05-01
    • *multiple options for # 17
    • 1 shown on diagram
    $314.99
  • 17

    GEAR, 31T

    • Part No. T5189-21732
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • *multiple options for # 17
    • 1 shown on diagram
    $274.99
  • 18

    COLLAR, THRUST v

    • Part No. T4620-21521
    • Applied Dates Up to 2011-05-01
    • 1 shown on diagram
    $24.99
  • 19 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • Applied Dates Up to 2011-05-01
    • DIA35
    • *multiple options for # 19
    • 1 shown on diagram
    $28.99
  • 19 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • DIA30
    • *multiple options for # 19
    • 1 shown on diagram
    $29.99
  • 20 NUT

    NUT

    • Part No. 35340-2532-1
    • Applied Dates Up to 2011-05-01
    • M32*1.5
    • *multiple options for # 20
    • 1 shown on diagram
    $15.99
  • 20 NUT, 28mm LOCK

    NUT, 28mm LOCK

    • Part No. T4620-21591
    • Compatibility Call for compatibility
    • Applied Dates 2011-07-13 and up
    • *multiple options for # 20
    • 1 shown on diagram
    $14.99
  • 21

    SHAFT, GEAR 27T v

    • Part No. T5189-21741
    • Applied Dates 2007-05-16 and up
    • 1 shown on diagram
    $369.99
  • 22 BEARING, BALL

    BEARING, BALL

    • Part No. 08101-06212
    • DIA60
    • 1 shown on diagram
    $89.99
  • 23 Snap Ring, External, 60mm

    Snap Ring, External, 60mm

    • Part No. 04612-00600
    • 1 shown on diagram
    $5.49
  • 24

    GEAR, 26T

    • Part No. T5119-21781
    • Applied Dates 2007-05-16 and up
    • 1 shown on diagram
    $99.99
  • 25 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • Applied Dates 2011-07-13 and up
    • DIA30
    • 1 shown on diagram
    $29.99
  • 26 SHIM 0.1

    SHIM 0.1

    • Part No. T4520-42351
    • T0.1
    • 99 shown on diagram
    $3.99
  • 27

    SHIM 0.2

    • Part No. T4520-42361
    • T0.2
    • 99 shown on diagram
    $2.99
  • 28

    SHIM 0.4

    • Part No. T4520-42371
    • T0.4
    • 99 shown on diagram
    $4.99
  • 29 O RING

    O RING

    • Part No. 04811-10700
    • 1 shown on diagram
    $2.49
  • 30

    COVER, BEARING

    • Part No. T4620-21791
    • 1 shown on diagram
    $23.99
  • 31 Bolt With Washer, M8 P1.25 x 28mm

    Bolt With Washer, M8 P1.25 x 28mm

    • Part No. 01123-50828
    • 4 shown on diagram
    $2.49
  • 32

    BEARING, NEEDLE

    • Part No. T4682-46151
    • K32X39X16
    • 2 shown on diagram
    $32.99
