CLUTCH GROUP - D701-T295A

Kioti TRACTOR | DK Series | DK754C

  • 1

    CLUTCH DISK ASSY V

    • Part No. T4887-14301
    • Applied Dates Up to 2007-03-18
    • *multiple options for # 1
    • 1 shown on diagram
    $1,024.99
  • 1

    CLUTCH DISK ASS`Y v

    • Part No. T5189-14301
    • Compatibility No Interchange
    • Applied Dates 2007-03-19 to 2009-02-24
    • Serial No. Up to JH2400042
    • *multiple options for # 1
    • 1 shown on diagram
    $899.99
  • 1 CLUTCH DISK ASSY V

    CLUTCH DISK ASSY V

    • Part No. T5189-14302
    • Compatibility Interchngable
    • Applied Dates 2009-02-25 and up
    • Serial No. JH2400043 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $1,274.99
  • 2

    CLUTCH COVER ASSY V

    • Part No. T4887-14501
    • Applied Dates Up to 2007-03-18
    • *multiple options for # 2
    • 1 shown on diagram
    $584.99
  • 2

    CLUTCH COVER ASS Y V

    • Part No. T5189-14501
    • Compatibility No Interchange
    • Applied Dates 2007-03-19 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $1,059.99
  • 3

    STUD

    • Part No. 13951-9155-2
    • 2 shown on diagram
    $2.49
  • 4 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 5 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 6

    Bolt With Washer, M8 P1.25 x 18mm

    • Part No. 01123-50818
    • M8XP1.25
    • 6 shown on diagram
    $2.49
  • 7

    STUD

    • Part No. T4850-14211
    • 2 shown on diagram
    $9.49
  • 8

    NUT

    • Part No. T4240-14081
    • Applied Dates Up to 2009-01-09
    • Serial No. Up to KH2400003
    • *multiple options for # 8
    • 2 shown on diagram
    $4.99
  • 8 Nut M12 P1.25

    Nut M12 P1.25

    • Part No. 02176-50120
    • Compatibility Call for compatibility
    • Applied Dates 2009-01-10 and up
    • Serial No. LH2400001 and up
    • M12XP1.25
    • *multiple options for # 8
    • 2 shown on diagram
    $1.49
  • 9 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • Applied Dates 2008-04-17 and up
    • M12
    • 2 shown on diagram
    $0.95

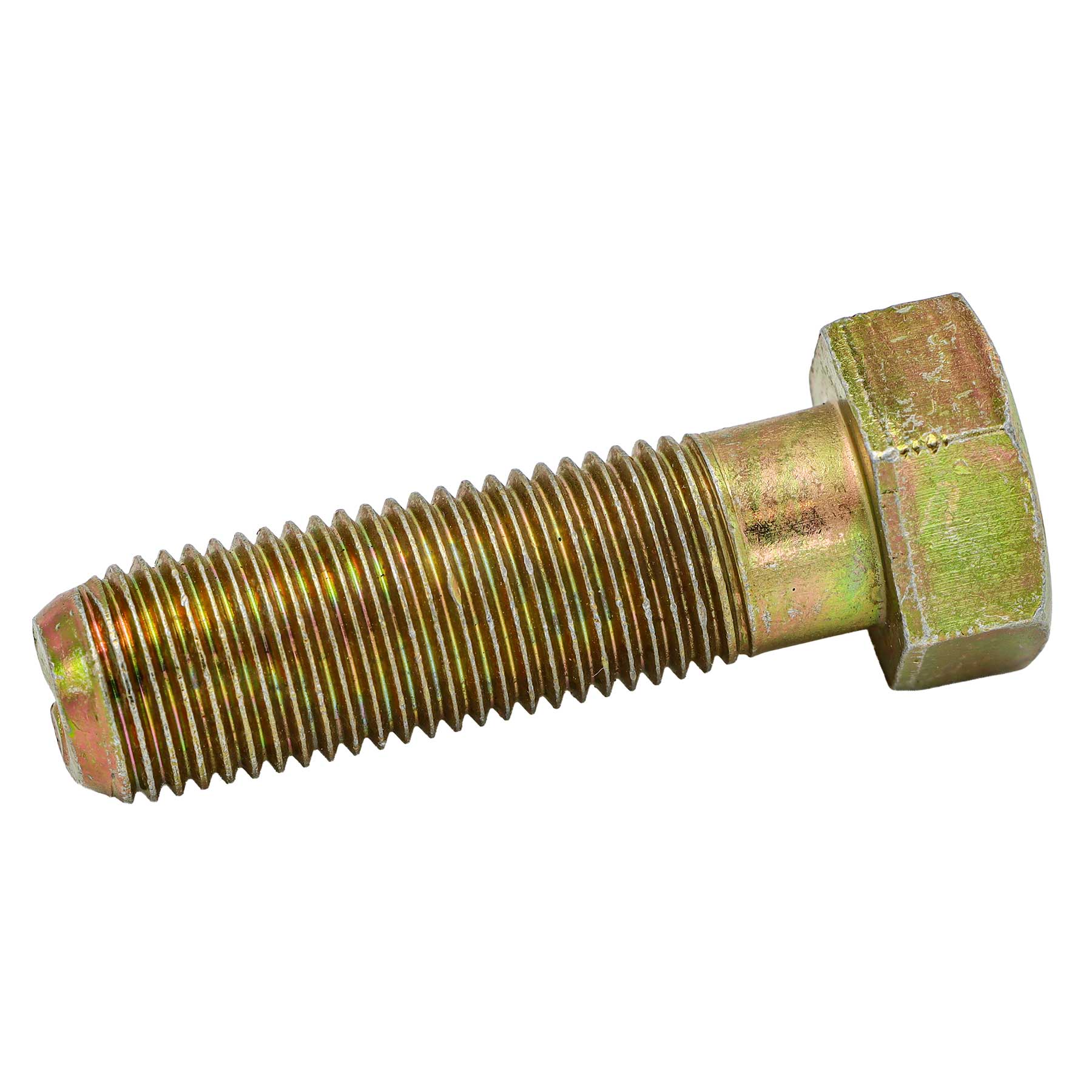

  • 10 BOLT M12P1.25×40 v, Replaced by 01177-51240

    BOLT M12P1.25×40 v, Replaced by 01177-51240

    • Part No. 01176-51240
    • Applied Dates Up to 2008-04-16
    • Serial No. Up to HH2400018
    • M12P1.25*40
    • *multiple options for # 10
    • 1 shown on diagram
    $4.99
  • 10 BOLT M12P1.25×40 v

    BOLT M12P1.25×40 v

    • Part No. 01177-51240
    • Compatibility Interchngable
    • Applied Dates 2008-04-17 and up
    • M12XP1.25(9T/??
    • *multiple options for # 10
    • 1 shown on diagram
    $2.99
  • 11

    BOLT

    • Part No. 01176-51250
    • Applied Dates 2005-01-25 to 2008-04-16
    • *multiple options for # 11
    • 1 shown on diagram
    $5.49
  • 11

    BOLT

    • Part No. 01177-51250
    • Compatibility Interchngable
    • Applied Dates 2008-04-17 and up
    • Serial No. HH2400001 and up
    • M12XP1.25(9T)
    • *multiple options for # 11
    • 1 shown on diagram
    $3.99
  • 12

    BOLT

    • Part No. 01176-51265
    • Applied Dates Up to 2008-04-16
    • M12X1.25
    • *multiple options for # 12
    • 5 shown on diagram
    $5.99
  • 12

    BOLT

    • Part No. 01177-51265
    • Compatibility Interchngable
    • Applied Dates 2008-04-17 and up
    • Serial No. HH2400001 and up
    • M12XP1.25
    • *multiple options for # 12
    • 5 shown on diagram
    $4.99
  • 13

    BOLT

    • Part No. 01176-51275
    • Applied Dates Up to 2008-04-16
    • M12*1.25
    • *multiple options for # 13
    • 4 shown on diagram
    $5.99
  • 13

    BOLT

    • Part No. 01177-51275
    • Compatibility Interchngable
    • Applied Dates 2008-04-17 and up
    • M12XP1.25(9T/??
    • *multiple options for # 13
    • 4 shown on diagram
    $4.49
  • 14

    STUD V

    • Part No. 01574-51250
    • 2 shown on diagram
    $6.49
  • 15 Nut M12 P1.25

    Nut M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
