FRONT WHEEL DRIVE SHAFT GROUP - D652-T210A

Kioti TRACTOR | DK Series | DK754C

  • 1 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • Applied Dates 2011-07-13 and up
    • DIA30
    • 1 shown on diagram
    $29.99
  • 2

    GEAR, 37T

    • Part No. T4810-24561
    • 1 shown on diagram
    $184.99
  • 3

    SHAFT 1, FRONT WHEEL DRIVE v

    • Part No. T4880-24581
    • 1 shown on diagram
    $199.99
  • 4

    DISK, PACKING BRAKE

    • Part No. T4887-27511
    • 3 shown on diagram
    $54.99
  • 5 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • Applied Dates Up to 2011-05-01
    • DIA35
    • 1 shown on diagram
    $28.99
  • 6

    STOPPER, BEARING

    • Part No. T4810-25801
    • T2.3
    • 1 shown on diagram
    $8.99
  • 7 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 8

    COUPLING

    • Part No. T4810-24662
    • 1 shown on diagram
    $53.99
  • 9

    PIN, SPRING

    • Part No. 05411-00838
    • 1 shown on diagram
    $1.49
  • 10

    SHAFT, 4WD v, Replaced by T5189-46202

    • Part No. T5189-46201
    • Applied Dates Up to 2008-07-14
    • *multiple options for # 10
    • 1 shown on diagram
    $0.00
  • 10

    SHAFT, 4WD

    • Part No. T5189-46202
    • Compatibility Interchngable
    • Applied Dates 2008-07-14 and up
    • Serial No. Up to JH2400015
    • *multiple options for # 10
    • 1 shown on diagram
    $394.99
  • 10

    4WD SHAFT, Replaced by T5189-46202

    • Part No. T5177-46201
    • Compatibility Call for compatibility
    • Applied Dates 2008-07-14 and up
    • Serial No. JH2400016 and up
    • *multiple options for # 10
    • 1 shown on diagram
    $208.77
  • 11

    RING, SEAL

    • Part No. T4710-21931
    • 2 shown on diagram
    $44.99
  • 12

    BRACKET, Replaced by T4880-46122

    • Part No. T5189-46121
    • 1 shown on diagram
    $0.00
  • 13

    PLATE, PRESSURE

    • Part No. T4710-23322
    • 2 shown on diagram
    $15.99
  • 14

    Bolt w/Lock Washer M12 P1.25x70mm, Replaced by 01173-51270

    • Part No. 01133-51270
    • M12XP1.25
    • 1 shown on diagram
    $0.00
  • 15 BEARING, BALL 35x80x21

    BEARING, BALL 35x80x21

    • Part No. 08101-06307
    • DIA35
    • 1 shown on diagram
    $41.99
  • 16

    CIR CLIP, EXTERNAL

    • Part No. T4810-22852
    • Applied Dates 2011-07-13 and up
    • Serial No. Up to JH2400015
    • *multiple options for # 16
    • 1 shown on diagram
    $12.99
  • 16

    CIR-CLIP

    • Part No. T2615-25691
    • Compatibility Call for compatibility
    • Applied Dates 2008-10-01 and up
    • Serial No. JH2400016 and up
    • *multiple options for # 16
    • 1 shown on diagram
    $11.99
  • 17

    CLUTCH ASSY, 4WD, Replaced by T5189-24404

    • Part No. T5189-24401
    • Applied Dates Up to 2008-07-09
    • *multiple options for # 17
    • 1 shown on diagram
    $0.00
  • 17

    CLUTCH ASSY, 4WD, Replaced by T5189-24404

    • Part No. T5189-24402
    • Compatibility Interchngable
    • Applied Dates Up to 2008-12-19
    • *multiple options for # 17
    • 1 shown on diagram
    $0.00
  • 17

    ASSY CLUTCH, 4WD dnr v, Replaced by T5189-24404

    • Part No. T5189-24403
    • Compatibility Interchngable
    • Applied Dates 2008-08-05 to 2008-09-30
    • Serial No. Up to JH2400015
    • *multiple options for # 17
    • 1 shown on diagram
    $0.00
  • 17

    CLUTCH DOG

    • Part No. T5177-24401
    • Compatibility Call for compatibility
    • Applied Dates 2008-07-09 and up
    • Serial No. JH2400016 and up
    • *multiple options for # 17
    • 1 shown on diagram
    $139.99
  • 18

    BODY, CLUTCH

    • Part No. T5189-24411
    • Applied Dates Up to 2008-12-19
    • 1 shown on diagram
    $354.99
  • 19

    PISTON

    • Part No. T5189-24421
    • Applied Dates Up to 2008-12-19
    • 1 shown on diagram
    $99.99
  • 20

    RING, PISTON

    • Part No. T4880-24431
    • Applied Dates Up to 2008-12-19
    • *multiple options for # 20
    • 1 shown on diagram
    $0.00
  • 20

    ASSY RING, PISTON

    • Part No. T4720-21931
    • Compatibility Interchngable
    • Applied Dates Up to 2008-12-19
    • *multiple options for # 20
    • 1 shown on diagram
    $19.99
  • 21 O RING

    O RING

    • Part No. 04811-00460
    • Applied Dates Up to 2008-12-19
    • 1 shown on diagram
    $1.29
  • 22

    SPRING

    • Part No. T4710-24451
    • Applied Dates 2008-07-09 and up
    • 1 shown on diagram
    $22.99
  • 23

    SEAT, SPRING

    • Part No. T5189-24461
    • Applied Dates 2008-07-09 and up
    • 1 shown on diagram
    $25.99
  • 24

    DISK, CLUTCH v, Replaced by T4920-22772

    • Part No. T4710-24471
    • Applied Dates Up to 2008-07-09
    • *multiple options for # 24
    • 6 shown on diagram
    $31.05
  • 24

    CLUTCH DISC v

    • Part No. T4880-24471
    • Compatibility Interchngable
    • Applied Dates 2008-07-09 and up
    • *multiple options for # 24
    • 6 shown on diagram
    $58.99
  • 25

    CLUTCH PLATE v

    • Part No. T4710-24481
    • Applied Dates 2008-07-09 and up
    • *multiple options for # 25
    • 6 shown on diagram
    $25.99
  • 25

    DISK, CLUTCH v

    • Part No. T4880-24481
    • Compatibility Interchngable
    • Applied Dates 2008-07-09 and up
    • *multiple options for # 25
    • 6 shown on diagram
    $32.99
  • 26

    PLATE, PRESSURE FR RR

    • Part No. T4710-24491
    • Applied Dates Up to 2008-07-09
    • 1 shown on diagram
    $0.00
  • 27

    CIR CLIP, INTERNAL

    • Part No. T4710-24511
    • Applied Dates 2008-07-09 and up
    • 1 shown on diagram
    $42.99
  • 28

    Snap Ring, External, 50mm

    • Part No. 04612-00500
    • Applied Dates Up to 2008-07-09
    • 1 shown on diagram
    $3.49
  • 29

    HUB, SPLINE

    • Part No. T5189-46141
    • Applied Dates Up to 2008-12-31
    • Serial No. Up to JH2400015
    • *multiple options for # 29
    • 1 shown on diagram
    $184.99
  • 29

    DOG CLUTCH HUB

    • Part No. T5177-46141
    • Compatibility Call for compatibility
    • Applied Dates 2008-10-01 and up
    • Serial No. JH2400016 and up
    • *multiple options for # 29
    • 1 shown on diagram
    $124.99
  • 30 BEARING, BALL 30x55x13

    BEARING, BALL 30x55x13

    • Part No. 08101-06006
    • DIA30
    • 1 shown on diagram
    $23.99
  • 31

    SHAFT 2, FRONT WHEEL DRIVE v

    • Part No. T5189-24632
    • Applied Dates 2007-07-16 and up
    • *multiple options for # 31
    • 1 shown on diagram
    $349.99
  • 31

    SHAFT 2, FRONT DRIVE v, Replaced by T5189-24632

    • Part No. T5189-24633
    • Compatibility Old replaces new
    • Applied Dates 2007-07-16 and up
    • *multiple options for # 31
    • 1 shown on diagram
    $0.00
  • 31

    SHAFT 2, FRONT DRIVE

    • Part No. T5189-24634
    • Compatibility Interchngable
    • Applied Dates 2007-07-16 and up
    • *multiple options for # 31
    • 1 shown on diagram
    $0.00
  • 31

    SHAFT 2, FRONT DRIVE

    • Part No. T5189-24635
    • Compatibility New Replaces Old
    • *multiple options for # 31
    • 1 shown on diagram
    $259.99
  • 32 Snap Ring, External, 30mm

    Snap Ring, External, 30mm

    • Part No. 04612-00300
    • DIA30
    • *multiple options for # 32
    • 3 shown on diagram
    $1.59
  • 32 Snap Ring, External, 30mm

    Snap Ring, External, 30mm

    • Part No. 04612-00300
    • Compatibility Call for compatibility
    • DIA30
    • *multiple options for # 32
    • 2 shown on diagram
    $1.59
  • 33 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00620
    • DIA62
    • 1 shown on diagram
    $3.99
  • 34 Ball Bearing 30x62x16

    Ball Bearing 30x62x16

    • Part No. 08101-06206
    • #6206
    • 1 shown on diagram
    $19.99
  • 35

    SEAL, OIL v

    • Part No. T4815-14771
    • Applied Dates Up to 2008-08-27
    • *multiple options for # 35
    • 2 shown on diagram
    $22.99

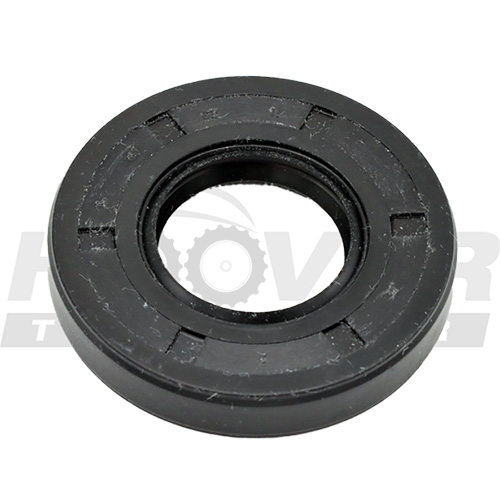

  • 35 SEAL, OIL

    SEAL, OIL

    • Part No. T4815-14772
    • Compatibility Interchngable
    • Applied Dates 2008-08-27 and up
    • *multiple options for # 35
    • 2 shown on diagram
    $24.99
  • 36

    BEARING, BALL

    • Part No. T4810-25541
    • 6206DD
    • 1 shown on diagram
    $29.99
  • 37 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00620
    • DIA62
    • 3 shown on diagram
    $3.99
  • 38

    COLLAR, THRUST

    • Part No. T4810-24541
    • 2 shown on diagram
    $33.99
  • 39

    BEARING, NEEDLE

    • Part No. 08823-54220
    • KOYO VS35/20
    • 2 shown on diagram
    $29.99
  • 40

    GEAR, 25T, Replaced by T4810-24522

    • Part No. T4810-24521
    • Applied Dates Up to 2007-12-31
    • *multiple options for # 40
    • 1 shown on diagram
    $80.23
  • 40

    GEAR, 25T

    • Part No. T4810-24522
    • Compatibility Call for compatibility
    • Applied Dates 2008-12-19 and up
    • *multiple options for # 40
    • 1 shown on diagram
    $154.99
  • 41

    SHAFT, FRONT WHEEL DRIVE

    • Part No. T4810-24531
    • 1 shown on diagram
    $98.99
  • 42

    BOLT, SET

    • Part No. T4810-22601
    • 1 shown on diagram
    $9.99
  • 43 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 44

    TUBE, CONNECTING

    • Part No. T4810-45713
    • 1 shown on diagram
    $15.99
  • 45 O RING

    O RING

    • Part No. 04811-00090
    • DIA8.8
    • 2 shown on diagram
    $0.73
  • 46

    COVER

    • Part No. T5189-46301
    • Applied Dates 2007-04-25 and up
    • 1 shown on diagram
    $149.99
  • 47 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 4 shown on diagram
    $1.99
  • 48 O RING

    O RING

    • Part No. 04811-00340
    • P34
    • 2 shown on diagram
    $1.79
  • 49

    Bolt w/Lock Washer M12 P1.25x80mm

    • Part No. 01133-51280
    • M12XP1.25
    • 2 shown on diagram
    $5.99
  • 50 Ball Bearing 30x62x16

    Ball Bearing 30x62x16

    • Part No. 08101-06206
    • #6206
    • 1 shown on diagram
    $19.99
  • 51 O RING

    O RING

    • Part No. 04811-00340
    • Applied Dates 2008-10-01 and up
    • P34
    • 1 shown on diagram
    $1.79
  • 52

    O RING

    • Part No. 04811-06600
    • Applied Dates 2008-10-01 and up
    • 1 shown on diagram
    $1.49
  • 53

    SPRING

    • Part No. T4710-24451
    • Applied Dates 2008-07-09 and up
    • 1 shown on diagram
    $22.99
  • 54

    SPACER

    • Part No. T5177-24421
    • Applied Dates 2008-10-01 and up
    • 1 shown on diagram
    $31.99
  • 55

    SPACER

    • Part No. TG32-0356A
    • 1 shown on diagram
    $13.99
