FRONT DIFF GEAR CASE GROUP - D652-T255A

Kioti TRACTOR | DK Series | DK754C

  • 1

    SUPPORT, FRONT AXLE v

    • Part No. T4930-42154
    • *multiple options for # 1
    • 1 shown on diagram
    $2,579.99
  • 1

    SUPPORT, FRONT AXLE obs v

    • Part No. T4930-42155
    • Compatibility Interchngable
    • *multiple options for # 1
    • 1 shown on diagram
    $1,899.99
  • 2

    DIFF. GEAR CASE ASSY, Replaced by T4930-42304

    • Part No. T4930-42303
    • 1 shown on diagram
    $0.00
  • 3

    PIN, STRAIGHT

    • Part No. 05012-00816
    • DIA8XL16
    • 2 shown on diagram
    $1.59
  • 4 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 2 shown on diagram
    $0.95
  • 5

    BOLT

    • Part No. 01176-51260
    • M12*1.25*60
    • 2 shown on diagram
    $5.49
  • 6 SHIM 0.1

    SHIM 0.1

    • Part No. T4520-42351
    • T0.1
    • 1 shown on diagram
    $3.99
  • 7

    SHIM 0.2

    • Part No. T4520-42361
    • T0.2
    • 1 shown on diagram
    $2.99
  • 8

    SHIM 0.4

    • Part No. T4520-42371
    • T0.4
    • 1 shown on diagram
    $4.99

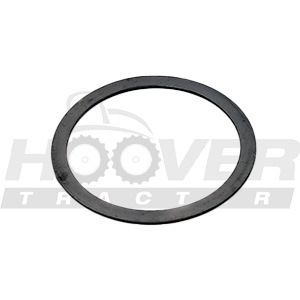

  • 9 SHIM 1.6, Replaced by T4520-42361

    SHIM 1.6, Replaced by T4520-42361

    • Part No. T4520-42381
    • T1.6
    • 1 shown on diagram
    $3.49
  • 10

    BOLT, UBS v

    • Part No. T4520-43271
    • *multiple options for # 10
    • 1 shown on diagram
    $6.49
  • 10

    BOLT, UBS

    • Part No. T4520-43272
    • Compatibility Interchngable
    • *multiple options for # 10
    • 1 shown on diagram
    $0.00
  • 11

    BOLT, UBS

    • Part No. T4520-43261
    • *multiple options for # 11
    • 1 shown on diagram
    $6.99
  • 11

    BOLT, UBS

    • Part No. T4520-43262
    • Compatibility Interchngable
    • *multiple options for # 11
    • 1 shown on diagram
    $0.00
  • 12

    PIN v

    • Part No. T4520-43191
    • 2 shown on diagram
    $18.99
  • 13

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 11 shown on diagram
    $0.90
  • 14

    Bolt M14 P1.50x45mm

    • Part No. 01173-51445
    • M14XP1.5
    • 10 shown on diagram
    $7.99
  • 15

    STUD v

    • Part No. 01517-51440
    • 1 shown on diagram
    $5.99
  • 16 Nut M14 P1.50

    Nut M14 P1.50

    • Part No. 02176-50140
    • M14XP1.5
    • 1 shown on diagram
    $1.79
  • 17

    WASHER, SEAL

    • Part No. 04717-02000
    • 1 shown on diagram
    $2.99
  • 18

    PLUG

    • Part No. 06331-35020
    • 1 shown on diagram
    $9.49
  • 19

    TUBE

    • Part No. T4682-43871
    • OD17.3*T3.2
    • 1 shown on diagram
    $19.99
  • 20

    PULG v

    • Part No. T2305-43882
    • *multiple options for # 20
    • 1 shown on diagram
    $16.99
  • 20

    PLUG v

    • Part No. T2305-43883
    • Compatibility Interchngable
    • Applied Dates 2012-04-01 and up
    • Serial No. MH2400001 and up
    • *multiple options for # 20
    • 1 shown on diagram
    $7.49
  • 21 Plug M10 P1.25

    Plug M10 P1.25

    • Part No. 06331-45010
    • M10XP1.25
    • 1 shown on diagram
    $4.49
  • 22 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
