BEVEL GEAR CASE GROUP - DK752-T275A

Kioti TRACTOR | DK Series | DK754C

  • 1

    CASE, BEVEL GEAR, Replaced by T4930-43313

    • Part No. T4930-43312
    • Applied Dates Up to 2016-12-31
    • *multiple options for # 1
    • 2 shown on diagram
    $0.00
  • 1

    CASE, BEVEL

    • Part No. T4930-43313
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 2 shown on diagram
    $544.99
  • 2 O RING

    O RING

    • Part No. 04811-51000
    • 2 shown on diagram
    $2.49
  • 3

    BOLT, UBS dnr v

    • Part No. T4520-43281
    • 4 shown on diagram
    $4.99
  • 4

    PIN v

    • Part No. T4520-43191
    • 4 shown on diagram
    $18.99
  • 5

    Bolt M14 P1.50x40mm

    • Part No. 01173-51440
    • M14XP1.5
    • 12 shown on diagram
    $3.49
  • 6

    STUD v

    • Part No. 01517-51440
    • 4 shown on diagram
    $5.99
  • 7 Nut M14 P1.50

    Nut M14 P1.50

    • Part No. 02176-50140
    • M14XP1.5
    • 4 shown on diagram
    $1.79
  • 8

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 16 shown on diagram
    $0.90
  • 9

    HOLDER, BEARING dnr v

    • Part No. T4520-43323
    • Applied Dates Up to 2007-12-31
    • *multiple options for # 9
    • 2 shown on diagram
    $129.99
  • 9

    HOLDER, BEARING

    • Part No. T4520-43324
    • Compatibility Interchngable
    • *multiple options for # 9
    • 2 shown on diagram
    $139.99
  • 9

    HOLDER, BEARING

    • Part No. T4520-43325
    • Compatibility Interchngable
    • *multiple options for # 9
    • 2 shown on diagram
    $99.99
  • 10 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 22 shown on diagram
    $1.99
  • 11

    SUPPORT,FRONT AXLE v

    • Part No. T4520-43345
    • 2 shown on diagram
    $249.99

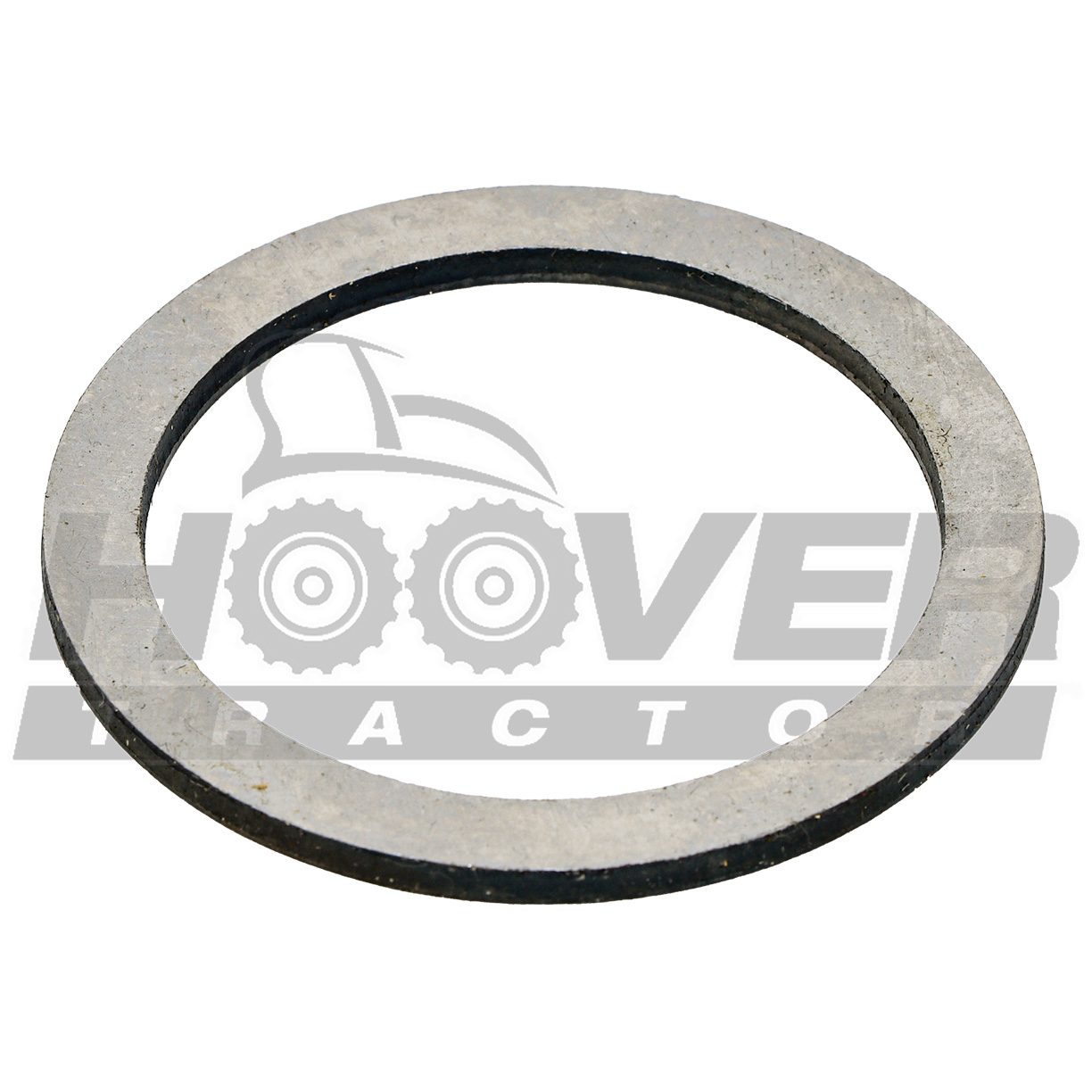

  • 12 COLLAR, THRUST

    COLLAR, THRUST

    • Part No. T4520-43331
    • 3.0mm
    • 2 shown on diagram
    $18.99

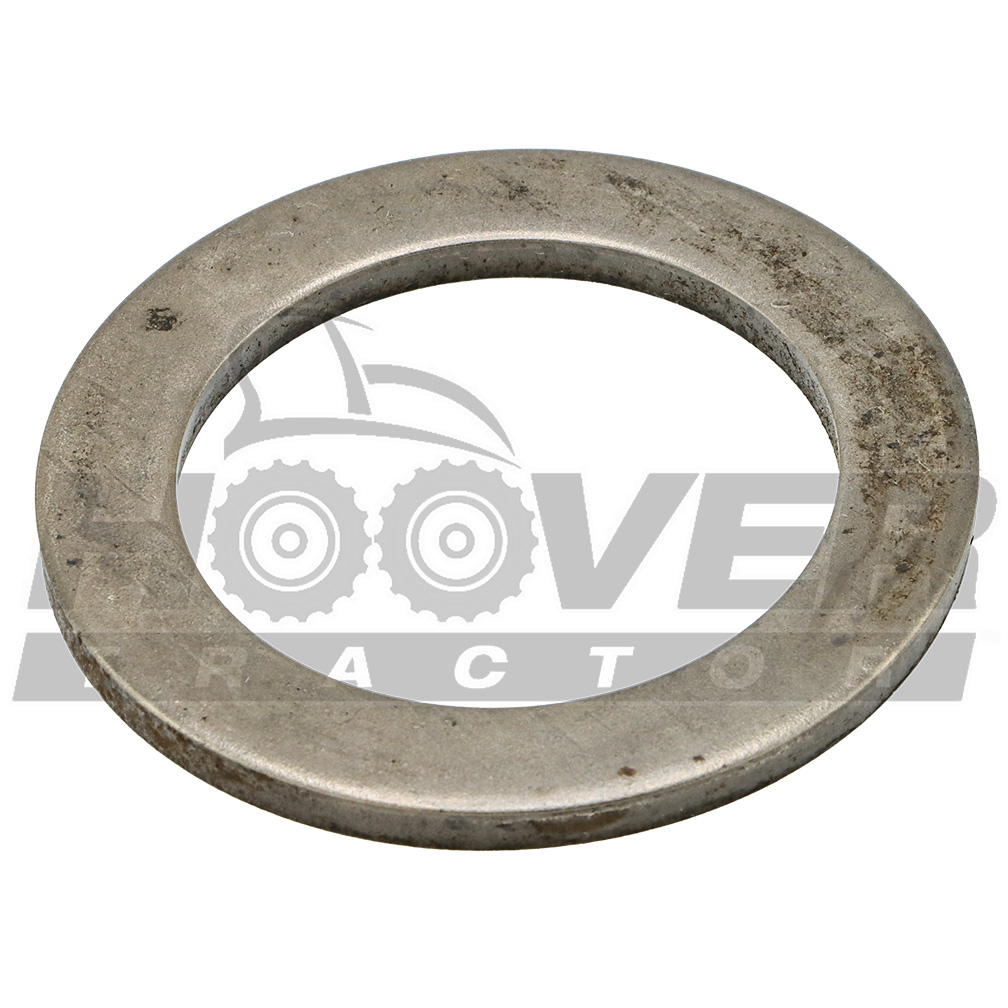

  • 13 COLLAR, THRUST

    COLLAR, THRUST

    • Part No. T4815-43331
    • 3.2mm
    • 2 shown on diagram
    $26.99
  • 14 Grease Zerk 1/8″ BSPT

    Grease Zerk 1/8″ BSPT

    • Part No. 06611-15010
    • 2 shown on diagram
    $2.49
  • 15

    BUSHING

    • Part No. T4520-43351
    • 65-30DX
    • 2 shown on diagram
    $74.99
  • 16

    SEAL, OIL

    • Part No. T4520-43361
    • 2 shown on diagram
    $12.99
  • 17

    BOLT 01176-51430

    • Part No. 01176-51430
    • 4 shown on diagram
    $5.99
  • 18

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 4 shown on diagram
    $0.90
  • 19

    BOLT, UBS v

    • Part No. T4520-43271
    • *multiple options for # 19
    • 4 shown on diagram
    $6.49
  • 19

    BOLT, UBS

    • Part No. T4520-43272
    • Compatibility New Replaces Old
    • *multiple options for # 19
    • 4 shown on diagram
    $0.00
  • 20

    PIN v

    • Part No. T4520-43191
    • 4 shown on diagram
    $18.99
  • 21 Floating Seal Assy, 61mm ID

    Floating Seal Assy, 61mm ID

    • Part No. T4818-43451
    • 2 shown on diagram
    $77.99
  • 22

    RING, SEAL, Replaced by T4818-43451

    • Part No. T4818-43451001
    • 4 shown on diagram
    $0.00
  • 23

    O-Ring, Replaced by T4818-43451

    • Part No. T4818-43451002
    • 4 shown on diagram
    $0.00
