FRONT AXLE GROUP - D652-T285A - JH2400001 and up

GEAR, BEVEL 34T v

• Part No. T4520-43722
• Applied Dates Up to 2010-12-31
• *multiple options for # 1
• 2 shown on diagram

GEAR, BEVEL 34T v

• Part No. T4520-43723
• Compatibility Interchngable
• Applied Dates Up to 2006-12-31
• *multiple options for # 1
• 2 shown on diagram

BEARING, BALL

• Part No. T4520-42281
• Applied Dates Up to 2006-12-31
• TBM306
• 2 shown on diagram

PLANETARY GEAR ASS`Y v

• Part No. T4520-44203
• Applied Dates Up to 2006-12-31
• *multiple options for # 3
• 2 shown on diagram

ASSY PLANETARY GEAR v

• Part No. T4520-44204
• Compatibility Interchngable
• Applied Dates Up to 2006-12-31
• *multiple options for # 3
• 2 shown on diagram

SUPPORT, PLANETARY GEAR v

• Part No. T4520-44213
• Applied Dates Up to 2006-12-31
• 2 shown on diagram

BEARING, BALL

• Part No. T4520-43731
• Applied Dates Up to 2006-12-31
• #16013
• 2 shown on diagram

GEAR, PLANETARY 19T

• Part No. T4520-44221
• Applied Dates Up to 2010-12-31
• *multiple options for # 6
• 6 shown on diagram

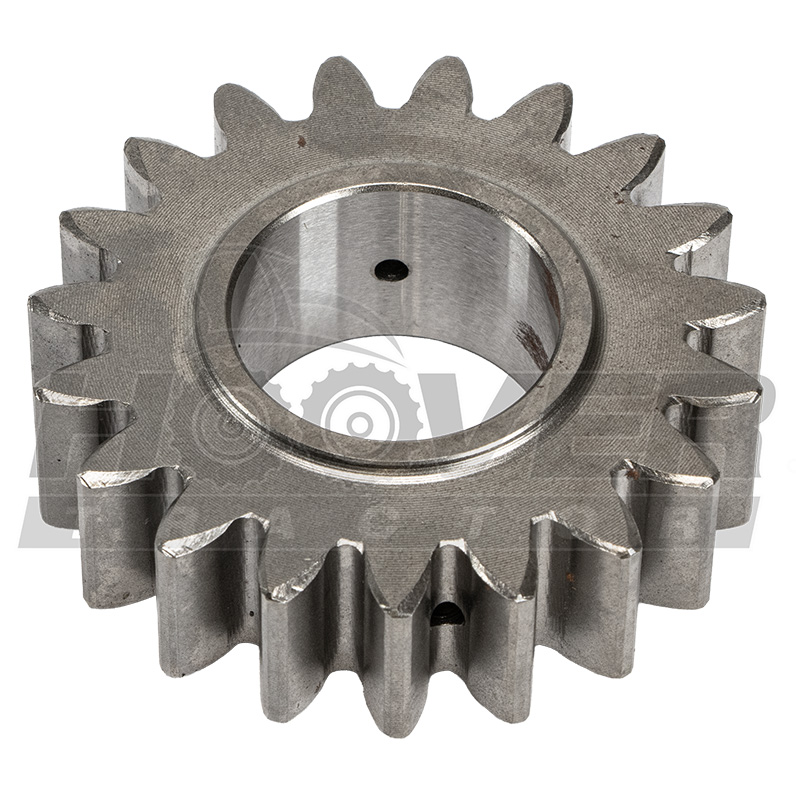

GEAR 19,PLANETART

• Part No. T4520-44222
• Compatibility Interchngable
• Applied Dates Up to 2006-12-31
• *multiple options for # 6
• 3 shown on diagram

COLLAR, THRUST v

• Part No. T4520-44232
• Applied Dates Up to 2006-12-31
• 12 shown on diagram

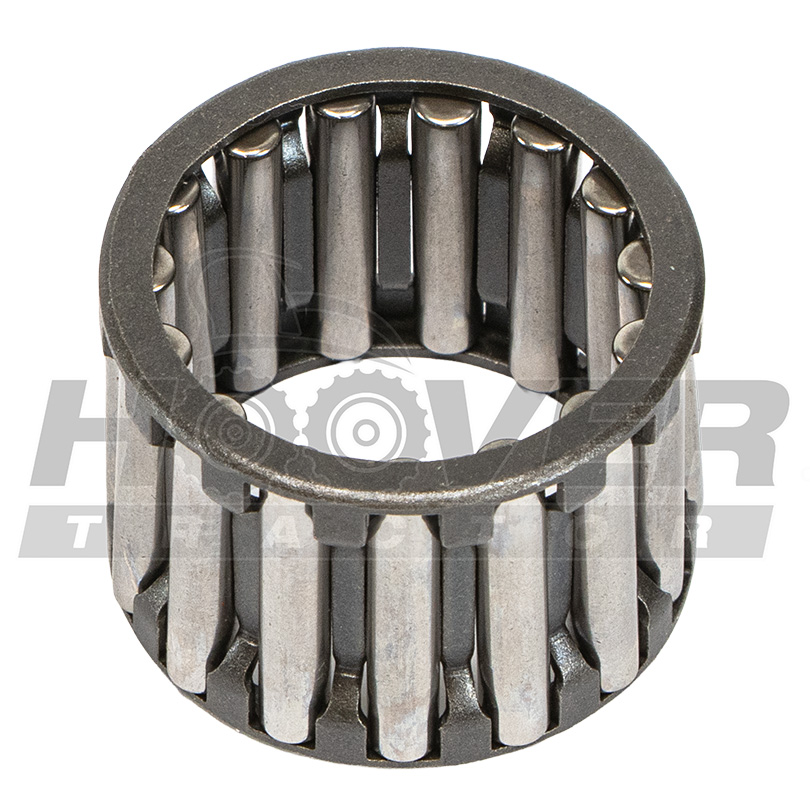

BEARING, NEEDLE

• Part No. T4520-44241
• Applied Dates Up to 2006-12-31
• KOYO 25R3324B-1
• 6 shown on diagram

SHAFT, PLANETARY GEAR

• Part No. T4520-44252
• Applied Dates Up to 2006-12-31
• 6 shown on diagram

PIN, SPRING

• Part No. 05411-00522
• Applied Dates Up to 2006-12-31
• 6 shown on diagram

GEAR 60,INTERNAL v

• Part No. T4520-44192
• Applied Dates Up to 2006-12-31
• 2 shown on diagram

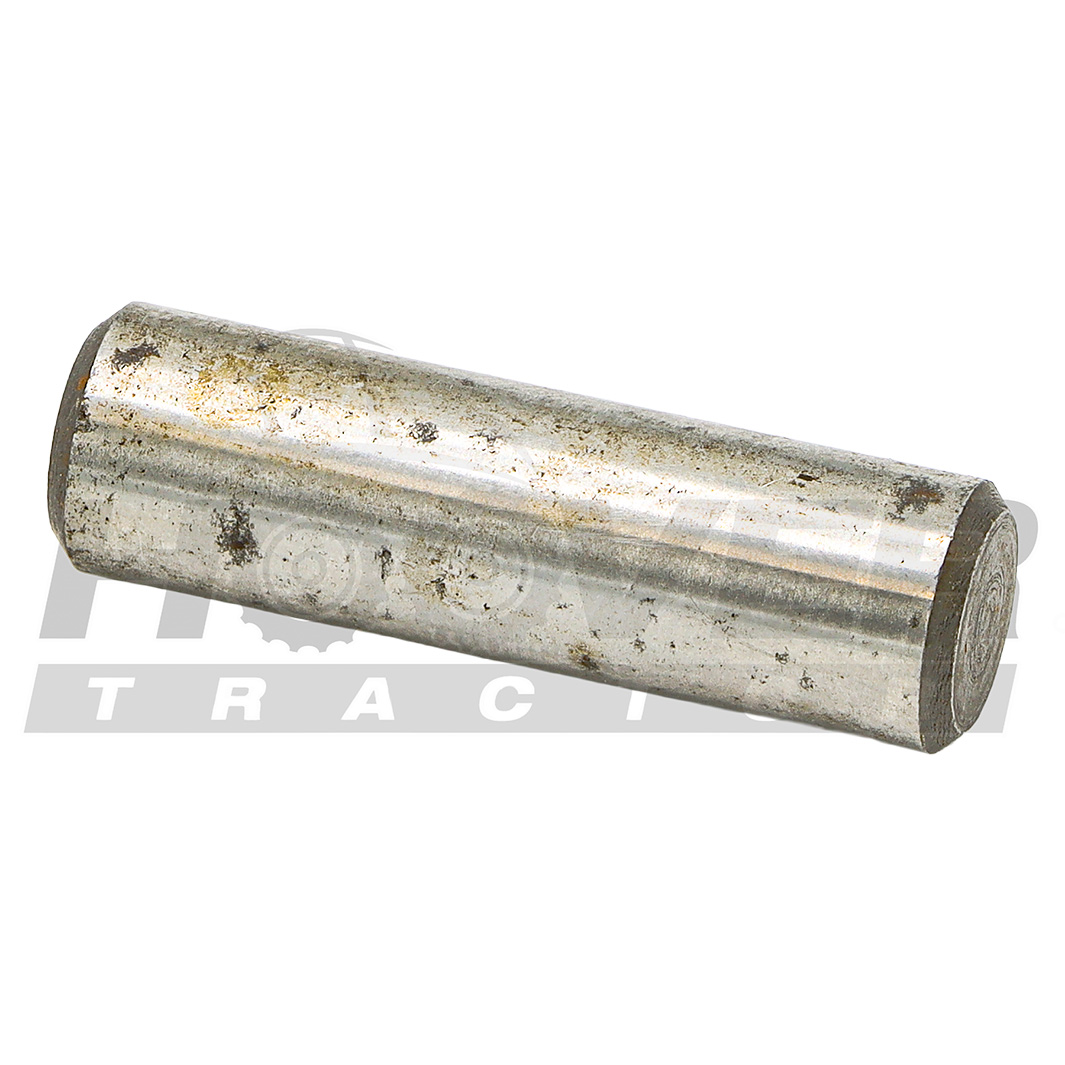

PIN, STRAIGHT

• Part No. T4520-44261
• Applied Dates Up to 2006-12-31
• 4 shown on diagram

CIR CLIP, EXTERNAL

• Part No. T4520-44281
• Applied Dates Up to 2006-12-31
• 2 shown on diagram

• Part No. T4930-43711
• Applied Dates Up to 2014-12-31
• *multiple options for # 14
• 2 shown on diagram

AXLE, FRONT

• Part No. T4931-43711
• Compatibility Interchngable
• Applied Dates Up to 2006-12-31
• *multiple options for # 14
• 2 shown on diagram

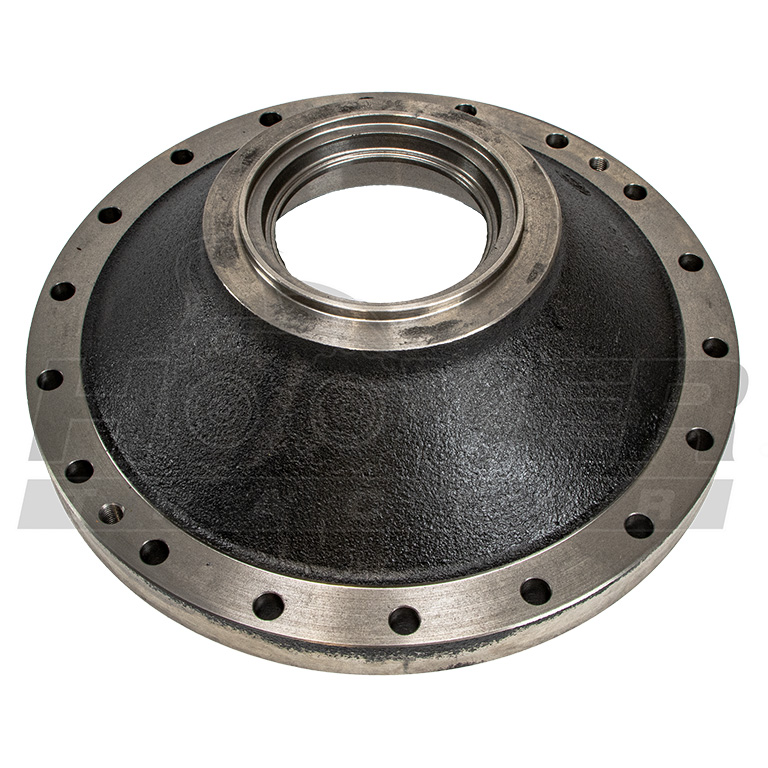

COVER, FRONT AXLE

• Part No. T4520-43624
• Applied Dates Up to 2017-12-31
• *multiple options for # 15
• 2 shown on diagram

COVER, FRONT AXLE v, Replaced by T4520-43624

• Part No. T4520-43625
• Compatibility New Replaces Old
• Applied Dates Up to 2017-12-31
• *multiple options for # 15
• 2 shown on diagram

O RING

• Part No. T4520-44291
• Applied Dates Up to 2006-12-31
• 2 shown on diagram

Floating Seal Assy, 78mm ID

• Part No. T4520-43652
• Applied Dates Up to 2006-12-31
• 2 shown on diagram

RING, SEAL v (use T4520-43652)

• Part No. T4520-43662
• Applied Dates Up to 2006-12-31
• 2 shown on diagram

O RING v (use T4520-43652)

• Part No. T4520-43672
• Applied Dates Up to 2006-12-31
• 2 shown on diagram

BEARING, BALL

• Part No. 08101-06311
• Applied Dates Up to 2006-12-31
• #6311
• 2 shown on diagram

Bolt M10 P1.25x40mm

• Part No. 01173-51040
• Applied Dates Up to 2006-12-31
• M10,P1.25
• 36 shown on diagram

Lock Washer M10

• Part No. 04512-50100
• Applied Dates Up to 2006-12-31
• M10
• 36 shown on diagram

STUD

• Part No. 01517-51632
• Applied Dates Up to 2006-12-31
• M16*1.5*32
• 4 shown on diagram
