BRAKE ROD 3 GROUP - DK45CHSE-T690Z

Kioti TRACTOR | DK Series | DK50HSE

Diagram for BRAKE ROD 3 GROUP - DK45CHSE-T690Z

1

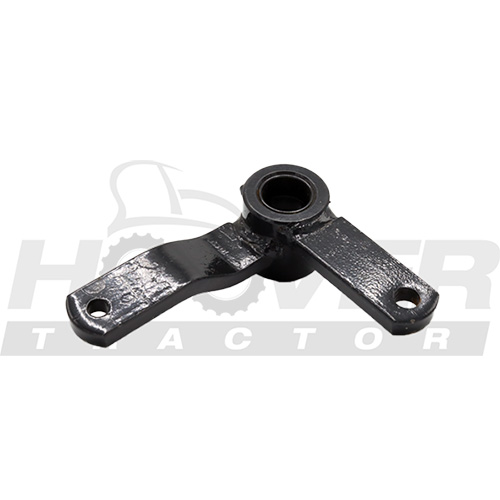

LEVER, BRAKE (LH), Replaced by T4125-55782BB
- Part No. T4125-55782
- 1 shown on diagram
$68.99

LEVER, BRAKE (LH), Replaced by T4125-55782BB quantity
2
BUSHING, DU
- Part No. 08511-02012
- MB2012DU
- 2 shown on diagram
$12.99

BUSHING, DU quantity
3
NIPPLE, GREASE M6 P1.0
- Part No. 06611-15675
- A-M6F
- 1 shown on diagram
$1.69

NIPPLE, GREASE M6 P1.0 quantity
4
LEVER(R), BRAKE, Replaced by T4125-55792BB
- Part No. T4125-55792
- 1 shown on diagram
$0.00

LEVER(R), BRAKE, Replaced by T4125-55792BB quantity
5
BUSHING, DU
- Part No. 08511-02012
- MB2012DU
- 2 shown on diagram
$12.99

BUSHING, DU quantity
6
NIPPLE, GREASE M6 P1.0
- Part No. 06611-15675
- A-M6F
- 1 shown on diagram
$1.69

NIPPLE, GREASE M6 P1.0 quantity
7
Flat Washer M20
- Part No. 04011-50200
- M20
- 2 shown on diagram
$1.59

Flat Washer M20 quantity
8
Snap Ring (04612-00200)
- Part No. 04612-00200
- DIA20
- 2 shown on diagram
$1.09

Snap Ring (04612-00200) quantity
