REAR AXLE GROUP - EX45H-T485A

Kioti TRACTOR | DK Series | DK50HSE

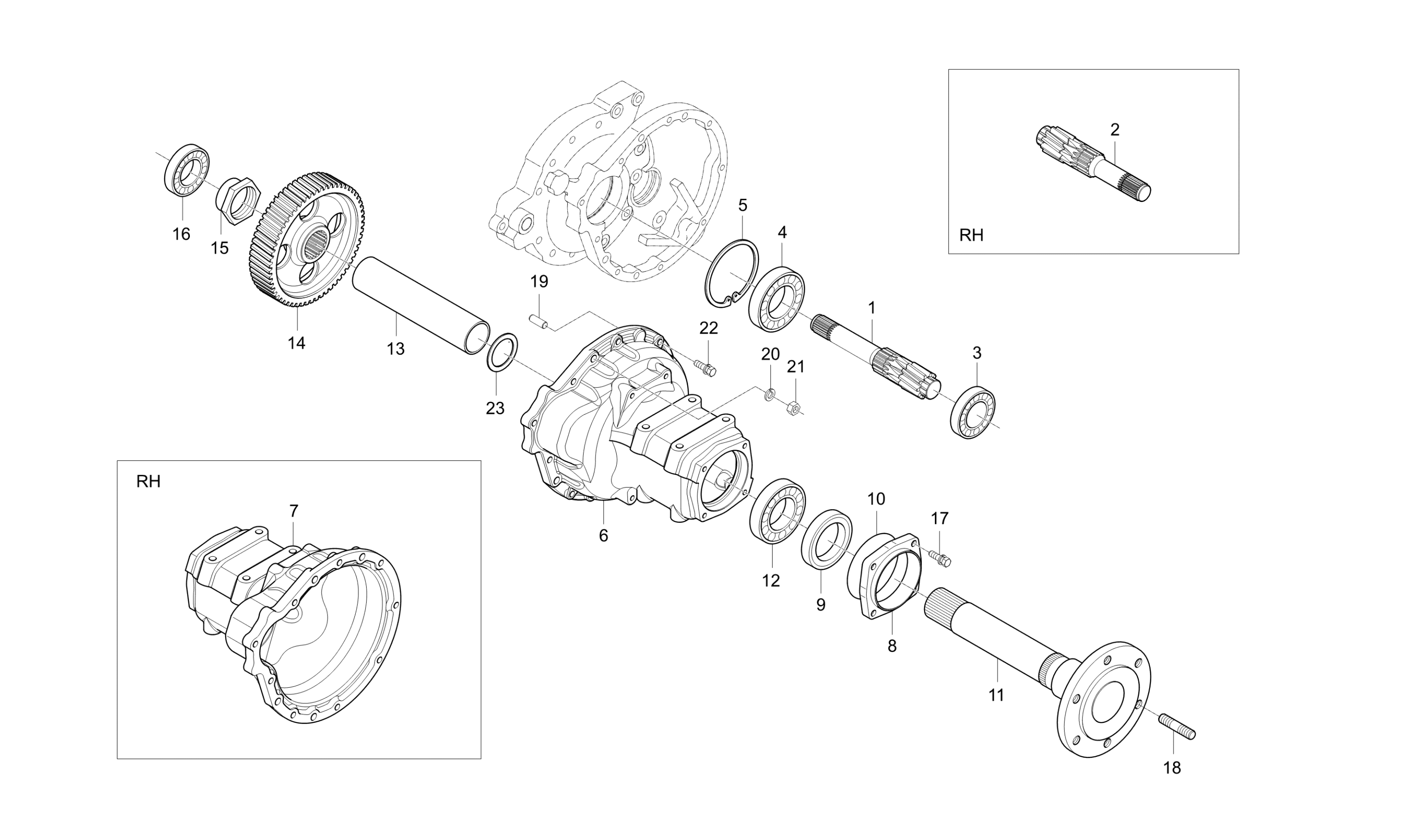

Diagram for REAR AXLE GROUP - EX45H-T485A
  • 1

    SHAFT, LH-GEAR11

    • Part No. T4125-26721
    • 1 shown on diagram
    $449.99
  • 2

    SHAFT, GEAR

    • Part No. T4125-26711
    • 1 shown on diagram
    $379.99
  • 3

    BEARING,BALL

    • Part No. 08100-00026
    • KOYO,M6307
    • 2 shown on diagram
    $56.99
  • 4 BALL BEARING #6309 45x100x25

    BALL BEARING #6309 45x100x25

    • Part No. 08101-06309
    • DIA45
    • 2 shown on diagram
    $34.99
  • 5

    RING,SNAP

    • Part No. 04611-01000
    • DIA100
    • 2 shown on diagram
    $13.99
  • 6

    CASE, REAR, Replaced by T4125-27312

    • Part No. T4125-27311
    • Applied Dates Up to 2009-04-03
    • *multiple options for # 6
    • 1 shown on diagram
    $0.00
  • 6

    CASE, REAR

    • Part No. T4125-27312
    • Compatibility Interchngable
    • Applied Dates 2009-04-04 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $799.99
  • 7

    CASE, REAR

    • Part No. T4125-27321
    • Applied Dates Up to 2009-04-03
    • *multiple options for # 7
    • 1 shown on diagram
    $549.99
  • 7

    CASE REAR

    • Part No. T4125-27322
    • Compatibility Interchngable
    • Applied Dates 2009-04-04 and up
    • *multiple options for # 7
    • 1 shown on diagram
    $794.99
  • 8

    COVER,REAR AXLE

    • Part No. T4682-27161
    • 2 shown on diagram
    $66.99

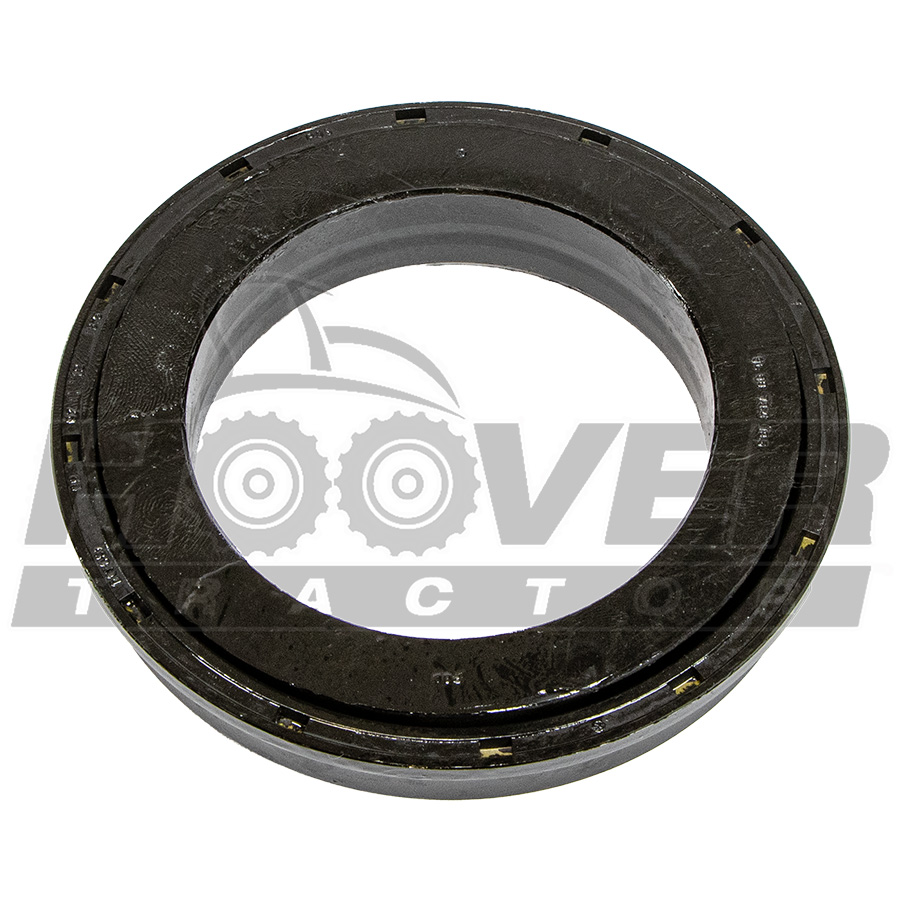

  • 9 SEAL, OIL

    SEAL, OIL

    • Part No. T4620-27191
    • Applied Dates Up to 2017-12-31
    • 2 shown on diagram
    $29.99

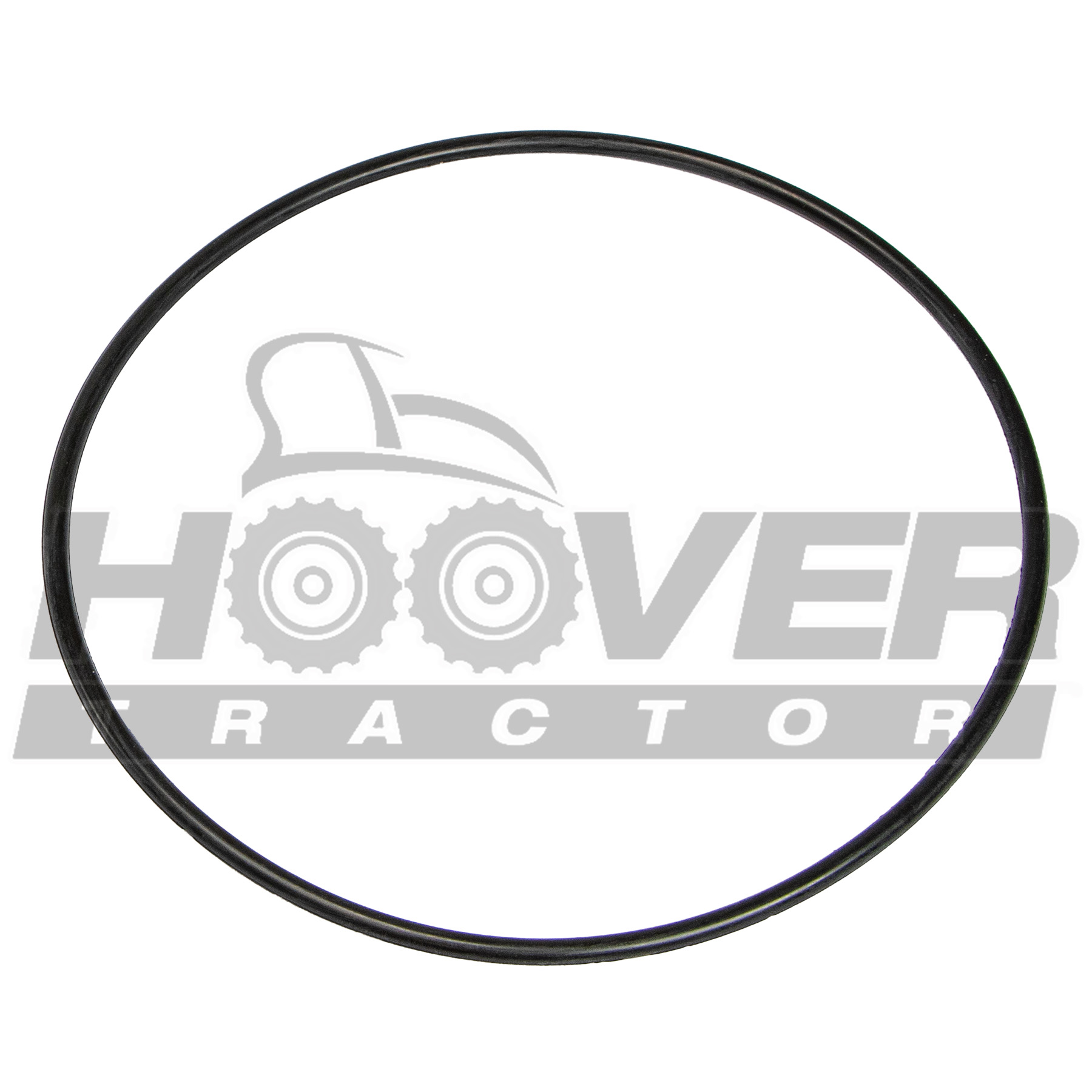

  • 10 O RING

    O RING

    • Part No. 04811-51150
    • Applied Dates Up to 2017-12-31
    • DIA114.4
    • 2 shown on diagram
    $2.99
  • 11

    WHEEL SHAFT dnr v

    • Part No. T4125-27112
    • Applied Dates 2008-03-11 to 2009-04-01
    • *multiple options for # 11
    • 2 shown on diagram
    $679.99
  • 11

    SHAFT WHEEL v

    • Part No. T4125-27113
    • Compatibility Interchngable
    • Applied Dates 2009-04-02 and up
    • *multiple options for # 11
    • 2 shown on diagram
    $1,044.99
  • 12 BEARING, BALL

    BEARING, BALL

    • Part No. 08101-06212
    • DIA60
    • 2 shown on diagram
    $89.99
  • 13

    SPACER

    • Part No. T4125-27142
    • Applied Dates 2006-09-15 and up
    • 2 shown on diagram
    $44.99
  • 14

    GEAR

    • Part No. T4125-26831
    • 2 shown on diagram
    $674.99

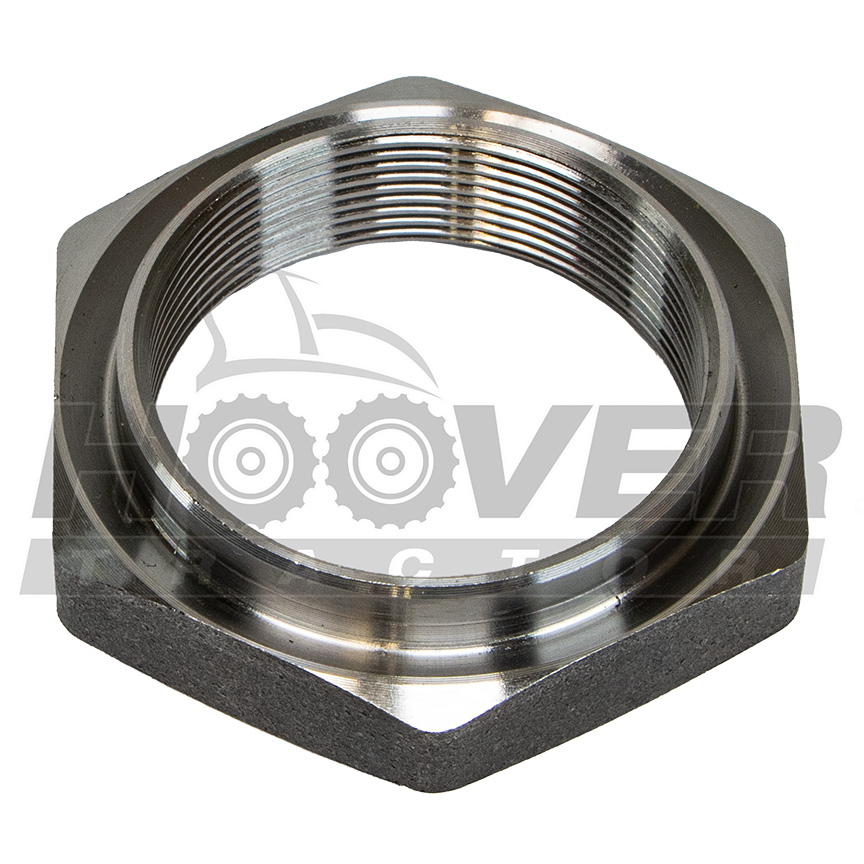

  • 15 NUT

    NUT

    • Part No. T4125-27202
    • Applied Dates 2008-03-11 and up
    • 2 shown on diagram
    $41.99
  • 16

    BEARING, ROLLER

    • Part No. T2610-27211
    • NJ207E
    • 2 shown on diagram
    $134.99
  • 17

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 8 shown on diagram
    $3.49
  • 18 STUD M16 P1.5

    STUD M16 P1.5

    • Part No. T4340-27122
    • Applied Dates 2007-07-09 and up
    • 4 shown on diagram
    $13.99
  • 19

    PIN, PARALLEL v

    • Part No. 37305-2817-1
    • 4 shown on diagram
    $9.99
  • 20 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • Applied Dates 2007-11-12 and up
    • M12
    • 2 shown on diagram
    $0.95
  • 21

    NUT

    • Part No. T4240-14081
    • 2 shown on diagram
    $4.99
  • 22

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 18 shown on diagram
    $3.49
  • 23

    SPACER

    • Part No. T4125-26481
    • Applied Dates 2006-09-15 and up
    • 2 shown on diagram
    $59.99
