BRAKE CASE GROUP - EX45CH-T455A

Kioti TRACTOR | DK Series | DK50HSE

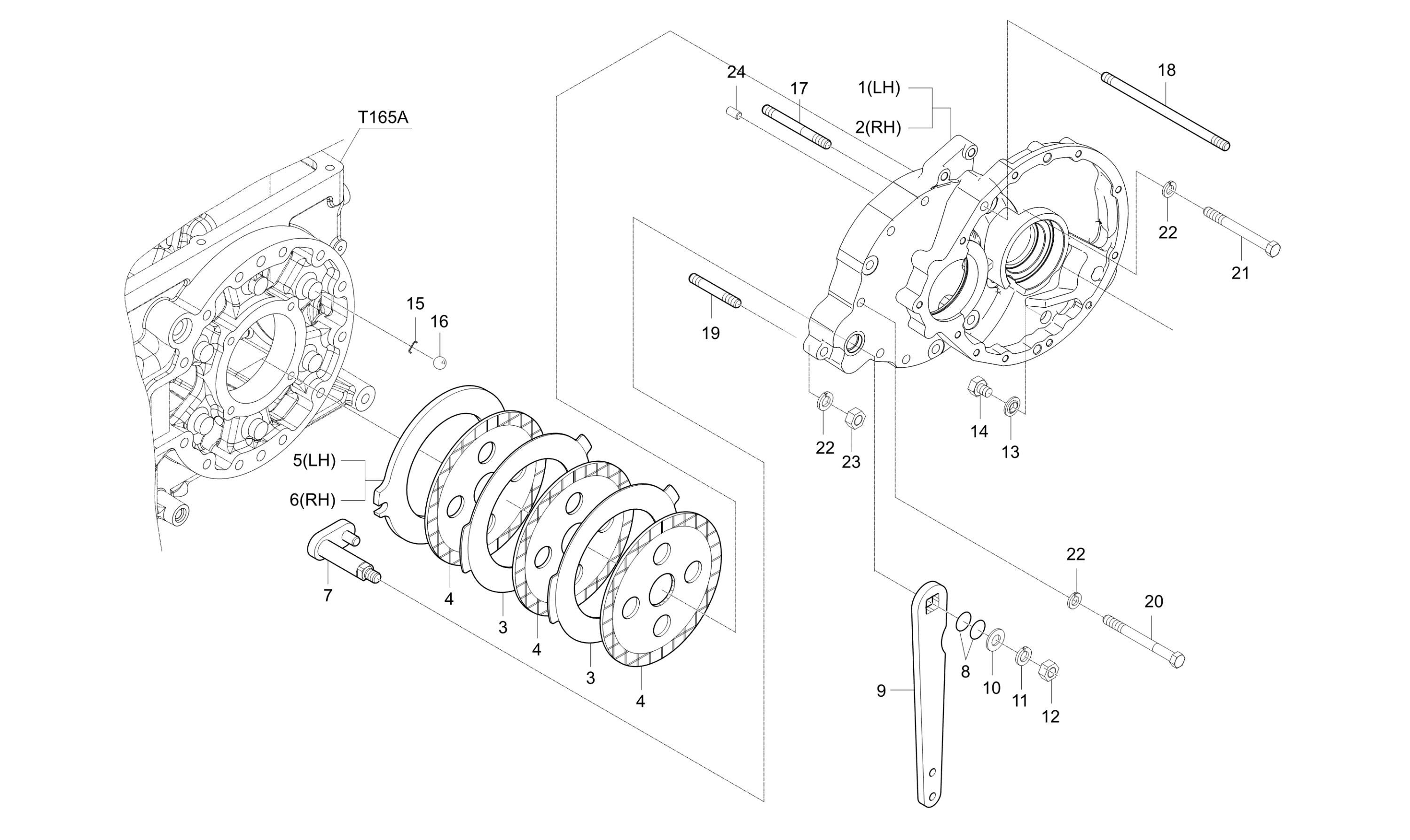

Diagram for BRAKE CASE GROUP - EX45CH-T455A

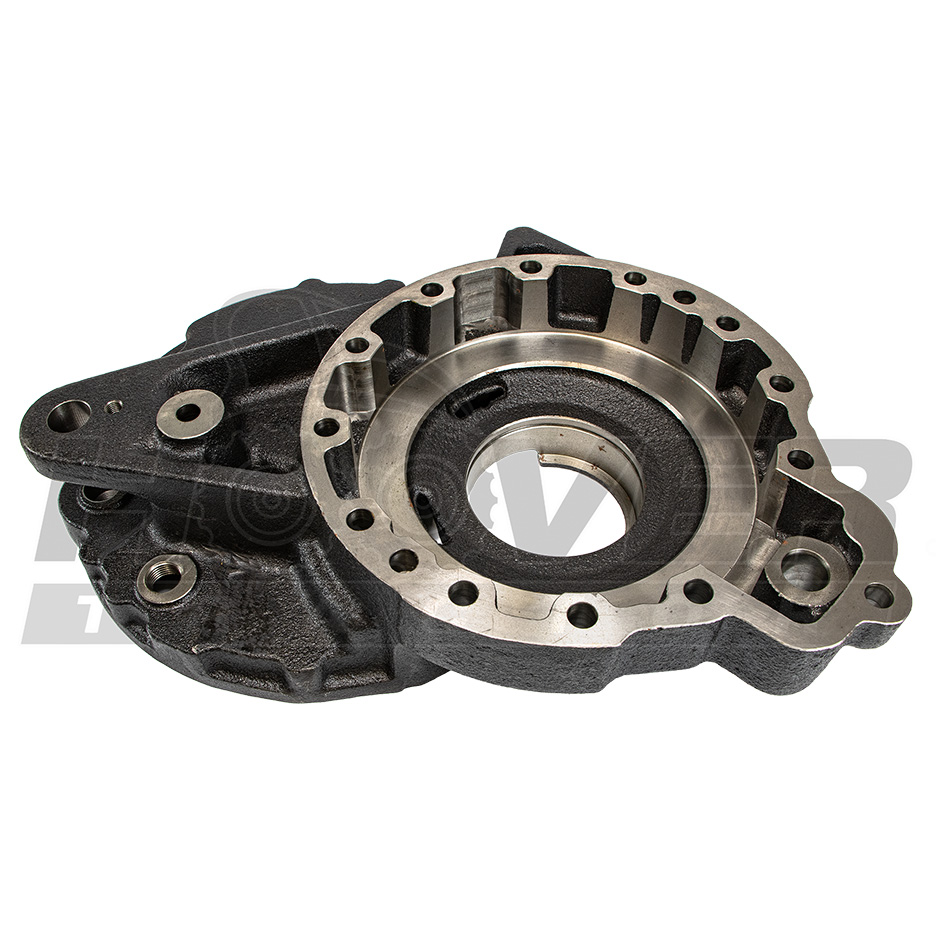

  • 1 CASE, BRAKE LH v, Replaced by T4340-28139

    CASE, BRAKE LH v, Replaced by T4340-28139

    • Part No. T4340-28136
    • *multiple options for # 1
    • 1 shown on diagram
    $517.85
  • 1 CASE BRAKE LH, Replaced by T4340-28139

    CASE BRAKE LH, Replaced by T4340-28139

    • Part No. T4340-28137
    • Compatibility Interchngable
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    CASE,BRAKE LH

    • Part No. T4340-28138
    • Compatibility Call for compatibility
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1 CASE, BRAKE LH

    CASE, BRAKE LH

    • Part No. T4340-28139
    • Compatibility Call for compatibility
    • *multiple options for # 1
    • 1 shown on diagram
    $674.99
  • 2

    CASE,BRAKE RH dnr v

    • Part No. T4340-28156
    • *multiple options for # 2
    • 1 shown on diagram
    $934.99
  • 2

    CASE, BRAKE RH v

    • Part No. T4340-28157
    • Compatibility Interchngable
    • *multiple options for # 2
    • 1 shown on diagram
    $814.99
  • 2

    CASE,BRAKE RH

    • Part No. T4340-28158
    • Compatibility Call for compatibility
    • *multiple options for # 2
    • 1 shown on diagram
    $0.00
  • 2

    CASE,BRAKE RH

    • Part No. T4340-28159
    • Compatibility Call for compatibility
    • *multiple options for # 2
    • 1 shown on diagram
    $699.99
  • 3

    PLATE

    • Part No. T2440-28182
    • T2.6
    • 4 shown on diagram
    $29.99
  • 4

    BREAK DISC v

    • Part No. T2440-28203
    • 6 shown on diagram
    $87.99
  • 5

    PLATE,CAM LH v

    • Part No. T4125-28241
    • Applied Dates 2009-03-26 and up
    • 1 shown on diagram
    $114.99
  • 6

    PLATE,CAM RH

    • Part No. T4125-28271
    • Applied Dates 2009-03-26 and up
    • 1 shown on diagram
    $114.99
  • 7

    CAM,BRAKE

    • Part No. T4340-28212
    • 2 shown on diagram
    $61.99
  • 8 O RING

    O RING

    • Part No. 04811-00220
    • DIA21.8
    • 4 shown on diagram
    $0.90
  • 9

    LEVER, BRAKE CAM, Replaced by T4125-28223BB

    • Part No. T4125-28222
    • Applied Dates Up to 2013-12-31
    • T9
    • *multiple options for # 9
    • 2 shown on diagram
    $0.00
  • 9

    LEVER, BRAKE CAM v, Replaced by T4125-28223BB

    • Part No. T4125-28223
    • Compatibility New Replaces Old
    • Applied Dates 2014-01-09 and up
    • T9
    • *multiple options for # 9
    • 2 shown on diagram
    $0.00
  • 10 Flat Washer M14

    Flat Washer M14

    • Part No. 04013-50140
    • Applied Dates 2014-01-09 and up
    • M14
    • 2 shown on diagram
    $1.19
  • 11

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 2 shown on diagram
    $0.90
  • 12 NUT

    NUT

    • Part No. 02176-50140
    • M14XP1.5
    • 2 shown on diagram
    $1.79
  • 13 WASHER,SEAL

    WASHER,SEAL

    • Part No. 04717-02150
    • PS1/2
    • 2 shown on diagram
    $2.49
  • 14

    PLUG, OIL DRAIN v

    • Part No. 34150-1426-1
    • DIA30X34
    • 2 shown on diagram
    $6.99
  • 15

    SEAT, STEEL BALL v

    • Part No. 37150-2825-3
    • T1.0*27*27
    • 12 shown on diagram
    $13.99
  • 16

    BALL,STEEL v

    • Part No. 07715-00805
    • DIA15.875
    • 12 shown on diagram
    $2.49
  • 17

    STUD

    • Part No. T4340-27361
    • M12*1.25
    • 2 shown on diagram
    $9.99
  • 18

    STUD

    • Part No. 01574-51245
    • M12XP1.25
    • 2 shown on diagram
    $6.49
  • 19

    STUD

    • Part No. 01574-51290
    • M12XP1.25
    • 2 shown on diagram
    $8.49
  • 20

    BOLT, WITH WASHER obs

    • Part No. 01133-51265
    • M12XP1.25
    • 2 shown on diagram
    $5.99
  • 21

    BOLT WITH WASHER dnr v, Replaced by 01173-51270

    • Part No. 01133-51270
    • M12XP1.25
    • 20 shown on diagram
    $0.00
  • 22 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 6 shown on diagram
    $0.95
  • 23 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 4 shown on diagram
    $1.49
  • 24

    PIN, PARALLEL v

    • Part No. 37305-2817-1
    • 4 shown on diagram
    $9.99
