GEAR CASE GROUP - EC1-G114015

Kioti TRACTOR | CS Series | CS2210S (XY8300001 and up)

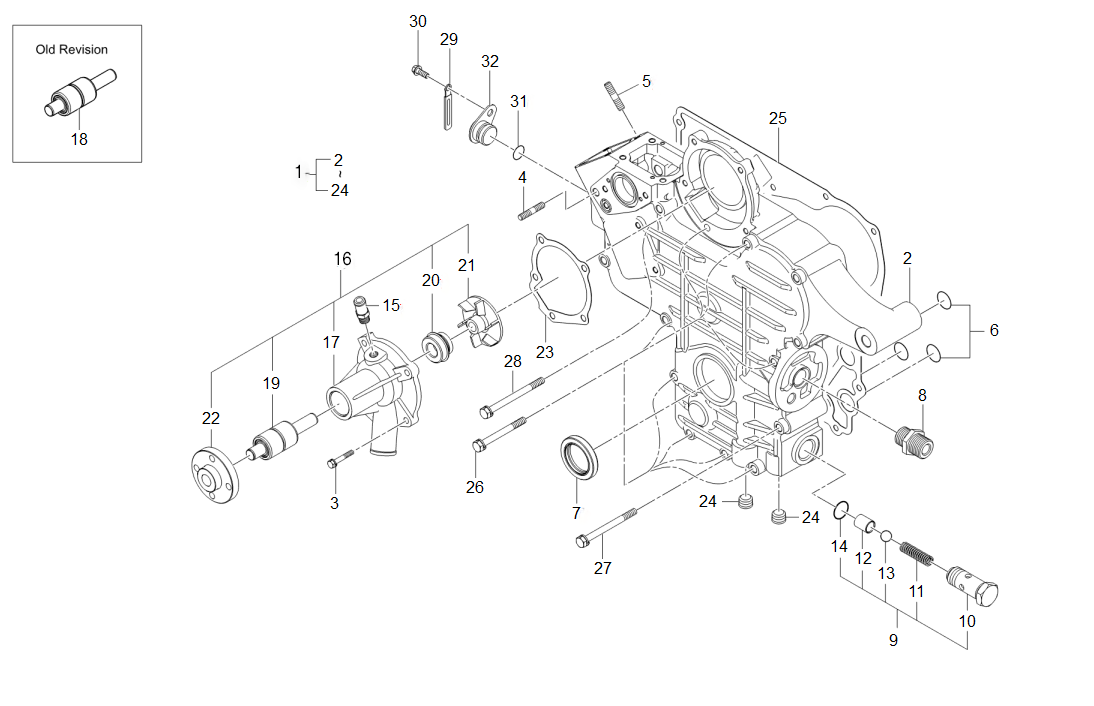

Diagram for GEAR CASE GROUP - EC1-G114015
  • 1

    ASSY CASE, GEAR

    • Part No. EC11-0116A
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY CASE, GEAR

    • Part No. EC11-0116B
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 2

    GEAR CASE

    • Part No. EC11-0108A
    • 1 shown on diagram
    $289.99
  • 3

    BOLT WASHER

    • Part No. 01023-50625
    • M6XP1.0
    • 4 shown on diagram
    $1.79
  • 4 STUD

    STUD

    • Part No. 01513-50614
    • M6XP1.0
    • 4 shown on diagram
    $3.49
  • 5

    STUD

    • Part No. 01513-50618
    • M6XP1.0
    • 1 shown on diagram
    $3.49
  • 6 O-Ring

    O-Ring

    • Part No. 04811-06130
    • DIA13
    • 3 shown on diagram
    $0.68
  • 7 SEAL, OIL 30x44x7

    SEAL, OIL 30x44x7

    • Part No. 09550-00008
    • 1 shown on diagram
    $24.99
  • 8

    TUBE, CONNECTING

    • Part No. E5205-32291
    • HEX24*39
    • 1 shown on diagram
    $15.99
  • 9

    RELIFE VALVE ASSY

    • Part No. E5700-36071
    • 1 shown on diagram
    $76.99
  • 10

    BODY, RELIEF VALVE dnr v

    • Part No. E5700-36911
    • 1 shown on diagram
    $19.99
  • 11

    SPRING

    • Part No. 15241-3695-2
    • DIA1.2
    • 1 shown on diagram
    $6.49
  • 12

    SEAT, VALVE

    • Part No. E5700-36932
    • DIA16*21
    • 1 shown on diagram
    $29.99
  • 13

    STEEL BALL

    • Part No. 07715-03213
    • DIA10.3188
    • 1 shown on diagram
    $0.68
  • 14

    O RING

    • Part No. 04810-00150
    • DIA14.8
    • 1 shown on diagram
    $0.90
  • 15

    HOSE, COOLING WATER RETURN

    • Part No. E5700-73343
    • DIA12*31
    • 1 shown on diagram
    $9.49
  • 16 WATER PUMP ASSY v

    WATER PUMP ASSY v

    • Part No. E5760-73033
    • 1 shown on diagram
    $154.99
  • 17

    BODY, WATER PUMP

    • Part No. E5760-73043
    • 1 shown on diagram
    $59.99
  • 18

    BEARING obs v

    • Part No. E5205-73551
    • WPB12091(KOYO)
    • 1 shown on diagram
    $67.99
  • 19

    BEARING

    • Part No. E5760-73551
    • 1 shown on diagram
    $43.99
  • 20

    MECHANICAL SEAL ASSY v

    • Part No. E5800-73052
    • 1 shown on diagram
    $39.99
  • 21

    IMPELLER

    • Part No. E5760-73512
    • 1 shown on diagram
    $25.99
  • 22

    FLANGE

    • Part No. E5205-73524
    • 1 shown on diagram
    $18.99
  • 23 GASKET, WATER PUMP

    GASKET, WATER PUMP

    • Part No. E5760-73432
    • t0.5
    • 1 shown on diagram
    $6.99
  • 24

    PLUG

    • Part No. E5900-96032
    • 2 shown on diagram
    $2.49
  • 25 GASKET, GEAR CASE

    GASKET, GEAR CASE

    • Part No. E5760-04132
    • 1 shown on diagram
    $19.99
  • 26

    BOLT, WASHER

    • Part No. 01023-50665
    • M6XP1.0
    • 11 shown on diagram
    $2.49
  • 27

    BOLT, WASHER

    • Part No. 01023-50670
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 28

    Bolt/Washer (01023-50675)

    • Part No. 01023-50675
    • M6XP1.0
    • 1 shown on diagram
    $2.49
  • 29

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 30

    BOLT, FLANGE

    • Part No. 01754-50610
    • M6XP1.0
    • 1 shown on diagram
    $1.09
  • 31 O RING

    O RING

    • Part No. 04811-00160
    • DIA15.8
    • 1 shown on diagram
    $1.09
  • 32

    COVER

    • Part No. E5806-04151
    • t=1.5
    • 1 shown on diagram
    $13.99
