ENGINE STOP LEVER GROUP - EC1-G154008

Kioti TRACTOR | CS Series | CS2210S (XY8300001 and up)

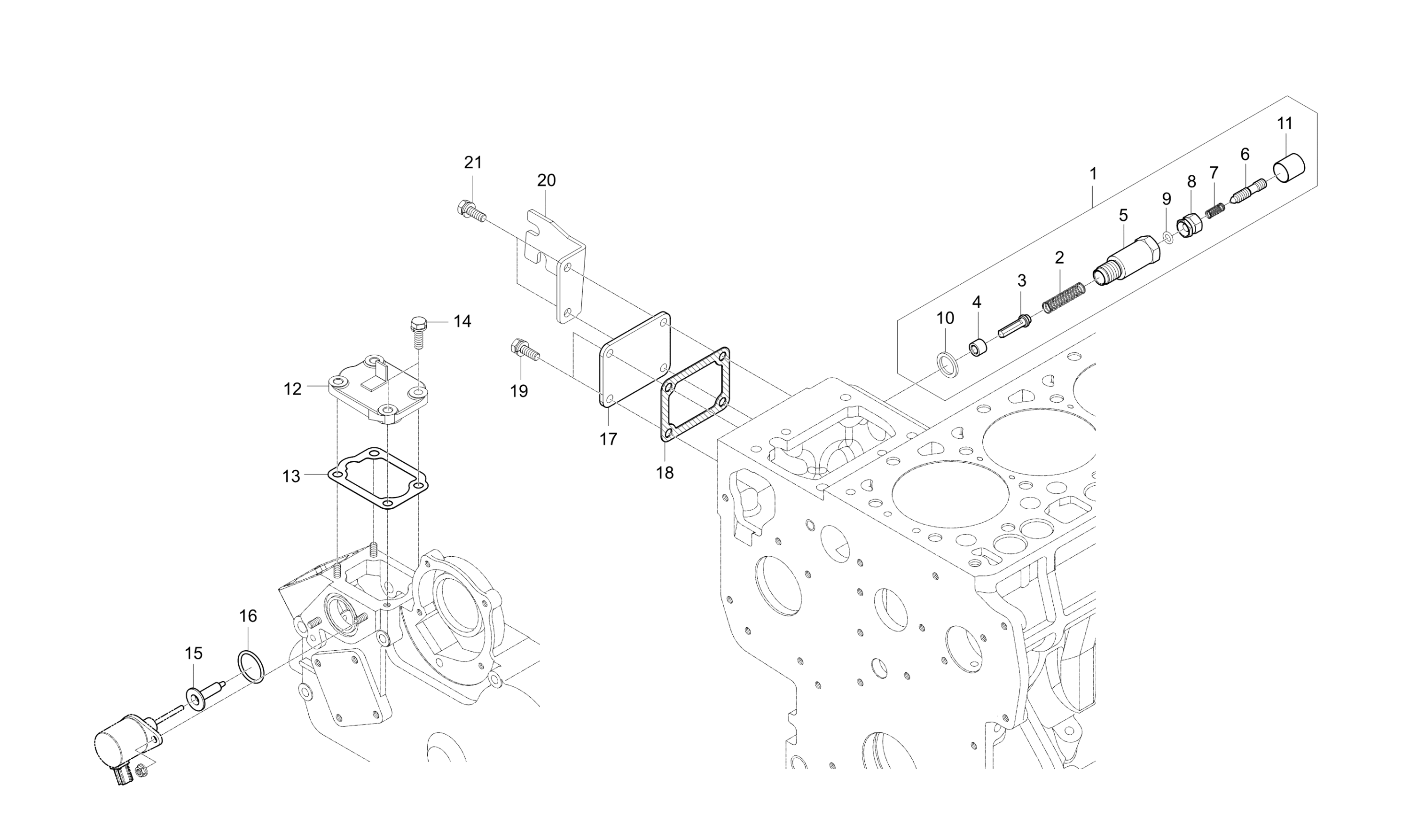

Diagram for ENGINE STOP LEVER GROUP - EC1-G154008
  • 1 IDLE APPARATUS ASSY

    IDLE APPARATUS ASSY

    • Part No. E5760-54098
    • 1 shown on diagram
    $96.99
  • 2 START SPRING

    START SPRING

    • Part No. E5760-56481
    • 1 shown on diagram
    $5.49
  • 3

    SHAFT, IDLE ADJUSTMENT

    • Part No. E5850-54274
    • 1 shown on diagram
    $7.49
  • 4 BUSH

    BUSH

    • Part No. E5850-54283
    • 1 shown on diagram
    $15.99
  • 5

    ADJUSTMENT BODY, IDLE

    • Part No. E5850-54292
    • 1 shown on diagram
    $25.99
  • 6

    IDEL ADJUSTING BOLT

    • Part No. E5850-54253
    • 1 shown on diagram
    $8.99
  • 7

    SPRING, IDLE LIMIT v

    • Part No. E5760-54263
    • 1 shown on diagram
    $2.49
  • 8

    NUT

    • Part No. EC11-0049A
    • 1 shown on diagram
    $6.49
  • 9

    O RING

    • Part No. 04811-00060
    • 1 shown on diagram
    $0.68
  • 10

    PACKING

    • Part No. 04724-00140
    • Inner Diameter 14.1
    • 1 shown on diagram
    $3.99
  • 11 CAP

    CAP

    • Part No. E5205-54271
    • T0.5*60*60
    • 1 shown on diagram
    $5.49
  • 12

    COVER, ENGINE STOP LEVER

    • Part No. E6850-57313
    • 1 shown on diagram
    $9.99
  • 13 GASKET, SPEED CONTROL PLATE

    GASKET, SPEED CONTROL PLATE

    • Part No. E5850-57212
    • 1 shown on diagram
    $4.49
  • 14 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 2 shown on diagram
    $1.89
  • 15 ENGINE STOP SOLENOIDE GUIDE

    ENGINE STOP SOLENOIDE GUIDE

    • Part No. E5760-56602
    • 1 shown on diagram
    $5.49
  • 16 O RING

    O RING

    • Part No. 04814-06310
    • 1 shown on diagram
    $3.49
  • 17

    COVER, INJECTION PUMP

    • Part No. E5760-33111
    • 1 shown on diagram
    $7.49
  • 18 GASKET, OIL FILLER

    GASKET, OIL FILLER

    • Part No. E5500-51662
    • t1.0
    • 1 shown on diagram
    $3.99
  • 19 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.39
  • 20

    PLATE, HOLDER-CABLE

    • Part No. EC11-0098A
    • T3.2
    • 1 shown on diagram
    $14.99
  • 21 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 4 shown on diagram
    $1.89
