FUEL EQUIPMENT GROUP - EC1-G151004

Kioti TRACTOR | CS Series | CS2210S (XY8300001 and up)

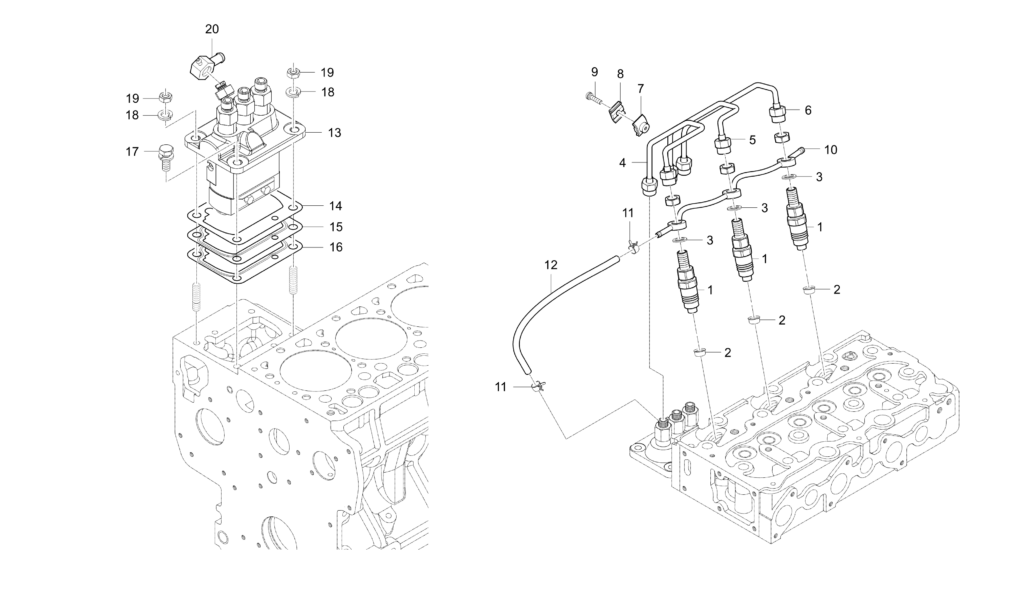

Diagram for FUEL EQUIPMENT GROUP - EC1-G151004
  • 1

    ASSY HOLDER,NOZZLE 1, Replaced by E5760-53001U

    • Part No. E5760-53001
    • 3 shown on diagram
    $194.37

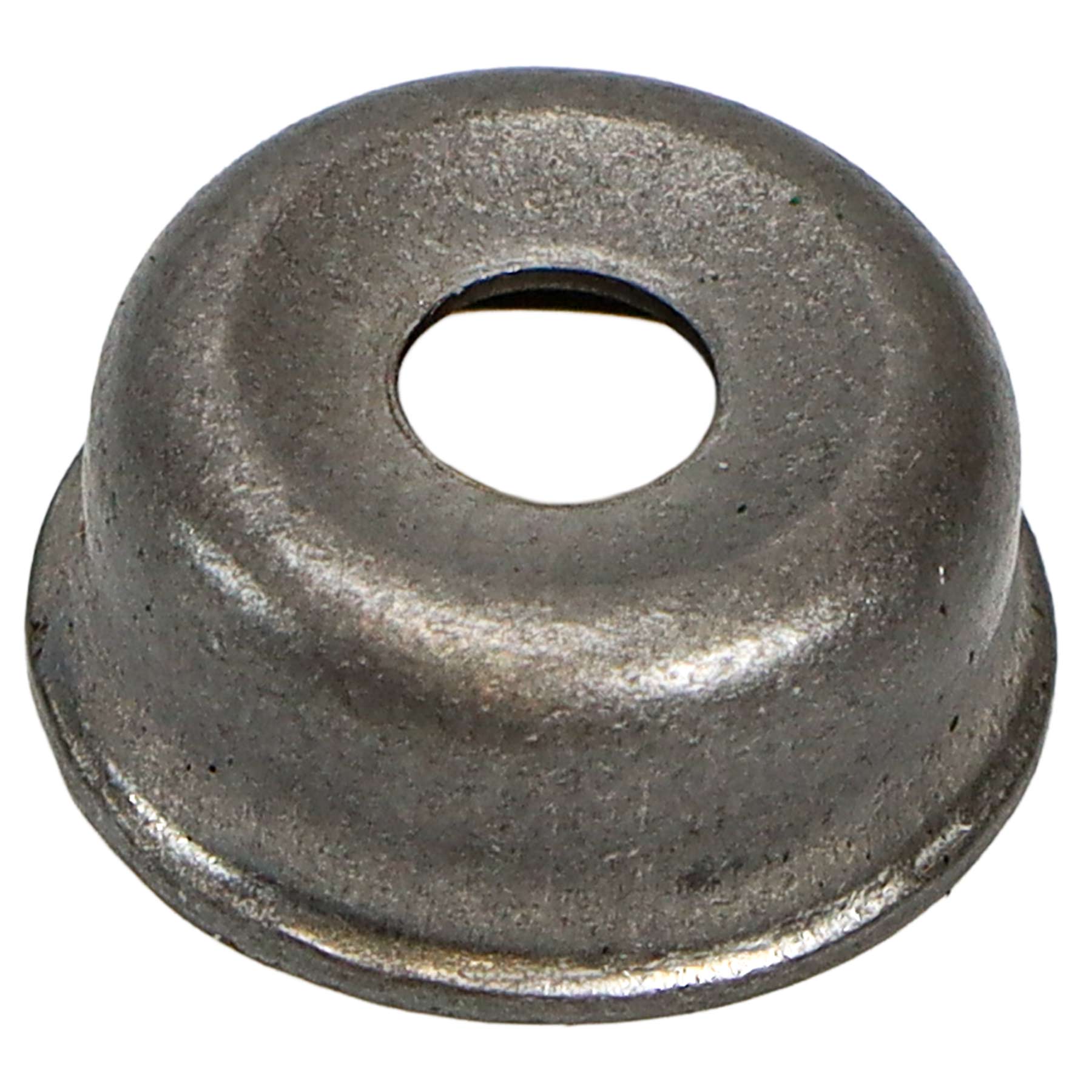

  • 2 Seal, Heat Shield

    Seal, Heat Shield

    • Part No. E6300-53651
    • T0.8
    • 3 shown on diagram
    $4.49

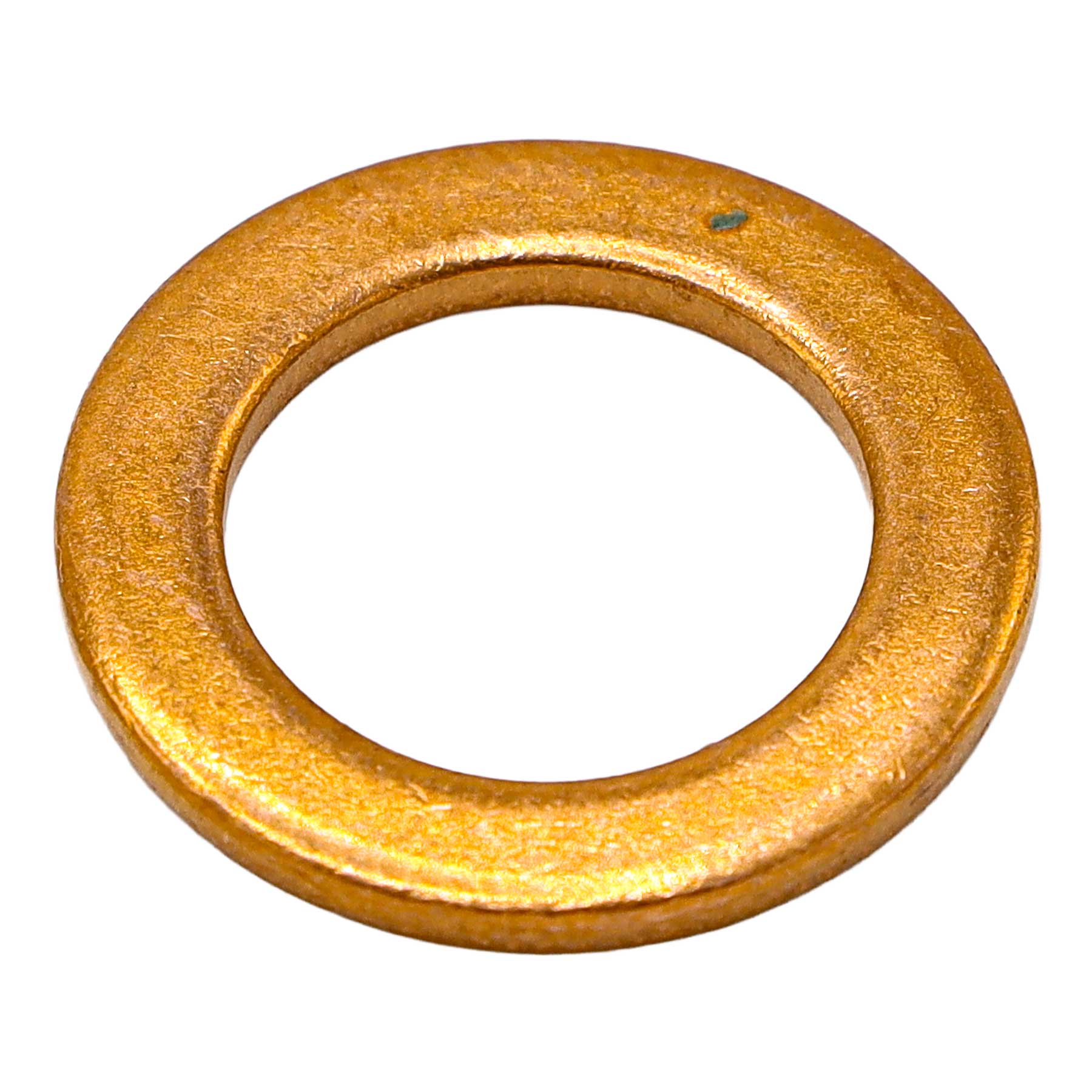

  • 3 Copper Washer 11.5×17.6

    Copper Washer 11.5×17.6

    • Part No. E6300-53621
    • 3 shown on diagram
    $2.99
  • 4

    TUBE 1, INJECTION

    • Part No. E5775-53712
    • 1 shown on diagram
    $59.99
  • 5

    TUBE 2, INJECTION

    • Part No. E5775-53722
    • 1 shown on diagram
    $59.99
  • 6

    TUBE 3, INJECTION

    • Part No. E5775-53732
    • 1 shown on diagram
    $61.99
  • 7

    CLAMP 1, TUBE

    • Part No. 15121-5385-2
    • 2 shown on diagram
    $9.49
  • 8

    HOLDER, TUBE

    • Part No. T4815-67371
    • 2 shown on diagram
    $7.49
  • 9

    SCREW, WASHER (03024-50520)

    • Part No. 03024-50520
    • DIA10*28
    • 2 shown on diagram
    $0.85
  • 10

    OVERFLOW HOSE ASSY

    • Part No. E5760-42503
    • 1 shown on diagram
    $73.99
  • 11

    CLMAP, HOSE

    • Part No. 09318-88080
    • 2 shown on diagram
    $0.53
  • 12

    HOSE, FUEL

    • Part No. 09661-40200
    • 1 shown on diagram
    $4.49
  • 13 INJECTION PUMP

    INJECTION PUMP

    • Part No. E5763-51011
    • Compatibility No interchange
    • 1 shown on diagram
    $1,494.99
  • 14 SHIM 3, INJECTION PUMP .25mm

    SHIM 3, INJECTION PUMP .25mm

    • Part No. E5800-52111
    • 2 shown on diagram
    $6.99
  • 15

    SHIM,INJECTION PUMP v

    • Part No. E8103-52111
    • Compatibility New repl old
    • 0.28t
    • 2 shown on diagram
    $12.99
  • 16

    SHIM,INJECTION PUMP v

    • Part No. E5603-52111
    • Compatibility New repl old
    • 0.38t
    • 2 shown on diagram
    $9.49
  • 17

    Bolt With Washer, M8 P1.25 x 18mm

    • Part No. 01123-50818
    • Compatibility New repl old
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 18 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 19 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 20

    JOINT, FUEL PIPE

    • Part No. E6500-42414
    • Compatibility New repl old
    • 1 shown on diagram
    $33.99
