INTAKE MANIFOLD GROUP - EC1-G131003

Kioti TRACTOR | CS Series | CS2210S (XY8300001 and up)

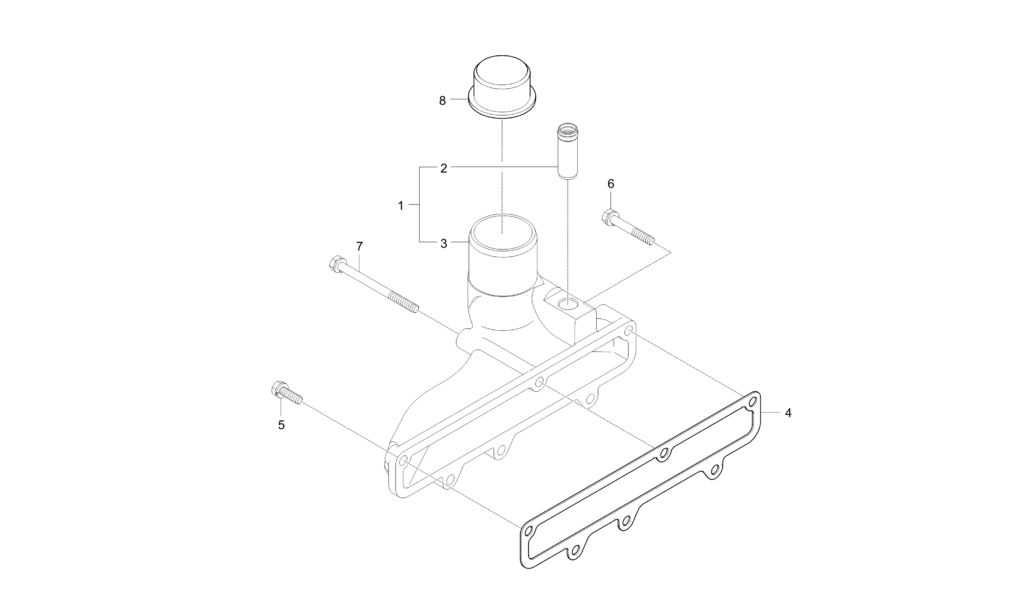

Diagram for INTAKE MANIFOLD GROUP - EC1-G131003
  • 1

    MANIFOLD ASSY

    • Part No. E5760-11703
    • 1 shown on diagram
    $0.00
  • 2

    MANIFOLD, INTAKE

    • Part No. E5760-11763
    • 1 shown on diagram
    $139.99
  • 3

    CONNECTOR, AIR BREATHER HOSE

    • Part No. E6510-05552
    • DIA13x35x1T
    • 1 shown on diagram
    $5.49
  • 4 GASKET, INTAKE MANIFOLD

    GASKET, INTAKE MANIFOLD

    • Part No. E5770-11821
    • 1 shown on diagram
    $9.99
  • 5

    BOLT, WASHER

    • Part No. 01023-50620
    • M6XP1.0
    • 4 shown on diagram
    $1.39
  • 6

    BOLT WASHER

    • Part No. 01023-50630
    • M6XP1.0
    • * multiple options for #6
    • 1 shown on diagram
    $1.59
  • 6

    BOLT

    • Part No. 01023-50638
    • Compatibility New repl old
    • M6 X 1
    • * multiple options for #6
    • 1 shown on diagram
    $2.49
  • 7

    Bolt/Washer (01023-50660)

    • Part No. 01023-50660
    • M6XP1.0
    • * multiple options for #7
    • 1 shown on diagram
    $1.89
  • 7

    BOLT v

    • Part No. 01023-50680
    • Compatibility New repl old
    • M6XP1.0
    • * multiple options for #7
    • 1 shown on diagram
    $2.49
  • 8

    COVER, INTAKE MANIFOLD

    • Part No. E5700-11912
    • 1 shown on diagram
    $12.99
