WATER FLANGE GROUP - EC1-G162013

Kioti TRACTOR | CS Series | CS2210S (XY8300001 and up)

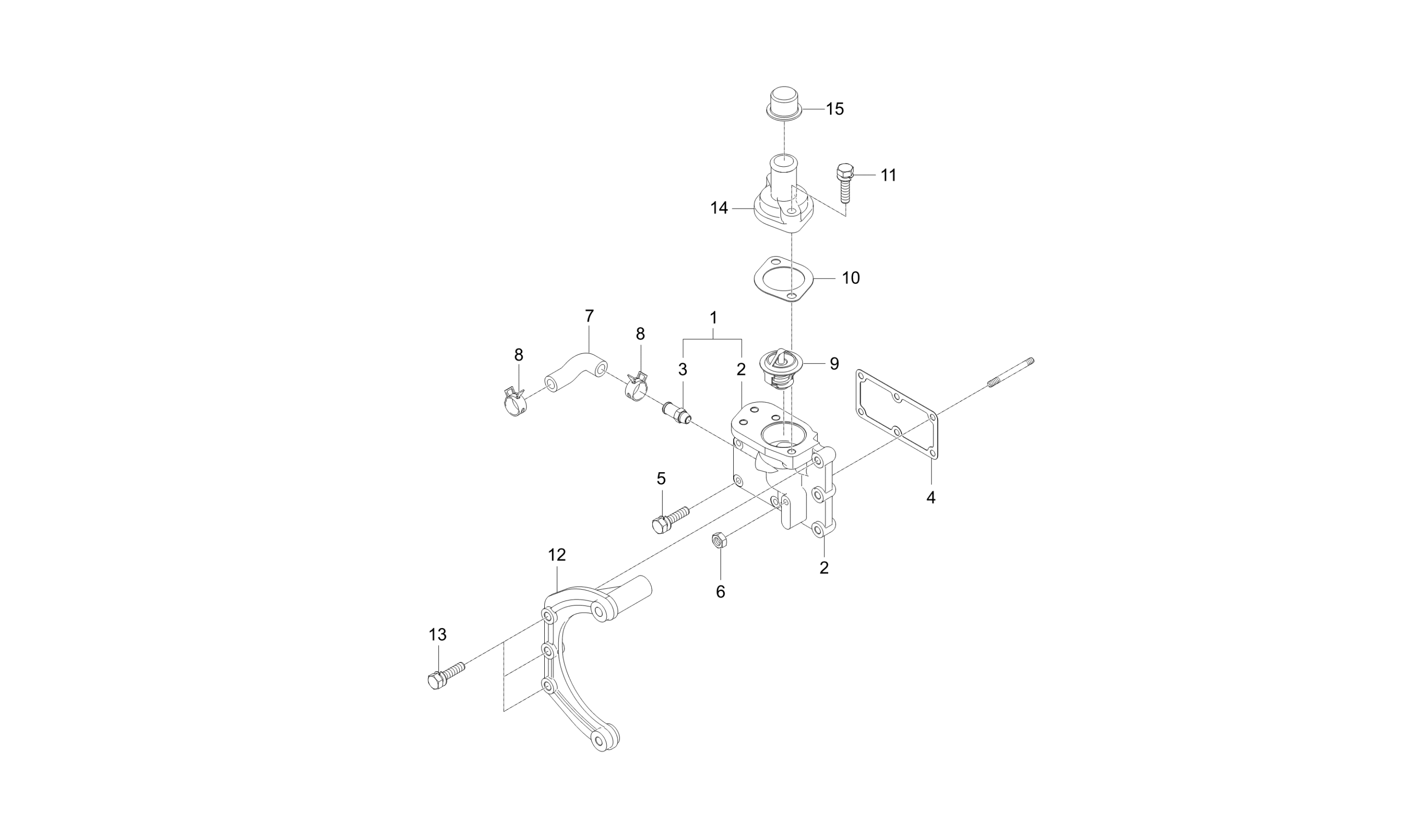

Diagram for WATER FLANGE GROUP - EC1-G162013
  • 1

    ASSY FLANGE, COOLING WATER

    • Part No. EC16-0015A
    • 1 shown on diagram
    $0.00
  • 2

    FLANGE, COOLING WATER

    • Part No. EC16-0001A
    • 1 shown on diagram
    $149.99
  • 3

    HOSE, COOLING WATER RETURN

    • Part No. E5700-73343
    • DIA12*31
    • 1 shown on diagram
    $9.49
  • 4 GASKET, FLANGE

    GASKET, FLANGE

    • Part No. E5700-72922
    • T1.0*123*64
    • 1 shown on diagram
    $6.49
  • 5

    BOLT, WASHER

    • Part No. 01023-50616
    • M6XP1.0
    • 5 shown on diagram
    $1.19
  • 6 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.67
  • 7 HOSE, WATER PUMP v

    HOSE, WATER PUMP v

    • Part No. E5700-73353
    • 1 shown on diagram
    $11.99
  • 8

    CLMAP, HOSE

    • Part No. 09318-88140
    • DIA14.8
    • 2 shown on diagram
    $1.29
  • 9 Thermostat 160°F 71°C 44mm

    Thermostat 160°F 71°C 44mm

    • Part No. E5800-73011
    • 1 shown on diagram
    $38.99
  • 10 Gasket, Thermostat

    Gasket, Thermostat

    • Part No. E5500-73272
    • t1.0
    • 1 shown on diagram
    $5.99
  • 11 BOLT v

    BOLT v

    • Part No. 01754-50835
    • M8XP1.25
    • 2 shown on diagram
    $1.89
  • 12

    SUPPORT, ALTERNATOR

    • Part No. EC19-0003A
    • 1 shown on diagram
    $73.99
  • 13 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • M8XP1.25
    • 3 shown on diagram
    $2.49
  • 14

    COVER, THERMOSTAT

    • Part No. E5700-73263
    • 1 shown on diagram
    $18.99
  • 15

    COVER, WATER HOSE

    • Part No. E5500-74213
    • 1 shown on diagram
    $16.99
