AUX SPEED SHIFT LEVER GROUP - EX45H-T375A

Kioti TRACTOR | DK Series | DK50HSE

Diagram for AUX SPEED SHIFT LEVER GROUP - EX45H-T375A
  • 1

    LEVER, SUBMISSION

    • Part No. T4125-60433BB
    • Serial No. HS2800001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $76.99
  • 1

    LEVER, RANGE

    • Part No. T4125-60434
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $78.99

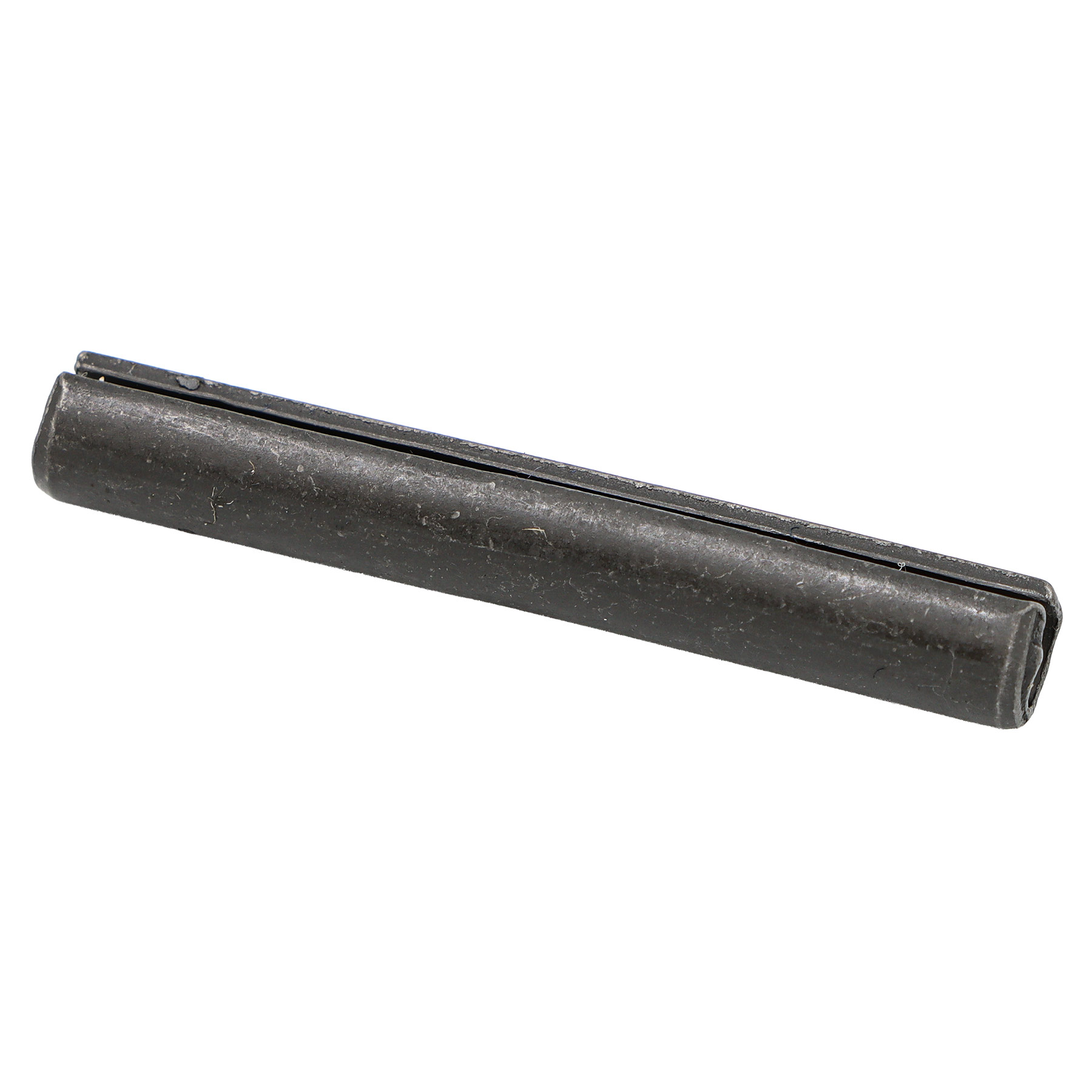

  • 2 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00535
    • Applied Dates 2006-04-08 and up
    • DIA5.4XL35
    • 1 shown on diagram
    $0.90
  • 3

    GRIP

    • Part No. T4125-66441
    • 1 shown on diagram
    $46.99
  • 4

    SCREW

    • Part No. 03004-50616
    • M6XP1.0
    • 1 shown on diagram
    $0.73

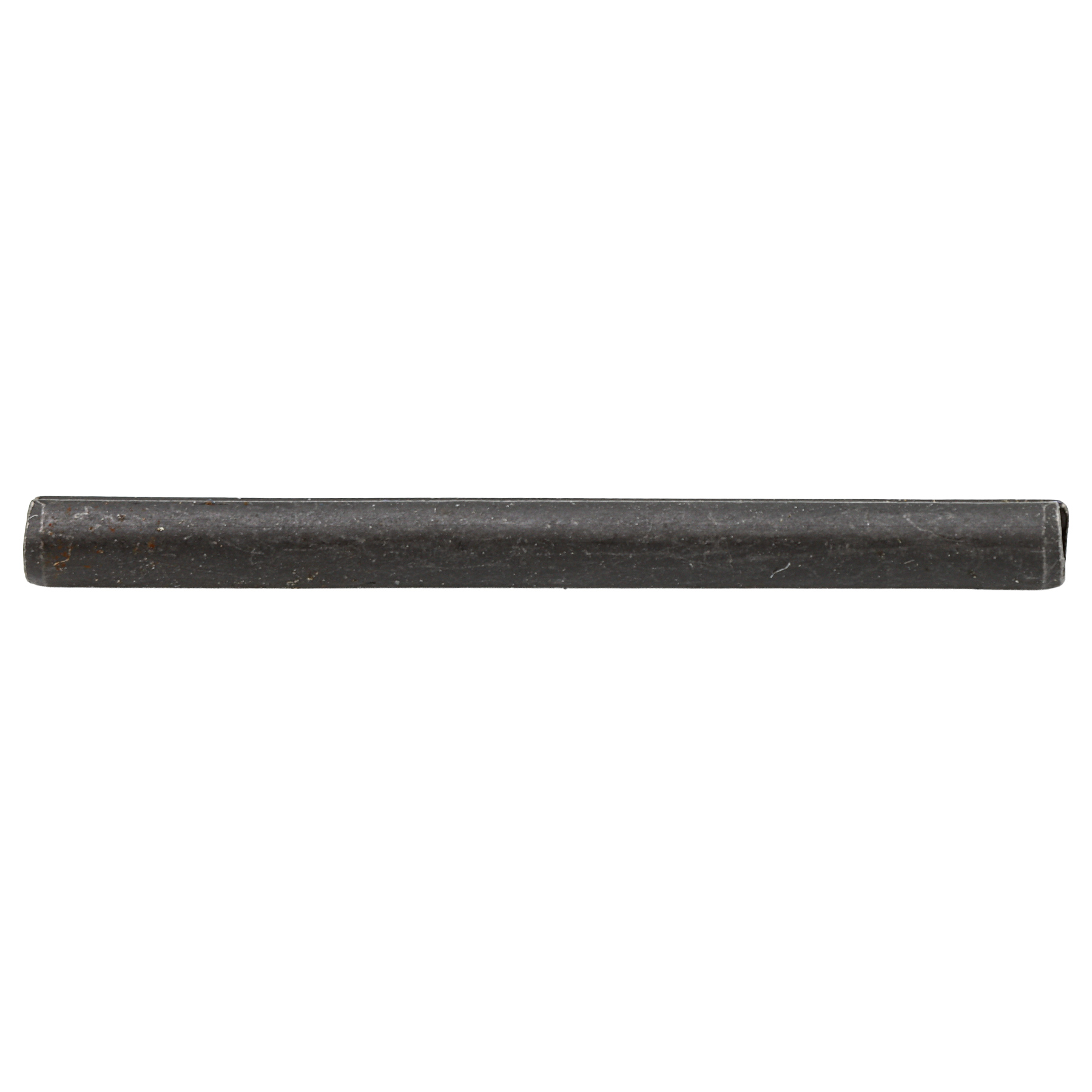

  • 5 SPRING PIN

    SPRING PIN

    • Part No. 05411-00335
    • Applied Dates 2006-04-08 and up
    • DIA3.3XL35
    • 1 shown on diagram
    $0.68
  • 6

    BRACKET (SWITCH)

    • Part No. T4125-60411
    • Applied Dates 2006-04-08 and up
    • T3.2
    • 1 shown on diagram
    $13.99
  • 7 Flange Bolt M10 P1.25 x16 (01774-51016)

    Flange Bolt M10 P1.25 x16 (01774-51016)

    • Part No. 01774-51016
    • Applied Dates 2006-04-08 and up
    • M10XP1.25
    • 2 shown on diagram
    $2.49
  • 8

    ARM, FEEDBACK

    • Part No. T4125-60451
    • Applied Dates 2006-04-08 and up
    • T2
    • *multiple options for # 8
    • 1 shown on diagram
    $2.49
  • 8

    PLATE, CONNECTING

    • Part No. T4125-60452
    • Compatibility Interchngable
    • T2
    • *multiple options for # 8
    • 1 shown on diagram
    $4.99
  • 8

    PLATE, CONNECTING

    • Part No. T4125-60453
    • Compatibility New Replaces Old
    • T2
    • *multiple options for # 8
    • 1 shown on diagram
    $4.99
  • 9

    WASHER 2

    • Part No. T4682-65301
    • Applied Dates 2006-04-08 and up
    • 4 shown on diagram
    $0.73
  • 10 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • Applied Dates 2006-04-08 and up
    • M6
    • 2 shown on diagram
    $0.67
  • 11

    Split Pin (05511-51615)

    • Part No. 05511-51615
    • DIA1.4XL15
    • 2 shown on diagram
    $0.56
