BONNET 1 GROUP - EX45H-T825A

Kioti TRACTOR | DK Series | DK50HSE

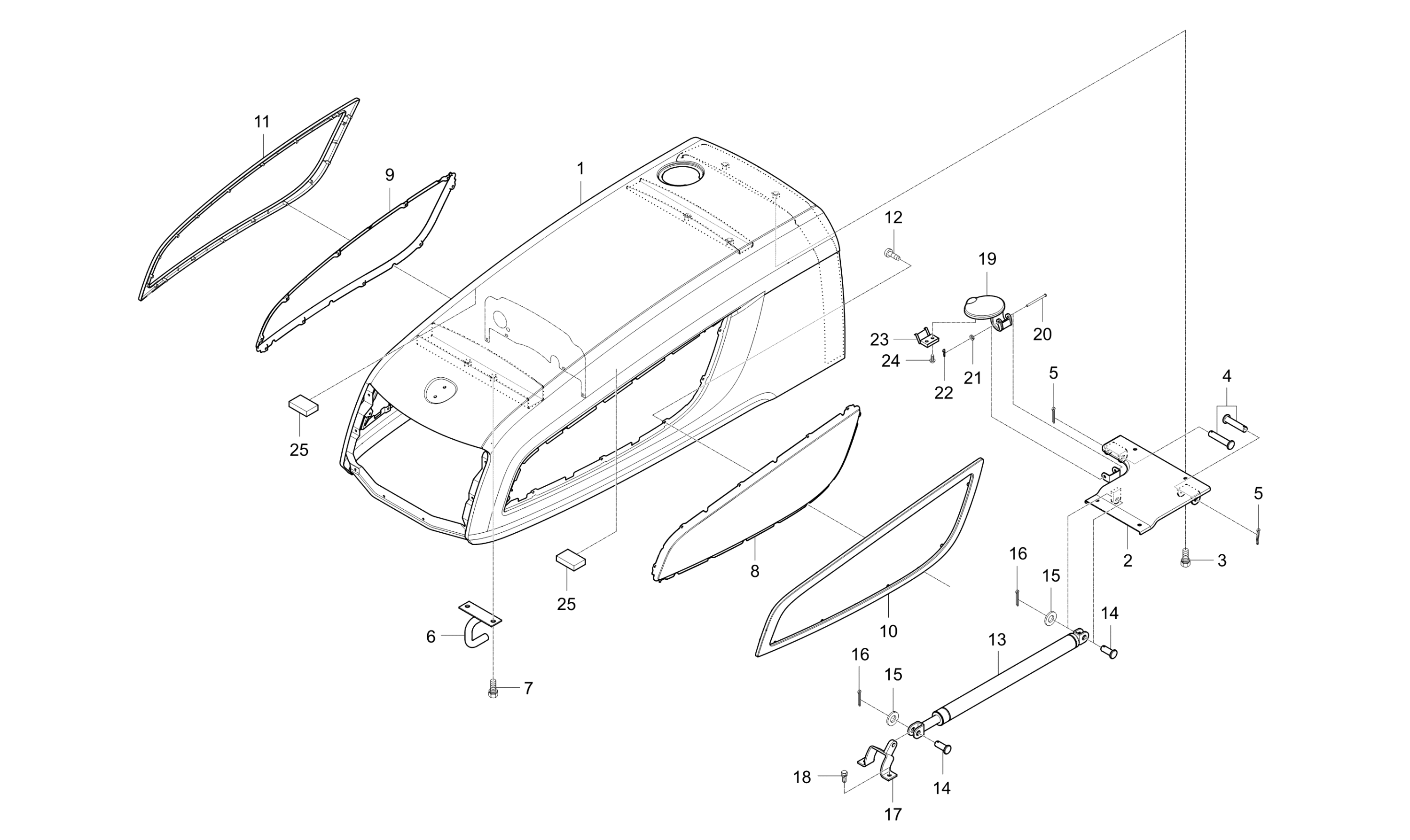

Diagram for BONNET 1 GROUP - EX45H-T825A
  • 1

    TRK – ASSY BONNET dnr v

    • Part No. T4015-50704
    • Applied Dates 2008-03-25 and up
    • 1 shown on diagram
    $1,549.99
  • 2

    HINGE,BONNETT

    • Part No. T4125-50794
    • Applied Dates 2008-10-01 and up
    • 1 shown on diagram
    $95.99
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 4

    Pin, Joint M10x60mm

    • Part No. 05122-51060
    • 2 shown on diagram
    $3.99
  • 5

    PIN, SNAP

    • Part No. 05515-51000
    • Applied Dates 2007-02-22 to 2006-01-30
    • DIA10
    • 2 shown on diagram
    $1.29
  • 6

    HOLDER,BONNET

    • Part No. T4125-50613
    • Applied Dates 2006-11-14 to 2011-09-30
    • Serial No. FS2800001 to LS2800028
    • *multiple options for # 6
    • 1 shown on diagram
    $35.99
  • 6

    HOLDER, BONNET

    • Part No. T4125-50614
    • Compatibility No Interchange
    • Applied Dates 2011-10-01 and up
    • Serial No. LS2800029 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $24.99
  • 7

    Bolt M10 P1.50x20mm

    • Part No. 01754-51020
    • 2 shown on diagram
    $1.99
  • 8

    NET, GRILLE dnr v, Replaced by T4125-51111BB

    • Part No. T4125-51111
    • Serial No. Up to GS2800002
    • T0.8
    • *multiple options for # 8
    • 1 shown on diagram
    $0.00
  • 8

    NET, 1

    • Part No. T4125-51111BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 8
    • 1 shown on diagram
    $169.99
  • 9

    PUNCHING-METAL-2 dnr v, Replaced by T4125-51121BB

    • Part No. T4125-51121
    • Serial No. Up to GS2800002
    • T0.8
    • *multiple options for # 9
    • 1 shown on diagram
    $0.00
  • 9

    NET 2

    • Part No. T4125-51121BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 9
    • 1 shown on diagram
    $169.99
  • 10

    GRILL SIDE LH, Light Gray

    • Part No. T4125-51131
    • Serial No. Up to GS2800002
    • *multiple options for # 10
    • 1 shown on diagram
    $0.00
  • 10

    GRILL, SIDE LH, Charcoal Gray, Replaced by T4125-51132FB

    • Part No. T4125-51131BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 10
    • 1 shown on diagram
    $0.00
  • 10

    GRILL,SIDE LH, Replaced by T4125-51132FB

    • Part No. T4125-51132
    • Compatibility No Interchange
    • *multiple options for # 10
    • 1 shown on diagram
    $0.00
  • 11

    GRILL, SIDE RH

    • Part No. T4125-51141
    • Serial No. Up to GS2800002
    • *multiple options for # 11
    • 1 shown on diagram
    $209.99
  • 11

    GRILL SIDE RH dnr v

    • Part No. T4125-51141BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 11
    • 1 shown on diagram
    $209.99
  • 11

    GRILL SIDE RH, Replaced by T4125-51142FB

    • Part No. T4125-51142
    • Compatibility No Interchange
    • *multiple options for # 11
    • 1 shown on diagram
    $0.00
  • 12

    SCREW

    • Part No. 38430-1827-1
    • 20 shown on diagram
    $0.46
  • 13 ASS’Y, AIR CYLINDER

    ASS’Y, AIR CYLINDER

    • Part No. T4125-50911
    • 1 shown on diagram
    $94.99
  • 14

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 2 shown on diagram
    $2.99
  • 15 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 16

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 17

    SUPPORT, CYLINDER

    • Part No. T4125-72091
    • Serial No. Up to GS2800002
    • *multiple options for # 17
    • 1 shown on diagram
    $23.99
  • 17

    Cylinder Support

    • Part No. T4125-72091ED
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 17
    • 1 shown on diagram
    $21.99
  • 18 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • Applied Dates 2010-06-09 to 2009-03-12
    • M8XP1.25
    • *multiple options for # 18
    • 2 shown on diagram
    $1.19
  • 18 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Compatibility Interchngable
    • Applied Dates 2009-04-01 to 2007-02-27
    • Serial No. JS2800033 to KS2800024
    • M8XP1.25
    • *multiple options for # 18
    • 2 shown on diagram
    $1.79
  • 19 COVER,FUEL

    COVER,FUEL

    • Part No. T2185-50641
    • 1 shown on diagram
    $43.99
  • 20

    Pin, Joint M6x45mm

    • Part No. 05122-50645
    • 1 shown on diagram
    $2.99
  • 21 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 22

    PIN, SNAP

    • Part No. 05525-50600
    • Applied Dates 2008-06-26 to 2007-02-23
    • DIA6
    • 1 shown on diagram
    $1.19
  • 23

    CLIP

    • Part No. T2185-50651
    • T0.5
    • 1 shown on diagram
    $5.99
  • 24

    SCREW

    • Part No. 38430-1827-1
    • 2 shown on diagram
    $0.46
  • 25

    SPONGE

    • Part No. T2350-50391
    • T25
    • 2 shown on diagram
    $9.99
