FENDER GROUP - EX45H-T885A

Kioti TRACTOR | DK Series | DK50HSE

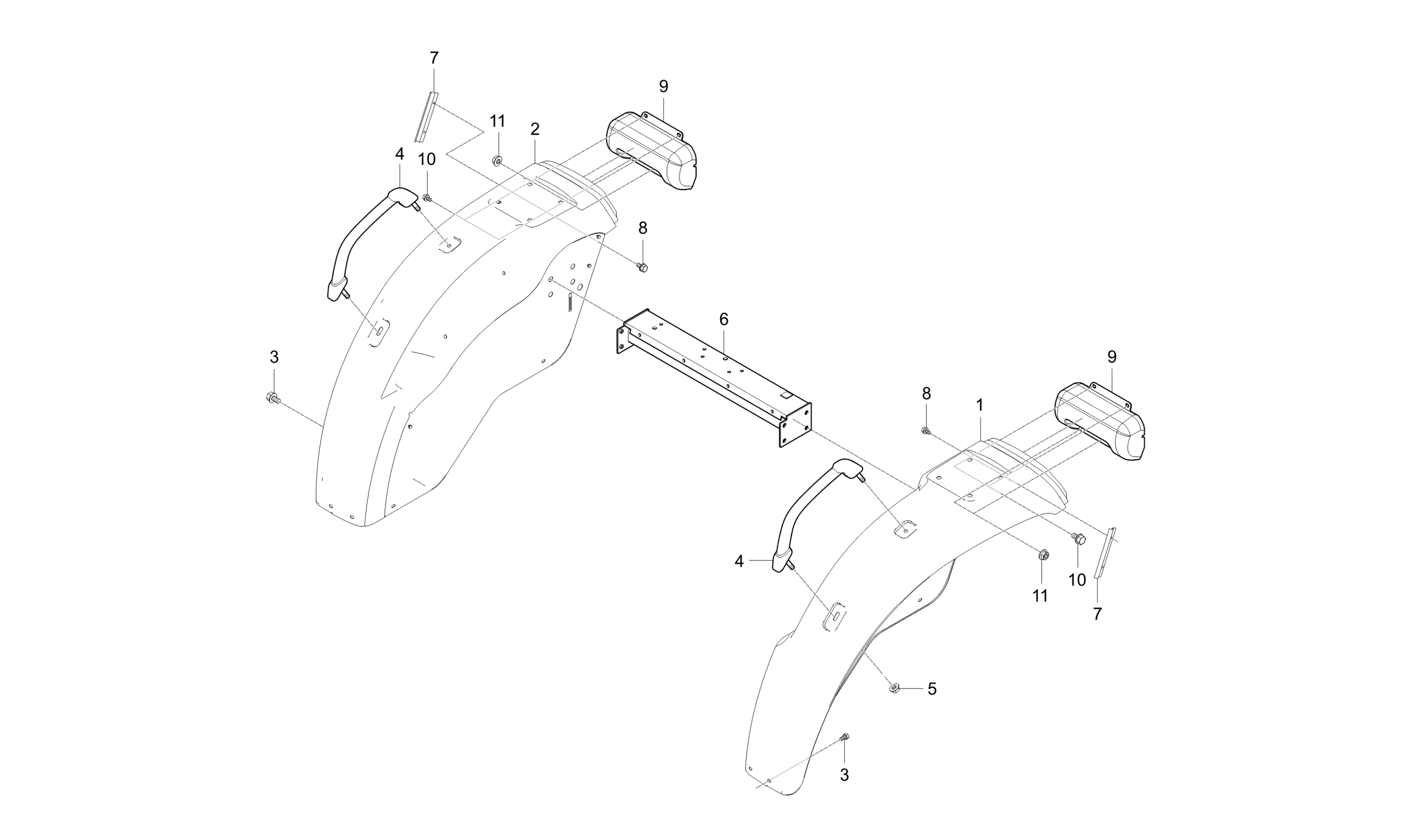

Diagram for FENDER GROUP - EX45H-T885A
  • 1

    TRK – ASSY,FENDER LH

    • Part No. T4125-95016
    • Applied Dates 2008-01-31 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $859.99
  • 1

    BOLT, HANDLE CUSHION dnr v

    • Part No. T4125-95017
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $859.99
  • 2

    ASSY, FENDER(RH) obs v, Replaced by T4125-95027OE

    • Part No. T4125-95026
    • Applied Dates 2008-01-31 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $0.00
  • 2

    ASSY FENDER, ROPS dnr v

    • Part No. T4125-95027
    • Compatibility New Replaces Old
    • *multiple options for # 2
    • 1 shown on diagram
    $1,064.99
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Applied Dates 2006-02-09 to 2006-04-17
    • M8XP1.25
    • 16 shown on diagram
    $1.79
  • 4

    GRIP dnr v

    • Part No. T4125-95081
    • Serial No. Up to GS2800002
    • *multiple options for # 4
    • 2 shown on diagram
    $62.99
  • 4

    GRIP v

    • Part No. T4125-95081BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 4
    • 2 shown on diagram
    $62.99
  • 5

    NUT, FLANGE

    • Part No. 02783-50100
    • Applied Dates 2006-02-09 and up
    • 4 shown on diagram
    $0.85
  • 6

    SUPPORT,FENDER

    • Part No. T4125-95215
    • Applied Dates 2007-03-31 and up
    • 1 shown on diagram
    $374.99
  • 7

    CLAMP,CORD

    • Part No. T4125-95222
    • Applied Dates 2006-04-18 and up
    • T1.2
    • 2 shown on diagram
    $9.99
  • 8 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • Applied Dates 2006-02-09 and up
    • M6XP1.0
    • 4 shown on diagram
    $1.39
  • 9

    COVER v, Replaced by T4121-75912BB

    • Part No. T4121-75912
    • Applied Dates 2008-01-31 to 2008-10-21
    • Serial No. Up to GS2800002
    • t3.0
    • *multiple options for # 9
    • 2 shown on diagram
    $0.00
  • 9

    COVER

    • Part No. T4121-75912BB
    • Compatibility No Interchange
    • Applied Dates 2008-10-22 and up
    • Serial No. HS2800001 and up
    • *multiple options for # 9
    • 1 shown on diagram
    $26.99
  • 10 Bolt M6 P1.00

    Bolt M6 P1.00

    • Part No. 01205-50616
    • Applied Dates 2006-05-23 and up
    • M6XP1.0
    • 4 shown on diagram
    $1.89
  • 11 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • Applied Dates 2006-05-23 and up
    • M6XP1.0
    • 4 shown on diagram
    $0.73
