THREE POINT LINK SYSTEM 1GROUP - EX45H-T795A

Kioti TRACTOR | DK Series | DK50HSE

Diagram for THREE POINT LINK SYSTEM 1GROUP - EX45H-T795A
  • 1

    TOPLINK v, Replaced by T4240-71102BB

    • Part No. T4240-71102
    • Applied Dates 2008-03-10 to 2008-10-27
    • Serial No. Up to GS2800002
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY LINK,TOP

    • Part No. T4240-71102BB
    • Compatibility No Interchange
    • Applied Dates 2008-10-28 and up
    • Serial No. HS2800001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $329.99
  • 2

    TOP LINK JOINT RH dnr v

    • Part No. 32240-7121-4
    • 1 shown on diagram
    $84.99
  • 3 JOINT, TOP LINK LH

    JOINT, TOP LINK LH

    • Part No. 32240-7122-4
    • 1 shown on diagram
    $85.99
  • 4

    LINK TOP v

    • Part No. T2563-71111
    • Applied Dates 2006-09-04 and up
    • 1 shown on diagram
    $99.99
  • 5

    NUT, TOP LINK

    • Part No. 32244-7118-1
    • M24P3.0
    • 1 shown on diagram
    $15.99
  • 6

    PIN, TOP LINK, Replaced by T5410-85391

    • Part No. T4620-85392
    • Applied Dates 2001-08-29 and up
    • DIA19
    • 1 shown on diagram
    $0.00
  • 7 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • Applied Dates 2001-08-29 and up
    • DIA16
    • 1 shown on diagram
    $2.99
  • 8 LOWER LINK ASSY LH v, Replaced by T2615-94013

    LOWER LINK ASSY LH v, Replaced by T2615-94013

    • Part No. T2615-94012
    • Applied Dates 2007-04-02 to 2009-03-30
    • Serial No. GS2800001 to GS2800002
    • *multiple options for # 8
    • 1 shown on diagram
    $419.99
  • 8

    ASSY,LOWER LINK(LH) dnr v

    • Part No. T2615-94012BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 8
    • 1 shown on diagram
    $419.99
  • 8

    LOWER LINK ASSY (LH) v

    • Part No. T2615-94013
    • Compatibility No Interchange
    • Applied Dates 2009-03-31 and up
    • Serial No. JS2800033 and up
    • *multiple options for # 8
    • 1 shown on diagram
    $664.99
  • 9

    BODY, LOWER LINK (LH) V

    • Part No. T2615-94022
    • Applied Dates 2007-04-02 to 2009-03-30
    • Serial No. Up to GS2800002
    • *multiple options for # 9
    • 1 shown on diagram
    $244.99
  • 9

    LWR LNK,LH V

    • Part No. T2615-94022BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 9
    • 1 shown on diagram
    $234.99

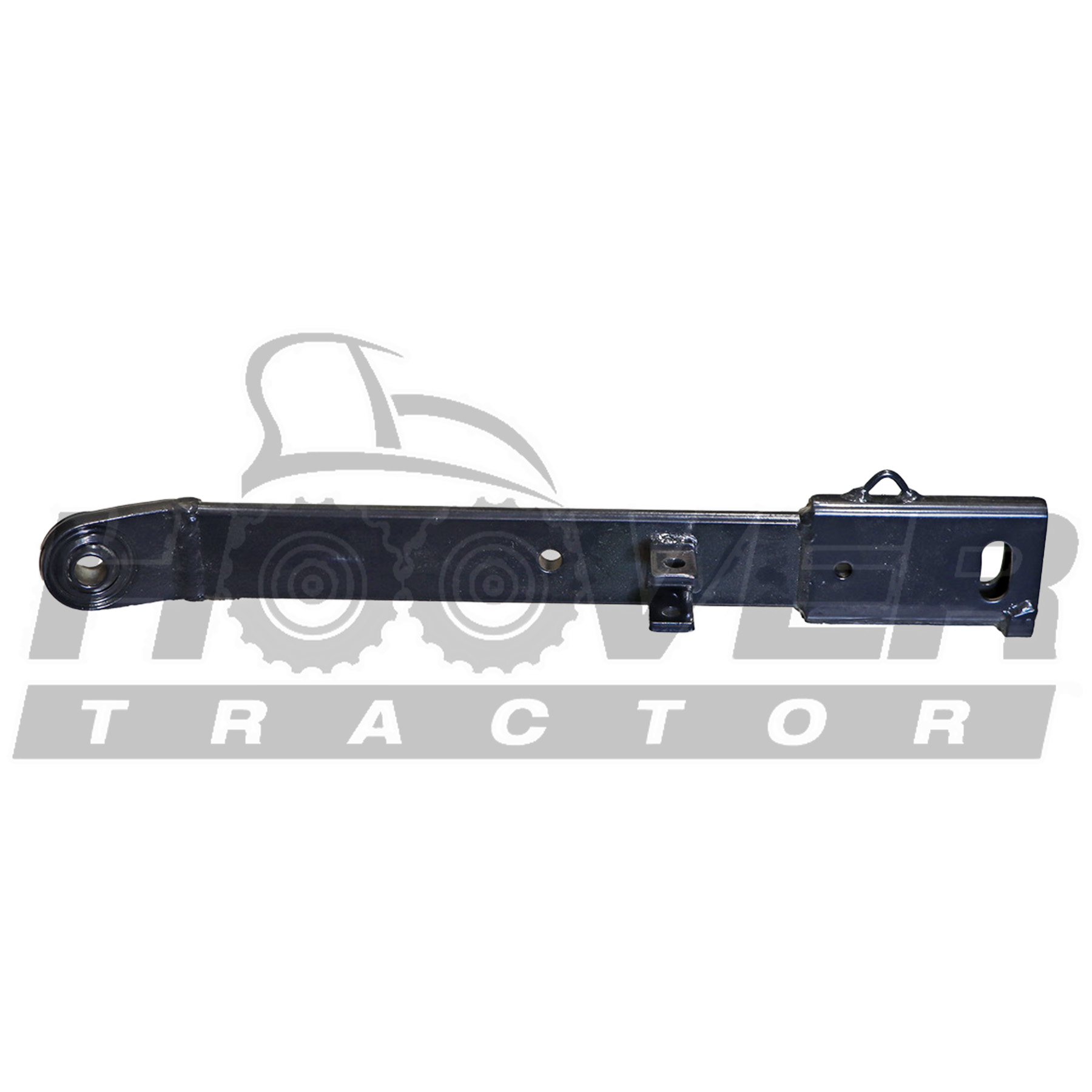

  • 9 BODY, LOWER LINK ( LH) v

    BODY, LOWER LINK ( LH) v

    • Part No. T2615-94023
    • Compatibility No Interchange
    • Applied Dates 2009-03-31 and up
    • *multiple options for # 9
    • 1 shown on diagram
    $394.99
  • 10

    HOUSING, LOWER LINK L, Replaced by T2615-93031BB

    • Part No. T2615-93031
    • Serial No. Up to GS2800002
    • *multiple options for # 10
    • 1 shown on diagram
    $99.99

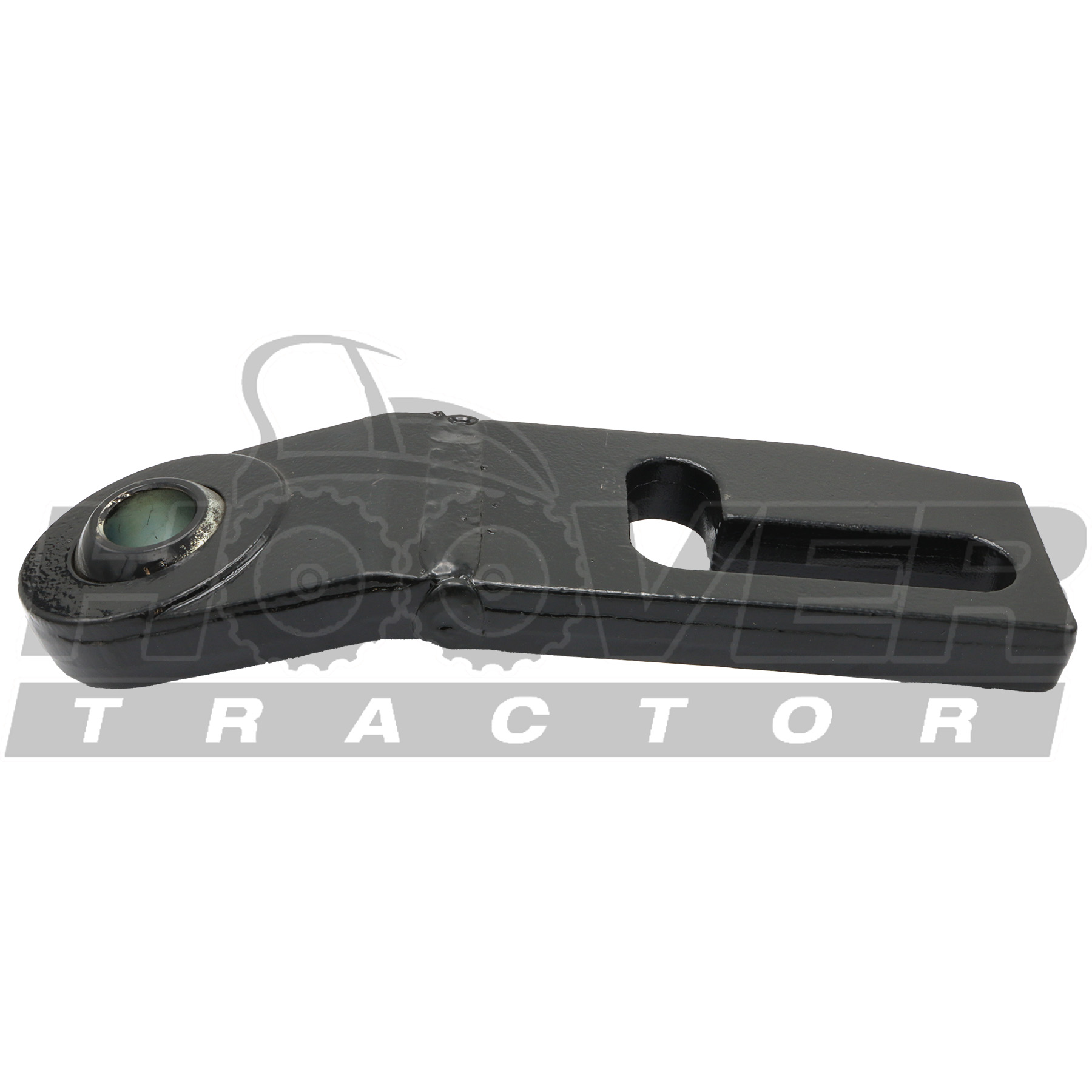

  • 10 HOUSING, LOWER LINK(LH)

    HOUSING, LOWER LINK(LH)

    • Part No. T2615-93031BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 10
    • 1 shown on diagram
    $199.99
  • 11

    COVER

    • Part No. T4680-93041
    • Serial No. Up to GS2800002
    • T2.3
    • *multiple options for # 11
    • 1 shown on diagram
    $29.99
  • 11 COVER, LWR

    COVER, LWR

    • Part No. T4680-93041BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 11
    • 1 shown on diagram
    $29.99
  • 12

    SPRING

    • Part No. T4850-93051
    • DIA2
    • 1 shown on diagram
    $3.99
  • 13 PIN

    PIN

    • Part No. T4680-93061
    • 1 shown on diagram
    $19.99
  • 14

    Flat Washer M22

    • Part No. 04011-50220
    • M22
    • 1 shown on diagram
    $1.69
  • 15

    PIN, SPLIT

    • Part No. 05511-50445
    • DIA3.6XL45
    • 1 shown on diagram
    $0.47
  • 16

    Pin, Joint M12x50mm

    • Part No. 05122-51250
    • DIA12XL50
    • 1 shown on diagram
    $2.99
  • 17

    Flat Washer M12

    • Part No. 04011-50120
    • M12
    • 1 shown on diagram
    $0.73
  • 18

    CARTER KEY v

    • Part No. 05511-50430
    • DIA3.6XL30
    • 1 shown on diagram
    $0.46
  • 19 PIN, LOWER LINK, Replaced by T4240-28533TP

    PIN, LOWER LINK, Replaced by T4240-28533TP

    • Part No. T4240-28533
    • 1 shown on diagram
    $0.00
  • 20 Flange Bolt M10 P1.25 x16 (01774-51016)

    Flange Bolt M10 P1.25 x16 (01774-51016)

    • Part No. 01774-51016
    • M10XP1.25
    • 1 shown on diagram
    $2.49
  • 21

    ASSY,CHECK LINK v, Replaced by T4125-91114

    • Part No. T4125-91113
    • Applied Dates 2008-02-04 and up
    • Serial No. HS2800001 and up
    • *multiple options for # 21
    • 1 shown on diagram
    $0.00

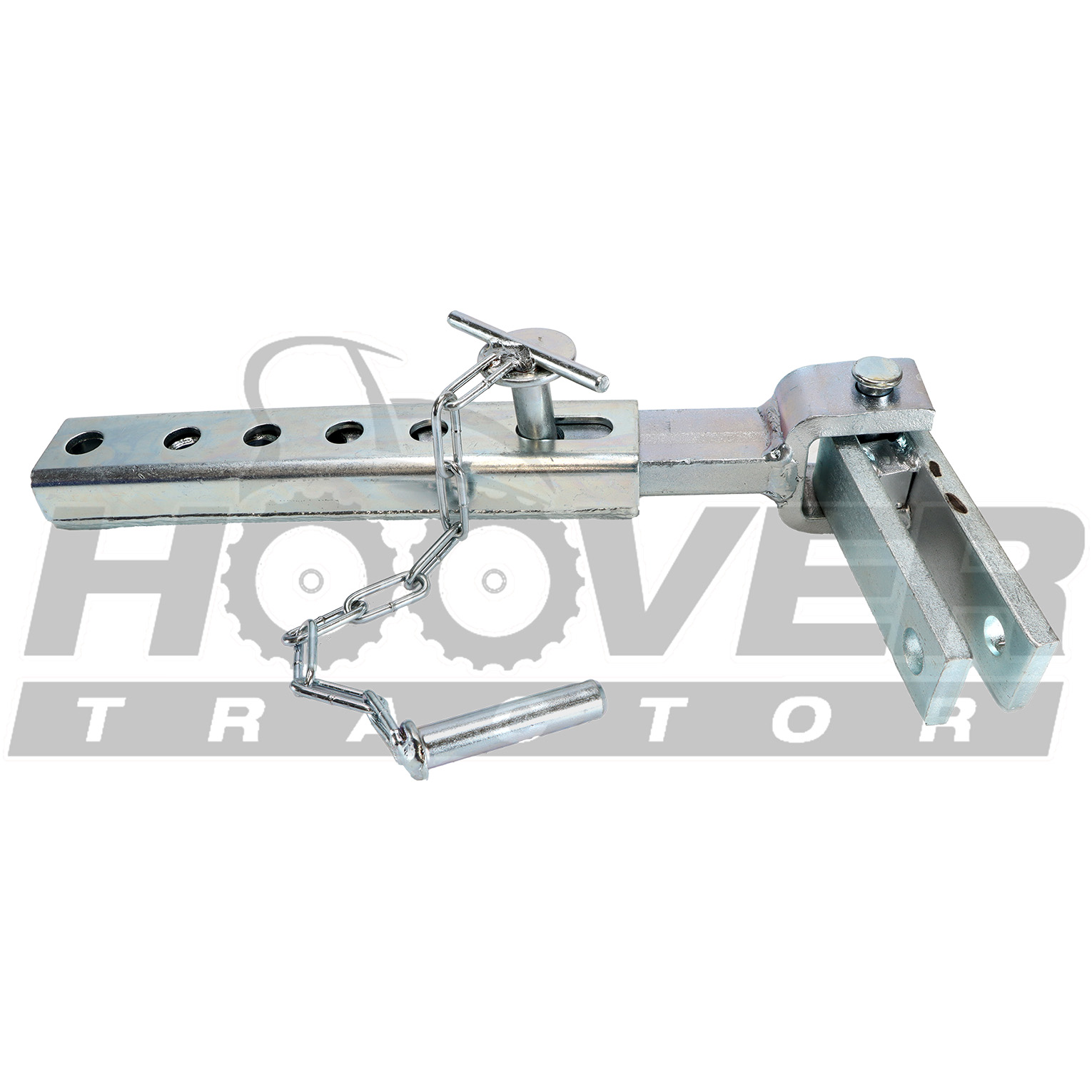

  • 21 ASSY, CHECK LINK v

    ASSY, CHECK LINK v

    • Part No. T4125-91114
    • Compatibility New Replaces Old
    • *multiple options for # 21
    • 1 shown on diagram
    $159.99
  • 22

    Checklink Clevis 4-5/8″ overall, Replaced by T2615-91123

    • Part No. T2615-91122
    • Applied Dates 2001-03-20 and up
    • 1 shown on diagram
    $0.00
  • 23

    ASSY 2 BRACKET v, Replaced by T2615-91133

    • Part No. T4125-91131
    • 1 shown on diagram
    $0.00
  • 24 ASSY,HOUSING

    ASSY,HOUSING

    • Part No. T2615-91143
    • Applied Dates 2008-02-04 and up
    • 1 shown on diagram
    $39.99
  • 25 ASSY, HOLL

    ASSY, HOLL

    • Part No. T4125-91162
    • Applied Dates 2007-04-02 and up
    • 1 shown on diagram
    $34.99
  • 26 Pin, Joint M12x65mm

    Pin, Joint M12x65mm

    • Part No. 05122-51265
    • DIA12*65
    • 1 shown on diagram
    $4.99
  • 27 Pin 12x45mm, Replaced by 32353-7189-3TP

    Pin 12x45mm, Replaced by 32353-7189-3TP

    • Part No. 32353-7189-3
    • 1 shown on diagram
    $12.99
  • 28 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • Applied Dates Up to 2008-02-03
    • M12
    • 1 shown on diagram
    $0.85
  • 29 Hair Pin

    Hair Pin

    • Part No. 05515-51200
    • DIA12
    • 1 shown on diagram
    $1.49
  • 30 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50435
    • DIA4
    • 1 shown on diagram
    $0.56
  • 31

    LOWER LINK ASSY RH v, Replaced by T2615-94113

    • Part No. T2615-94112
    • Applied Dates 2007-04-02 to 2009-03-30
    • Serial No. GS2800001 to GS2800002
    • *multiple options for # 31
    • 1 shown on diagram
    $0.00
  • 31

    LOWER-LINK ASSY (RH) v

    • Part No. T2615-94112BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 31
    • 1 shown on diagram
    $449.99
  • 31

    ASSY LOWER LINK (RH) v

    • Part No. T2615-94113
    • Compatibility No Interchange
    • Applied Dates 2009-03-31 and up
    • Serial No. JS2800033 and up
    • *multiple options for # 31
    • 1 shown on diagram
    $699.99
  • 32

    BODY,LOWER LINK RH, Replaced by T2615-94123

    • Part No. T2615-94122
    • Applied Dates 2007-04-02 to 2009-03-30
    • Serial No. Up to GS2800002
    • *multiple options for # 32
    • 1 shown on diagram
    $0.00
  • 32

    LWR LINK, RH

    • Part No. T2615-94122BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 32
    • 1 shown on diagram
    $209.99
  • 32

    BODY LOWER LINK RH v

    • Part No. T2615-94123
    • Compatibility No Interchange
    • Applied Dates 2009-03-31 and up
    • *multiple options for # 32
    • 1 shown on diagram
    $359.99
  • 33

    HOUSHING, LOWER LINK, Replaced by T2615-93131BB

    • Part No. T2615-93131
    • Serial No. Up to GS2800002
    • *multiple options for # 33
    • 1 shown on diagram
    $0.00
  • 33 HOUSING, LOWER LINK(RH)

    HOUSING, LOWER LINK(RH)

    • Part No. T2615-93131BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 33
    • 1 shown on diagram
    $199.99
  • 34

    COVER

    • Part No. T4680-93041
    • Serial No. Up to GS2800002
    • T2.3
    • *multiple options for # 34
    • 1 shown on diagram
    $29.99
  • 34 COVER, LWR

    COVER, LWR

    • Part No. T4680-93041BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 34
    • 1 shown on diagram
    $29.99
  • 35

    SPRING

    • Part No. T4850-93051
    • DIA2
    • 1 shown on diagram
    $3.99
  • 36 PIN

    PIN

    • Part No. T4680-93061
    • 1 shown on diagram
    $19.99
  • 37

    Flat Washer M22

    • Part No. 04011-50220
    • M22
    • 1 shown on diagram
    $1.69
  • 38

    PIN, SPLIT

    • Part No. 05511-50445
    • DIA3.6XL45
    • 1 shown on diagram
    $0.47
  • 39

    Pin, Joint M12x50mm

    • Part No. 05122-51250
    • DIA12XL50
    • 1 shown on diagram
    $2.99
  • 40

    Flat Washer M12

    • Part No. 04011-50120
    • M12
    • 1 shown on diagram
    $0.73
  • 41

    CARTER KEY v

    • Part No. 05511-50430
    • DIA3.6XL30
    • 1 shown on diagram
    $0.46
  • 42 PIN, LOWER LINK, Replaced by T4240-28533TP

    PIN, LOWER LINK, Replaced by T4240-28533TP

    • Part No. T4240-28533
    • 1 shown on diagram
    $0.00
  • 43 Flange Bolt M10 P1.25 x16 (01774-51016)

    Flange Bolt M10 P1.25 x16 (01774-51016)

    • Part No. 01774-51016
    • M10XP1.25
    • 1 shown on diagram
    $2.49
  • 44 RING

    RING

    • Part No. T2350-81151
    • DIA6
    • 1 shown on diagram
    $14.99
