DYNAMO GROUP - T5710-G712A

Kioti TRACTOR | DK Series | DK5010HS

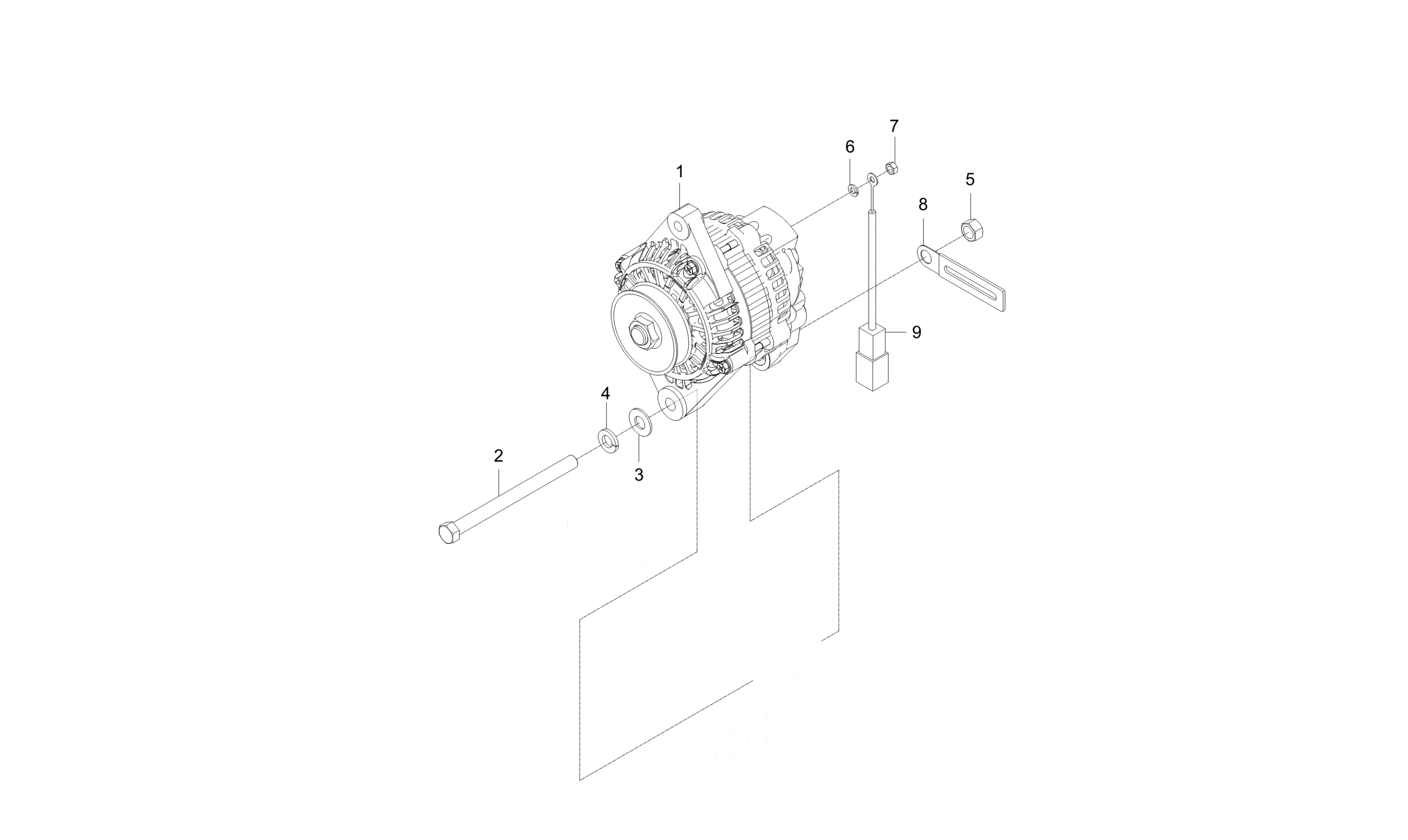

Diagram for DYNAMO GROUP - T5710-G712A
  • 1

    ASSY, ALTERNATOR

    • Part No. E7230-64012
    • Applied Dates Up to 2015-06-30
    • Serial No. UR8100001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $709.99
  • 1

    ALTERNATOR ASSY 75AMP, Replaced by E7251-64012

    • Part No. E7251-64011
    • Compatibility No Interchange
    • Applied Dates 2015-07-01 and up
    • Serial No. RR8100001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 2

    BOLT

    • Part No. 01173-51005
    • Applied Dates Up to 2015-06-30
    • Serial No. UR8100001 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $7.49
  • 2

    FLANGE_BOLT

    • Part No. 01774-51003
    • Compatibility No Interchange
    • Applied Dates 2015-07-01 and up
    • Serial No. RR8100001 and up
    • M10XP1.25
    • *multiple options for # 2
    • 1 shown on diagram
    $4.99
  • 3 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $0.73
  • 4 Lock Washer M10

    Lock Washer M10

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 5 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 6 Spring Lock Washer M5

    Spring Lock Washer M5

    • Part No. 04512-50050
    • Applied Dates Up to 2015-06-30
    • Serial No. UR8100001 and up
    • M5
    • *multiple options for # 6
    • 1 shown on diagram
    $0.55
  • 6 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Compatibility No Interchange
    • Applied Dates 2015-07-01 and up
    • Serial No. RR8100001 and up
    • M08
    • *multiple options for # 6
    • 1 shown on diagram
    $0.61
  • 7 Nut M5 P0.80

    Nut M5 P0.80

    • Part No. 02054-50050
    • Applied Dates Up to 2015-06-30
    • Serial No. UR8100001 and up
    • M5*P1.0
    • *multiple options for # 7
    • 1 shown on diagram
    $0.43
  • 7 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • Compatibility No Interchange
    • Applied Dates 2015-07-01 and up
    • Serial No. RR8100001 and up
    • M8XP1.25
    • *multiple options for # 7
    • 1 shown on diagram
    $0.85
  • 8

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 1 shown on diagram
    $4.99
  • 9

    WIRING HARNESS(ALTERNATOR)

    • Part No. T4686-69491
    • 1 shown on diagram
    $12.99
