HEAD LIGHT GROUP - TD2-G521001

Kioti TRACTOR | DK Series | DK5010HS

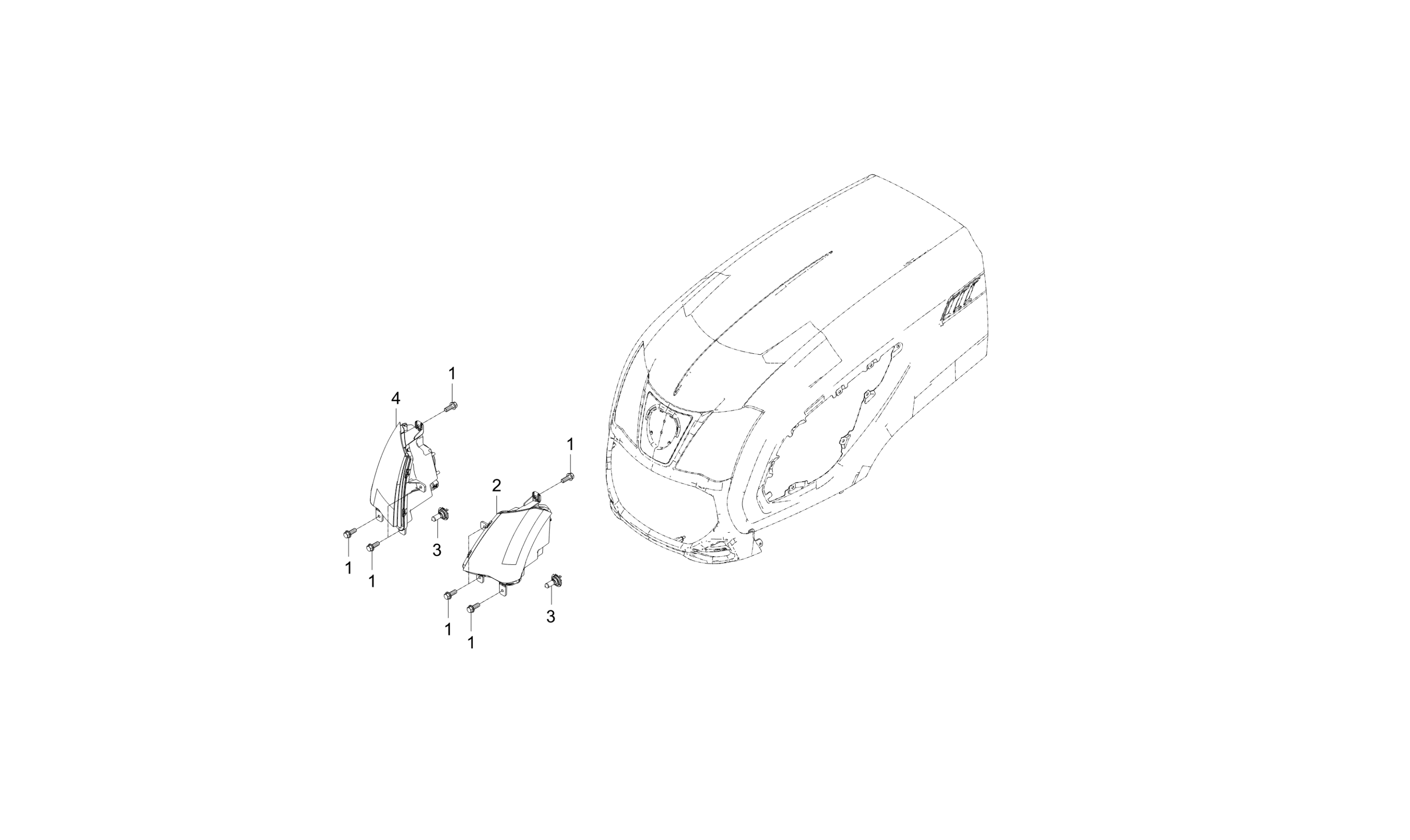

Diagram for HEAD LIGHT GROUP - TD2-G521001
  • 1 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 8 shown on diagram
    $1.89
  • 2

    ASSY LAMP,HEAD LH

    • Part No. T5710-69512
    • Applied Dates 2017-06-01 to 2017-05-25
    • Serial No. Up to TR8100022
    • *multiple options for # 2
    • 1 shown on diagram
    $324.99
  • 2 HEAD LAMP ASSY LH

    HEAD LAMP ASSY LH

    • Part No. T5710-69513
    • Compatibility New Replaces Old
    • Applied Dates 2017-06-01 and up
    • Serial No. TR8100023 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $264.99
  • 3

    BULB

    • Part No. T2555-69571
    • H7 12V 55W
    • 1 shown on diagram
    $43.99
  • 4

    ASSY LAMP,HEAD RH

    • Part No. T5710-69522
    • Applied Dates 2014-07-07 to 2017-05-31
    • Serial No. Up to TR8100022
    • *multiple options for # 4
    • 1 shown on diagram
    $314.99
  • 4 HEADLIGHT RH

    HEADLIGHT RH

    • Part No. T5710-69523
    • Compatibility New Replaces Old
    • Applied Dates 2017-06-01 and up
    • Serial No. TR8100023 and up
    • *multiple options for # 4
    • 1 shown on diagram
    $264.99
