FUEL HEATER OPTION GROUP - TD2-G516001

Kioti TRACTOR | DK Series | DK5010HS

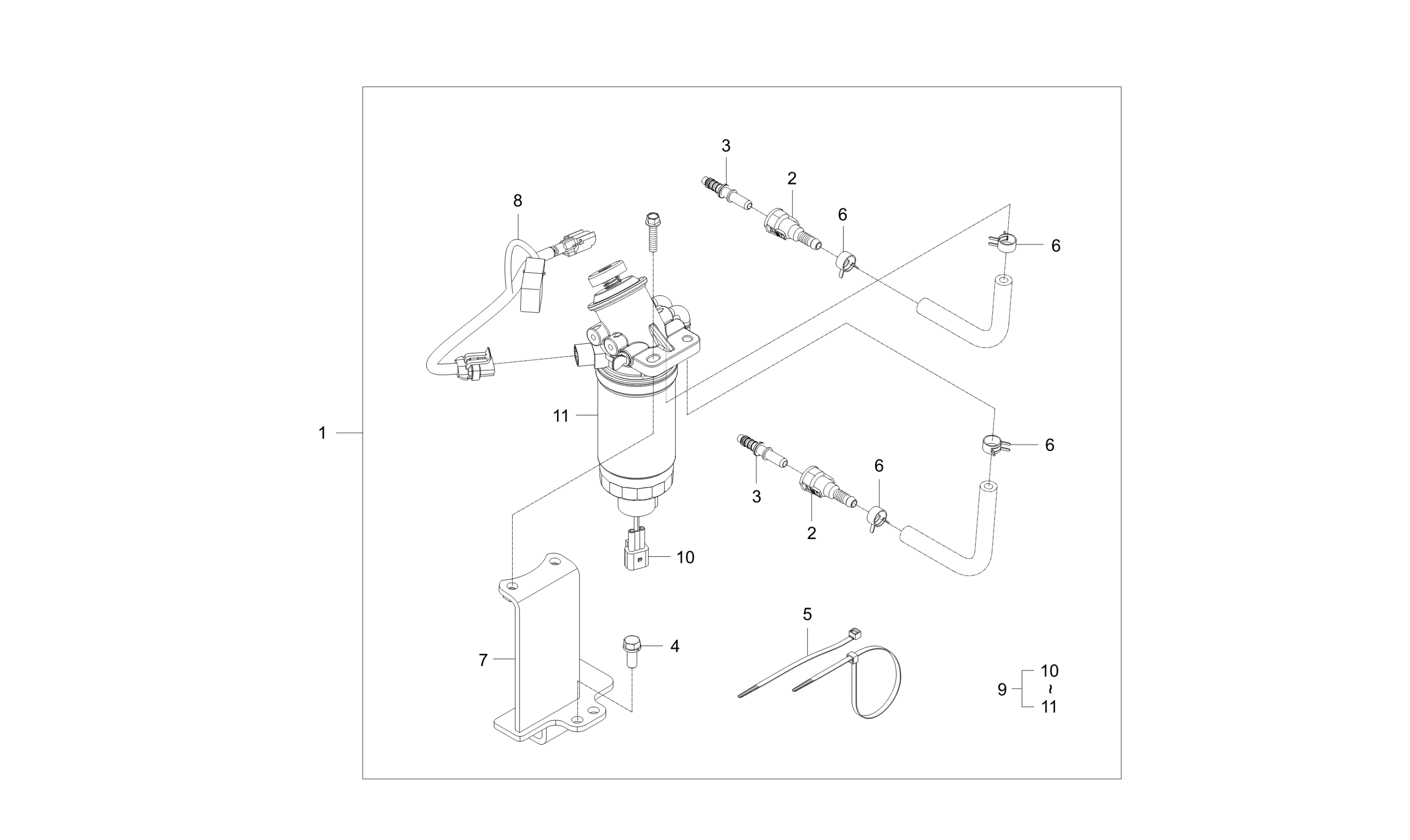

Diagram for FUEL HEATER OPTION GROUP - TD2-G516001
  • 1

    Fuel Heater Kit

    • Part No. T5758-A7072
    • 1 shown on diagram
    $0.00
  • 2

    QUICK CONNECTOR

    • Part No. F6800-16131
    • 2 shown on diagram
    $15.99
  • 3

    ADAPTER

    • Part No. F6800-16181
    • Applied Dates Up to 2019-07-07
    • OD8.4*ID4.7
    • 2 shown on diagram
    $9.49
  • 4 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 5

    BAND CORD

    • Part No. T2185-82551
    • Applied Dates 2018-04-10 to 2019-09-29
    • L290
    • 2 shown on diagram
    $1.29
  • 6

    CLAMP, HOSE

    • Part No. 09318-88130
    • DIA13
    • 4 shown on diagram
    $1.09
  • 7

    BRACKET, FUEL-FILTER v

    • Part No. F5835-16142
    • 1 shown on diagram
    $54.99
  • 8

    WIRE,CONNECTION

    • Part No. T5758-69341
    • Applied Dates 2019-02-01 and up
    • 1 shown on diagram
    $67.99
  • 9

    ASSYFILTER,FUEL

    • Part No. F5800-16403
    • 1 shown on diagram
    $209.99
  • 10

    SENSOR, FUEL WATER M12 P1.125

    • Part No. F6800-16121
    • 1 shown on diagram
    $66.99
  • 11 Main Fuel Filter (Tier 4) 2018 & before

    Main Fuel Filter (Tier 4) 2018 & before

    • Part No. F6800-16411
    • 1 shown on diagram
    $56.99
