REAR COMBINATION LAMP GROUP - TD2-G522501

Kioti TRACTOR | DK Series | DK5010HS

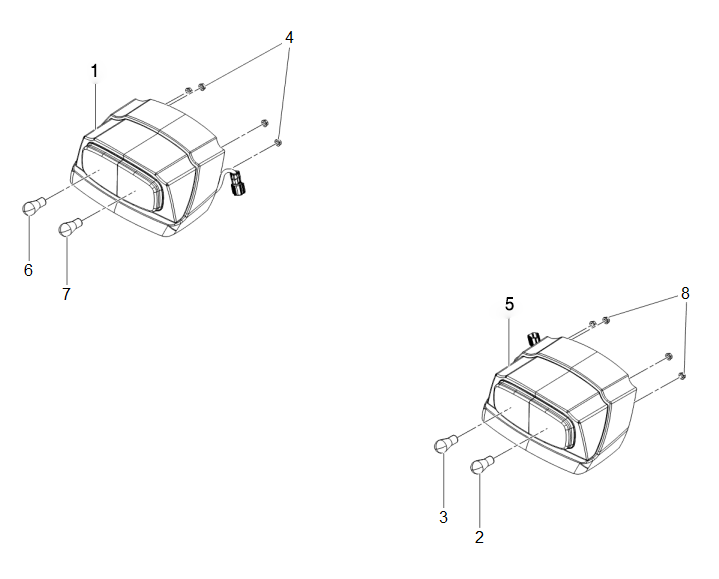

Diagram for REAR COMBINATION LAMP GROUP - TD2-G522501
  • 1

    ASS’Y TAIL LAMP(LEFT)

    • Part No. T5710-69712
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    ASS’Y TAIL LAMP(LEFT)

    • Part No. T5710-69713
    • Compatibility New Replaces Old
    • Applied Dates 2017-05-26 to 2017-06-06
    • Serial No. TR8100001 to TR8100022
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    Tail Lamp (LH)

    • Part No. T5710-69714
    • Compatibility New Replaces Old
    • Applied Dates 2017-08-18 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $214.99
  • 2 BULB 1156

    BULB 1156

    • Part No. T5210-69731
    • 12VP21W
    • 1 shown on diagram
    $7.99
  • 3 BULB

    BULB

    • Part No. T5210-69741
    • 12VP21/5W
    • 1 shown on diagram
    $8.49
  • 4 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • Applied Dates 2015-02-11 and up
    • M6XP1.0
    • 4 shown on diagram
    $0.73
  • 5

    ASS’Y TAIL LAMP(RIGHT)

    • Part No. T5710-69722
    • *multiple options for # 5
    • 1 shown on diagram
    $0.00
  • 5

    ASS’Y TAIL LAMP(RIGHT)

    • Part No. T5710-69723
    • Compatibility New Replaces Old
    • Applied Dates 2017-05-26 to 2017-06-06
    • Serial No. TR8100001 to TR8100022
    • *multiple options for # 5
    • 1 shown on diagram
    $0.00
  • 5 Tail Lamp (RH)

    Tail Lamp (RH)

    • Part No. T5710-69724
    • Compatibility New Replaces Old
    • Applied Dates 2017-08-18 and up
    • *multiple options for # 5
    • 1 shown on diagram
    $229.99
  • 6 BULB 1156

    BULB 1156

    • Part No. T5210-69731
    • 12VP21W
    • 1 shown on diagram
    $7.99
  • 7 BULB

    BULB

    • Part No. T5210-69741
    • 12VP21/5W
    • 1 shown on diagram
    $8.49
  • 8 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.73
