START CONTROL GROUP - TC2-G515015

Kioti TRACTOR | CK Series | CK3520HSEB

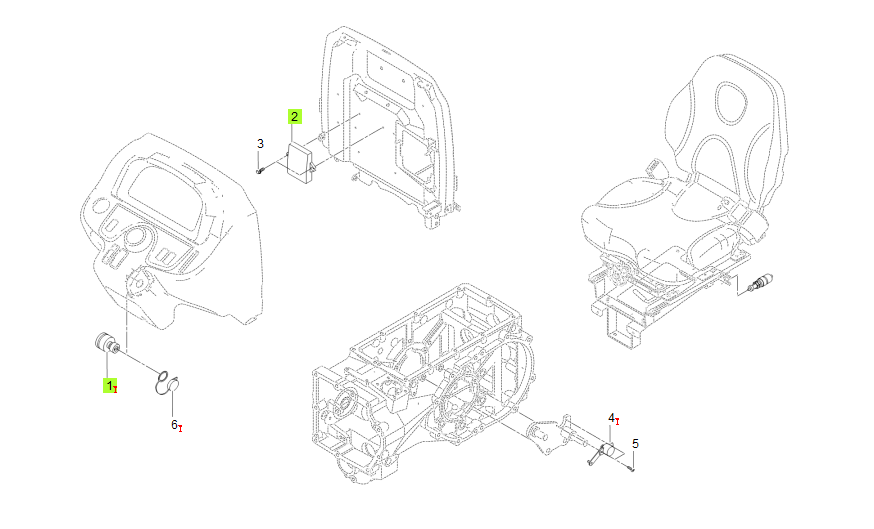

Diagram for START CONTROL GROUP - TC2-G515015

1
Ignition Switch w/ Shutter (Epoxy filled), Replaced by TF15-0196A
- Part No. T5520-75171
- * multiple options for #1
- 1 shown on diagram
$.00

Ignition Switch w/ Shutter (Epoxy filled), Replaced by TF15-0196A quantity
1
Ignition Starter Switch With Shutter
- Part No. TF15-0196A
- Compatibility Interchngable
- * multiple options for #1
- 1 shown on diagram
$119.99

Ignition Starter Switch With Shutter quantity
2
ASSY SAFETY CONTROL UNIT
- Part No. TC25-0124B
- Applied Dates 2019-07-03 and up
- 1 shown on diagram
$209.99

ASSY SAFETY CONTROL UNIT quantity
3
BOLT, FLANGE
- Part No. 01754-50610
- M6XP1.0
- 2 shown on diagram
$1.09

BOLT, FLANGE quantity
4

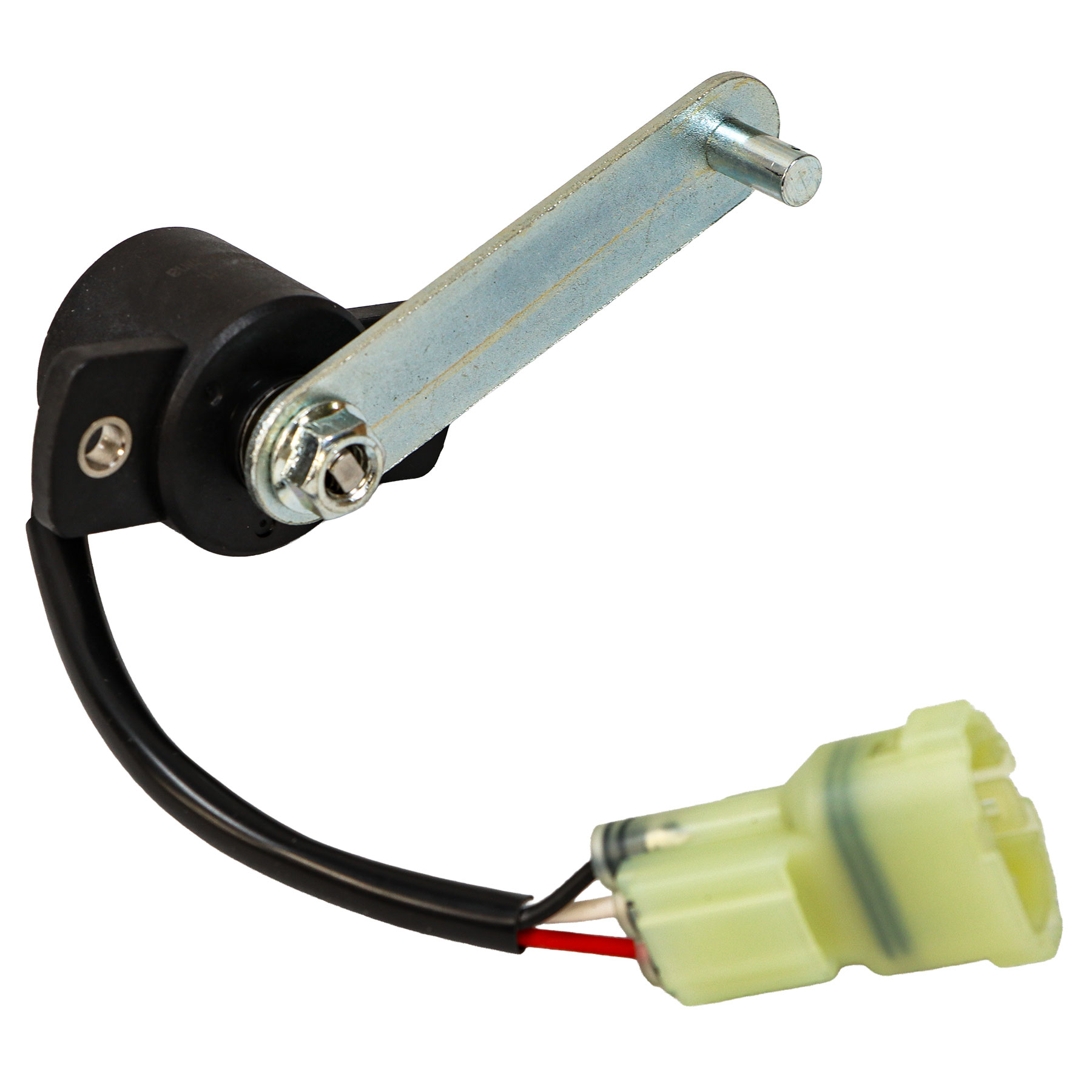

ASSY SENSOR, STROKE -V-
- Part No. TG35-0136A
- 1 shown on diagram
$144.99

ASSY SENSOR, STROKE -V- quantity
5
BOLT,SCREW
- Part No. 03054-50408
- M4XP0.7
- 2 shown on diagram
$0.56

BOLT,SCREW quantity
6

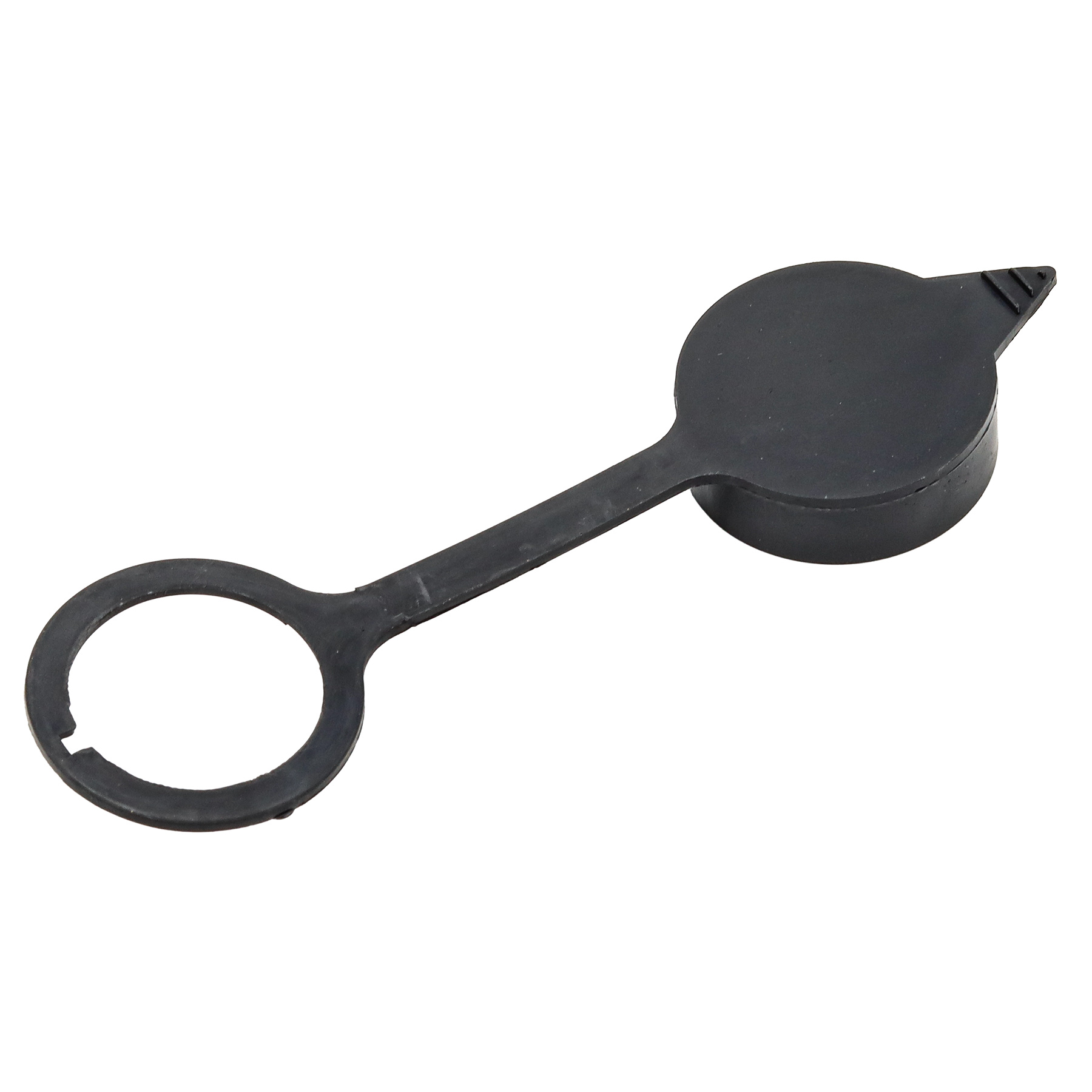

COVER STARTER SWITCH WATERPROOF, BLACK
- Part No. T4837-77774
- Applied Dates 2019-07-03 and up
- 1 shown on diagram
$5.99

COVER STARTER SWITCH WATERPROOF, BLACK quantity
