BEACON LIGHT GROUP(OPTION) - TC2-G591003

Kioti TRACTOR | CK Series | CK3520CHSEB

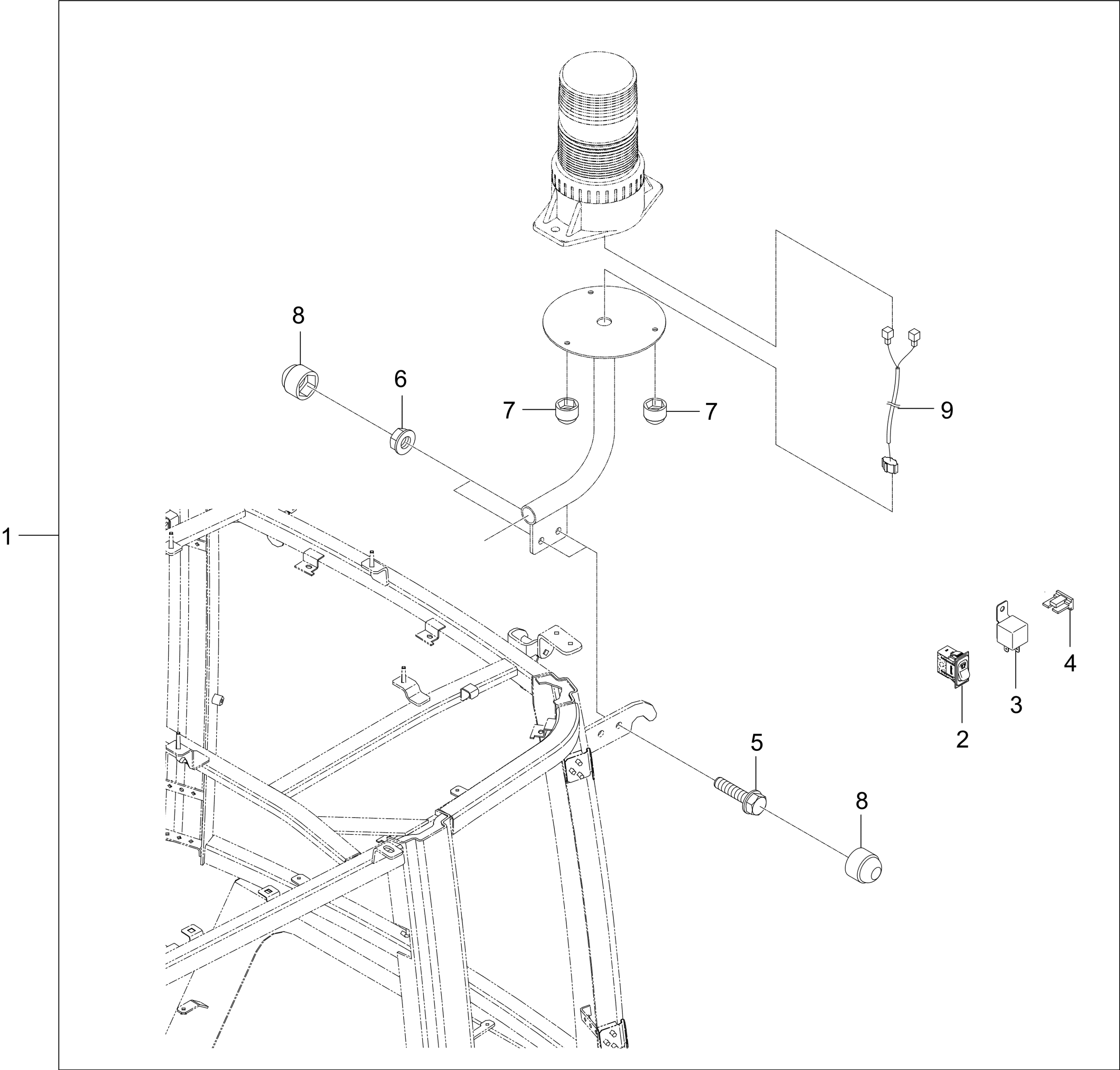

Diagram for BEACON LIGHT GROUP(OPTION) - TC2-G591003
  • 1

    BEACON LIGHT KIT

    • Part No. TC25-A0003A
    • 1 shown on diagram
    $0.00
  • 2

    SWITCH, HAZARD v

    • Part No. T4931-67721
    • 1 shown on diagram
    $92.99

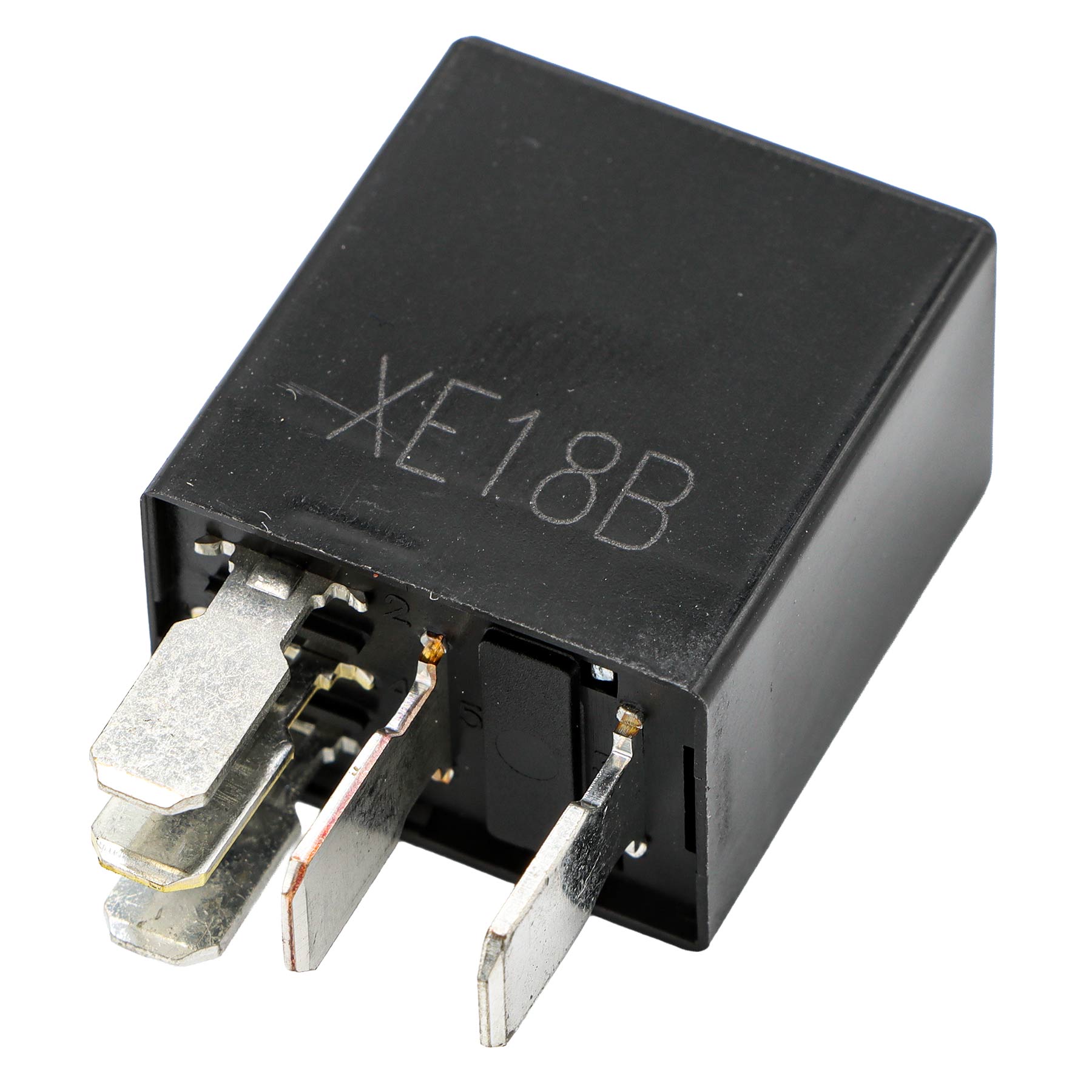

  • 3 RELAY 5P

    RELAY 5P

    • Part No. T5710-69971
    • 1 shown on diagram
    $17.99
  • 4

    FUSE 20A

    • Part No. T5210-68682
    • 20A (Mini LPF)
    • 1 shown on diagram
    $2.49
  • 5 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
    $1.19
  • 6 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 7 NUT CAP M6

    NUT CAP M6

    • Part No. T4680-93211
    • 3 shown on diagram
    $1.29
  • 8 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 4 shown on diagram
    $1.49
  • 9

    WIRE 2, LAMP CONNECTION HARNESS v

    • Part No. T4688-69321
    • 1 shown on diagram
    $19.99
