FRONT WORKING LAMP GROUP(OPTION) - TC2-G593005

Kioti TRACTOR | CK Series | CK3520

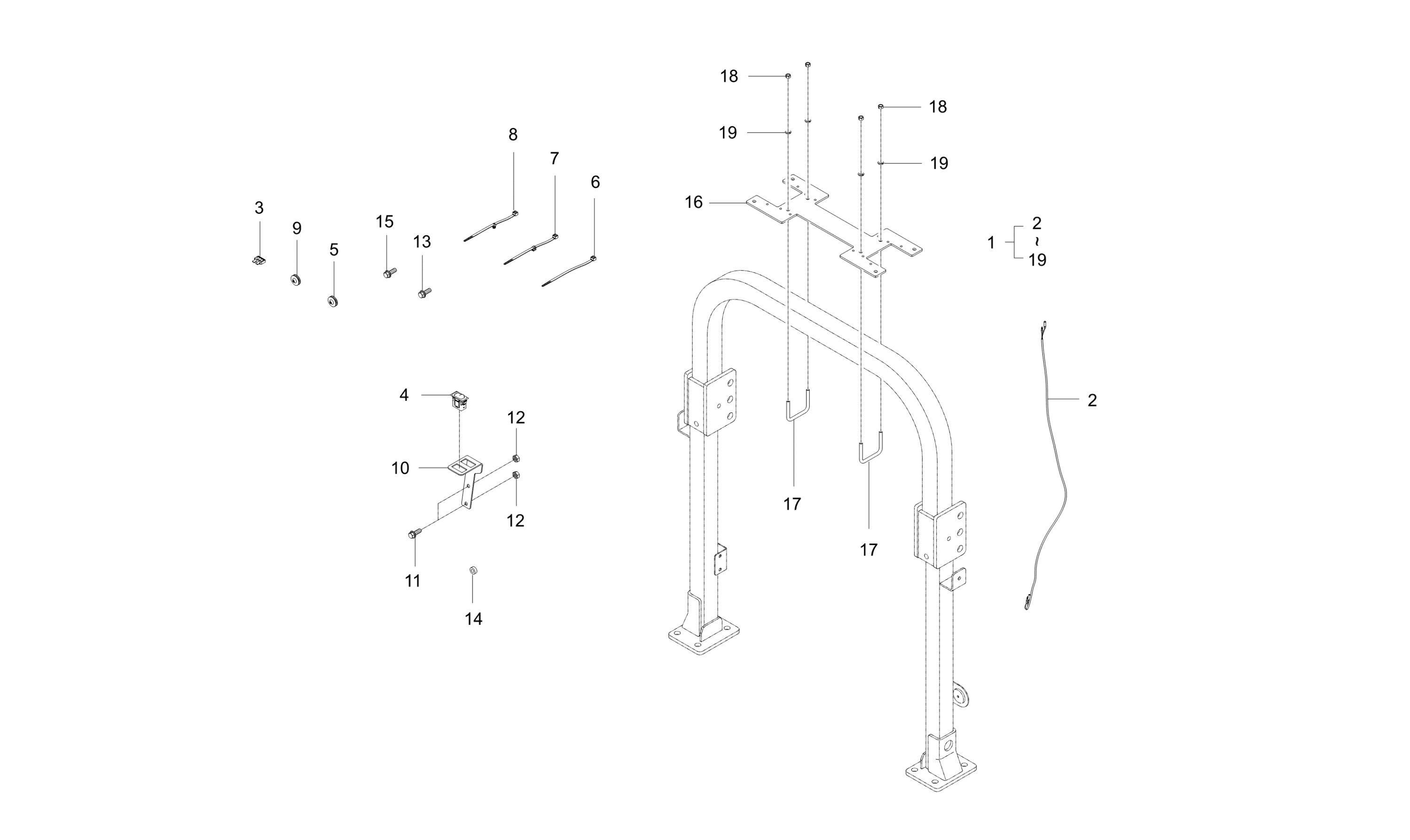

Diagram for FRONT WORKING LAMP GROUP(OPTION) - TC2-G593005
  • 1

    OPTION KIT, WORK LAMP ASSY KIT-FRONT

    • Part No. TC25-F0014A
    • 1 shown on diagram
    $.00
  • 2

    ASSY WIRE HARNESS, WORKING LAMP-FR

    • Part No. TD25-0212A
    • 1 shown on diagram
    $.00
  • 3

    FUSE 25A

    • Part No. T5210-68692
    • 25A (Mini LPF)
    • 1 shown on diagram
    $2.49
  • 4 WORKING LAMP SWITCH, FR

    WORKING LAMP SWITCH, FR

    • Part No. T5535-54221
    • 1 shown on diagram
    $82.99
  • 5

    GROMMET

    • Part No. LF16-0227A
    • 1 shown on diagram
    $4.49
  • 6

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 20 shown on diagram
    $1.29
  • 7

    BAND v

    • Part No. T2198-82571
    • 2 shown on diagram
    $1.99
  • 8

    CLAMP

    • Part No. T5270-82551
    • 2 shown on diagram
    $6.99
  • 9

    GROMMET

    • Part No. LF16-0227A
    • 1 shown on diagram
    $4.49
  • 10

    BRACKET, SWITCH

    • Part No. TC26-2146A
    • T3.0
    • 1 shown on diagram
    $.00
  • 11

    FLANGE_BOLT

    • Part No. 01754-51022
    • M10XP1.5
    • 2 shown on diagram
    $0.5
  • 12 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
  • 13
    • Part No. 01135-51030
    • M10XP1.25
    • 2 shown on diagram
  • 14

    SPACER

    • Part No. TC26-2171A
    • INR:10.5 / OTR:
    • 2 shown on diagram
    $.00
  • 15

    FLANGE BOLT v

    • Part No. 01774-51030
    • 2 shown on diagram
    $2.49
  • 16

    PLATE

    • Part No. TC26-2137A
    • T6.0
    • 1 shown on diagram
    $.00
  • 17

    U BOLT v

    • Part No. T2185-85101005
    • M10XP1.5
    • 2 shown on diagram
    $13.99
  • 18

    NUT

    • Part No. 02014-50100
    • M10XP1.5
    • 4 shown on diagram
    $0.79
  • 19 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
