FRONT ROPS GROUP(OPT.-US) - TC2-G6G3301

Kioti TRACTOR | CK Series | CK3520

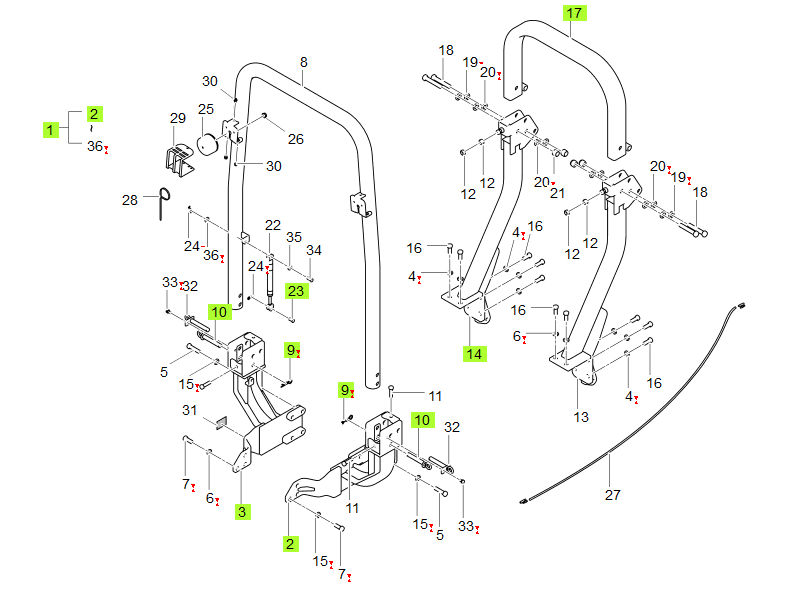

Diagram for FRONT ROPS GROUP(OPT.-US) - TC2-G6G3301
  • 1

    FRONT ROPS KIT(US)

    • Part No. TC26-A0092D
    • 1 shown on diagram
    $.00
  • 2

    SUPPORT, ROPS-LH

    • Part No. TC26-0943C
    • 1 shown on diagram
    $734.99
  • 3

    SUPPORT, ROPS-RH

    • Part No. TC26-0947C
    • 1 shown on diagram
    $754.99
  • 4

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 8 shown on diagram
    $0.9
  • 5

    BOLT

    • Part No. 01173-51455
    • M14P1.5*55
    • 8 shown on diagram
    $4.99
  • 6

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 6 shown on diagram
    $0.9
  • 7

    BOLT M14 P1.50 × 35mm

    • Part No. 01173-51435
    • M14XP1.5
    • 6 shown on diagram
    $3.49
  • 8

    ASSY ROPS-FR US

    • Part No. TC26-1569A
    • 1 shown on diagram
    $719.99
  • 9 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • DIA16
    • 2 shown on diagram
    $2.99
  • 10

    PIN

    • Part No. T5738-55291
    • 2 shown on diagram
    $21.99
  • 11

    BOLT dnr v

    • Part No. T5710-55311
    • M12XP1.75
    • 4 shown on diagram
    $4.99
  • 12

    NUT

    • Part No. 02114-50120
    • M12*P1.75
    • 4 shown on diagram
    $0.85
  • 13

    SUPPORT, ROPS-LH

    • Part No. TC26-1315A
    • 1 shown on diagram
    $424.99
  • 14

    SUPPORT,RH

    • Part No. T5810-66834
    • 1 shown on diagram
    $329.99
  • 15

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 12 shown on diagram
    $0.9
  • 16

    BOLT

    • Part No. T2230-85242
    • M14*2.0*32
    • 12 shown on diagram
    $4.99
  • 17

    ASSY ROPS v

    • Part No. TC26-0948B
    • 1 shown on diagram
    $249.99
  • 18 BOLT

    BOLT

    • Part No. 01173-51690
    • 4 shown on diagram
    $9.99
  • 19 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 4 shown on diagram
    $1.29
  • 20 Flat Washer M16

    Flat Washer M16

    • Part No. 04011-50160
    • M16
    • 8 shown on diagram
    $1.19
  • 21 NUT

    NUT

    • Part No. T2181-97191
    • 4 shown on diagram
    $7.49
  • 22

    ASS’Y, AIR CYLINDER

    • Part No. T5855-51881
    • 1 shown on diagram
    $83.99
  • 23

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 1 shown on diagram
    $2.99
  • 24

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 25

    ASSY LAMP, TURN SIGNAL

    • Part No. TD25-0052A
    • 2 shown on diagram
    $66.99
  • 26

    FLANGE NUT

    • Part No. 02751-50050
    • 4 shown on diagram
    $0.5
  • 27

    WIRE HARNESS, CONNECTING DIRECTION LAMP

    • Part No. TC25-0099A
    • 2 shown on diagram
    $29.99
  • 28

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 10 shown on diagram
    $1.29
  • 29

    BRACKET, COVER

    • Part No. TC26-1573A
    • T3.2
    • 2 shown on diagram
    $38.99
  • 30

    BOLT

    • Part No. 01205-50616
    • M6XP1.0
    • 6 shown on diagram
    $1.89
  • 31

    LABEL, ROPS-ISO 12003-1

    • Part No. TC26-1570A
    • T0.5
    • 1 shown on diagram
    $4.99
  • 32

    FIXED PIN

    • Part No. TB16-0127B
    • 2 shown on diagram
    $28.99
  • 33 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 34

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 1 shown on diagram
    $3.49
  • 35

    WASHER 3

    • Part No. T4682-65311
    • 1 shown on diagram
    $0.79
  • 36 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $.73
