LOWER LINK GROUP(OPTION) - TC2-G6G2401

Kioti TRACTOR | CK Series | CK3520

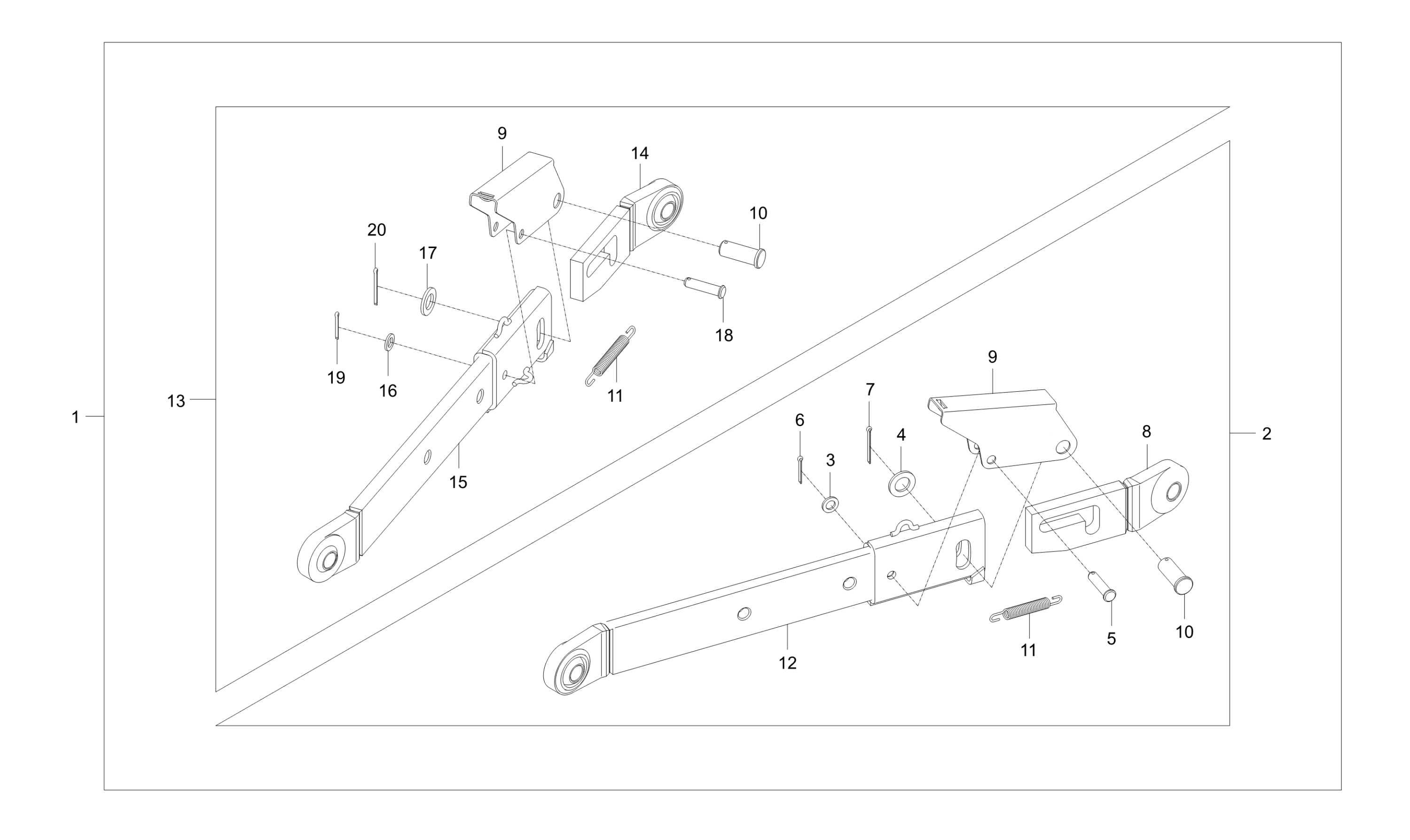

Diagram for LOWER LINK GROUP(OPTION) - TC2-G6G2401
  • 1
    • Part No. T5855-A5201
    • 1 shown on diagram
  • 2

    LOWER LINK ASSY LH

    • Part No. T5815-65312
    • 1 shown on diagram
    $664.99
  • 3

    Flat Washer M12

    • Part No. 04011-50120
    • M12
    • 1 shown on diagram
    $.73
  • 4

    Flat Washer M20

    • Part No. 04011-50200
    • M20
    • 1 shown on diagram
    $1.59
  • 5

    Pin, Joint M12x50mm

    • Part No. 05122-51250
    • DIA12XL50
    • 1 shown on diagram
    $2.99
  • 6

    CARTER KEY v

    • Part No. 05511-50430
    • DIA3.6XL30
    • 1 shown on diagram
    $0.46
  • 7

    PIN, SPLIT

    • Part No. 05511-50445
    • DIA3.6XL45
    • 1 shown on diagram
    $0.47
  • 8
    • Part No. T2615-93031
    • 1 shown on diagram

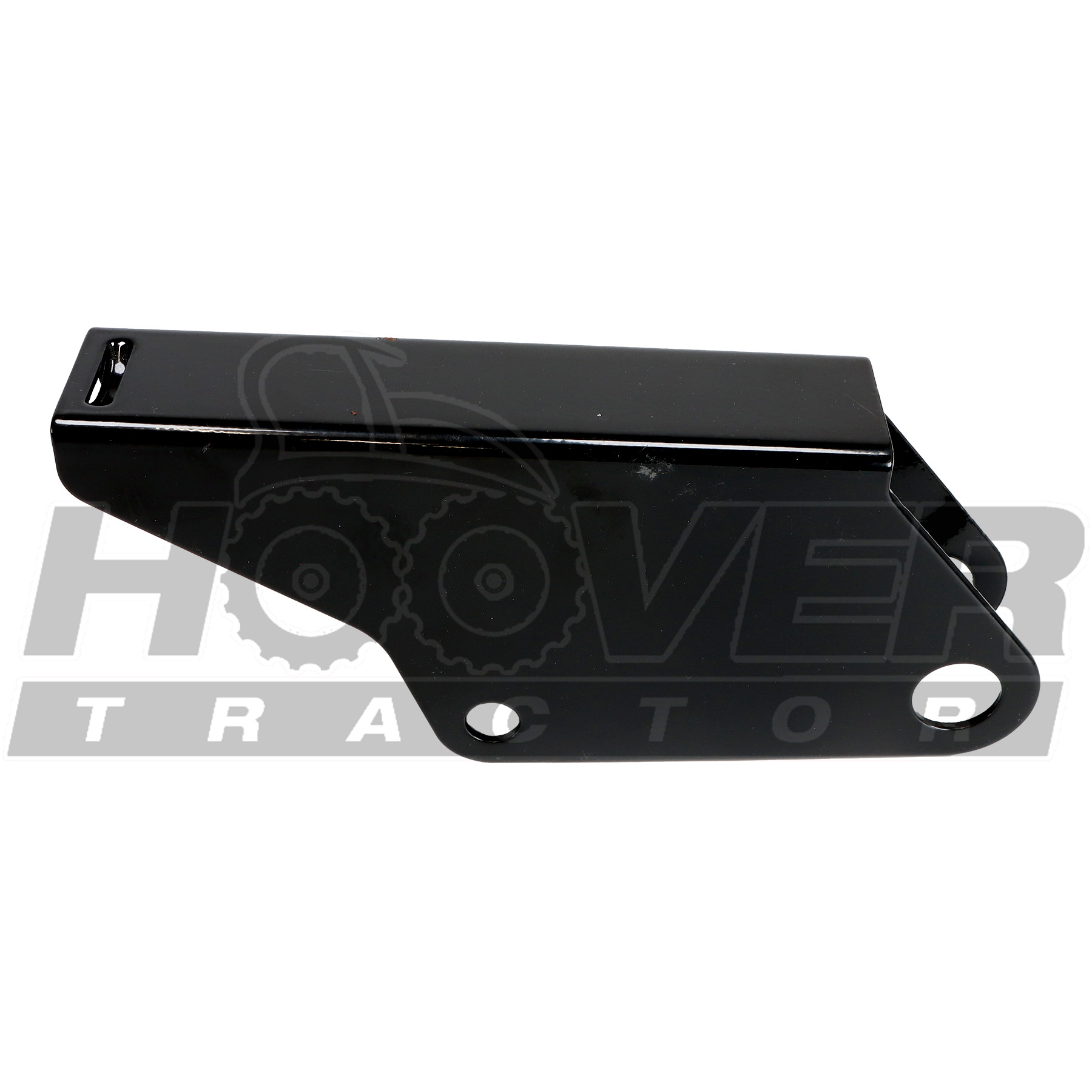

  • 9 COVER, LWR

    COVER, LWR

    • Part No. T4680-93041BB
    • 1 shown on diagram
    $29.99
  • 10
    • Part No. T4680-93061
    • 1 shown on diagram
  • 11

    SPRING

    • Part No. T4850-93051
    • DIA2
    • 1 shown on diagram
    $3.99
  • 12

    BODY, LOWER LINK (LH)

    • Part No. T5815-65321
    • 1 shown on diagram
    $299.99
  • 13

    LOWER LINK ASSY RH v

    • Part No. T5815-65332
    • 1 shown on diagram
    $634.99

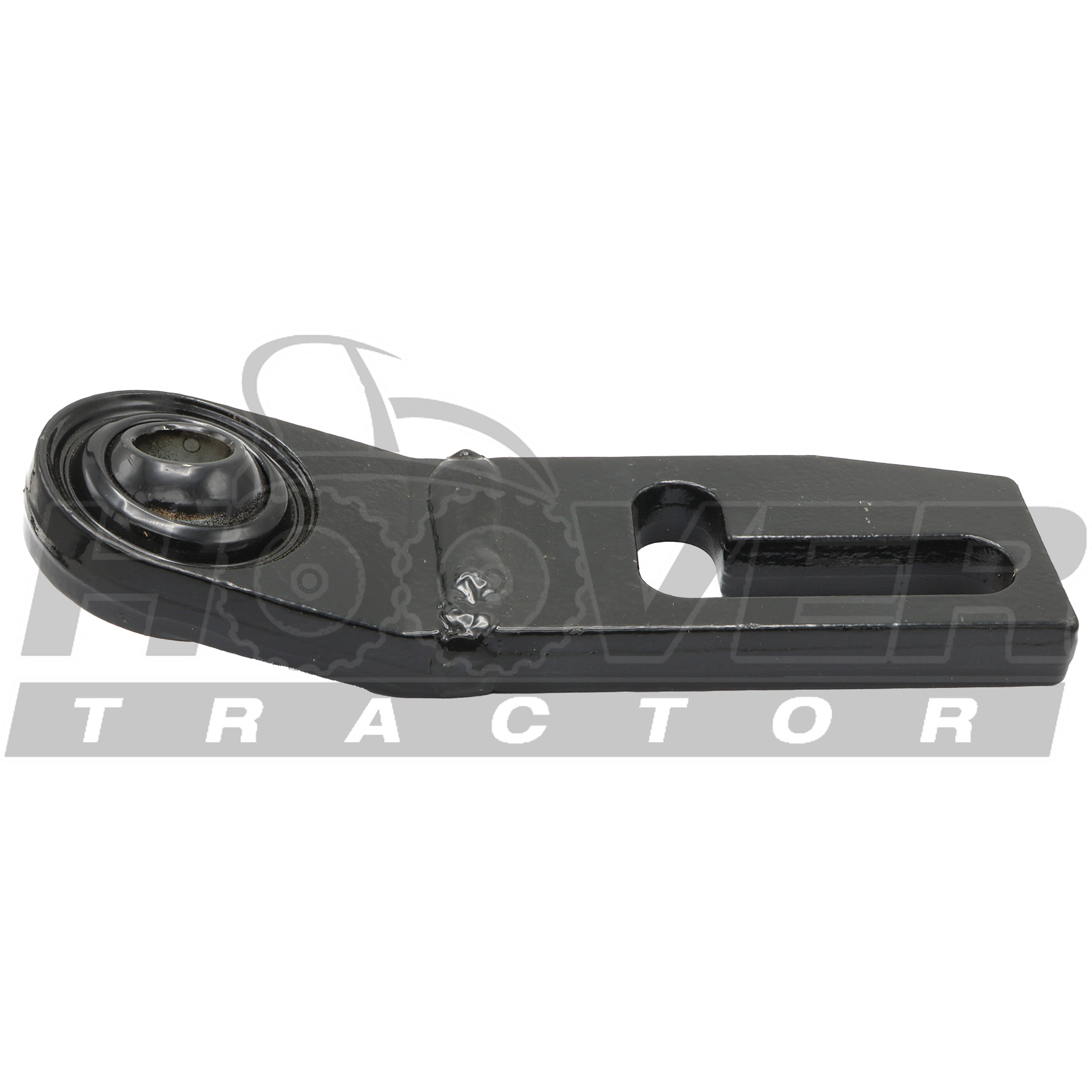

  • 14 HOUSING, LOWER LINK(RH)

    HOUSING, LOWER LINK(RH)

    • Part No. T2615-93131BB
    • 1 shown on diagram
    $199.99
  • 15
    • Part No. T5815-65341
    • N
    • 1 shown on diagram
  • 16

    Flat Washer M12

    • Part No. 04011-50120
    • M12
    • 1 shown on diagram
    $.73
  • 17

    Flat Washer M20

    • Part No. 04011-50200
    • M20
    • 1 shown on diagram
    $1.59
  • 18

    Pin, Joint M12x50mm

    • Part No. 05122-51250
    • DIA12XL50
    • 1 shown on diagram
    $2.99
  • 19

    CARTER KEY v

    • Part No. 05511-50430
    • DIA3.6XL30
    • 1 shown on diagram
    $0.46
  • 20

    PIN, SPLIT

    • Part No. 05511-50445
    • DIA3.6XL45
    • 1 shown on diagram
    $0.47
