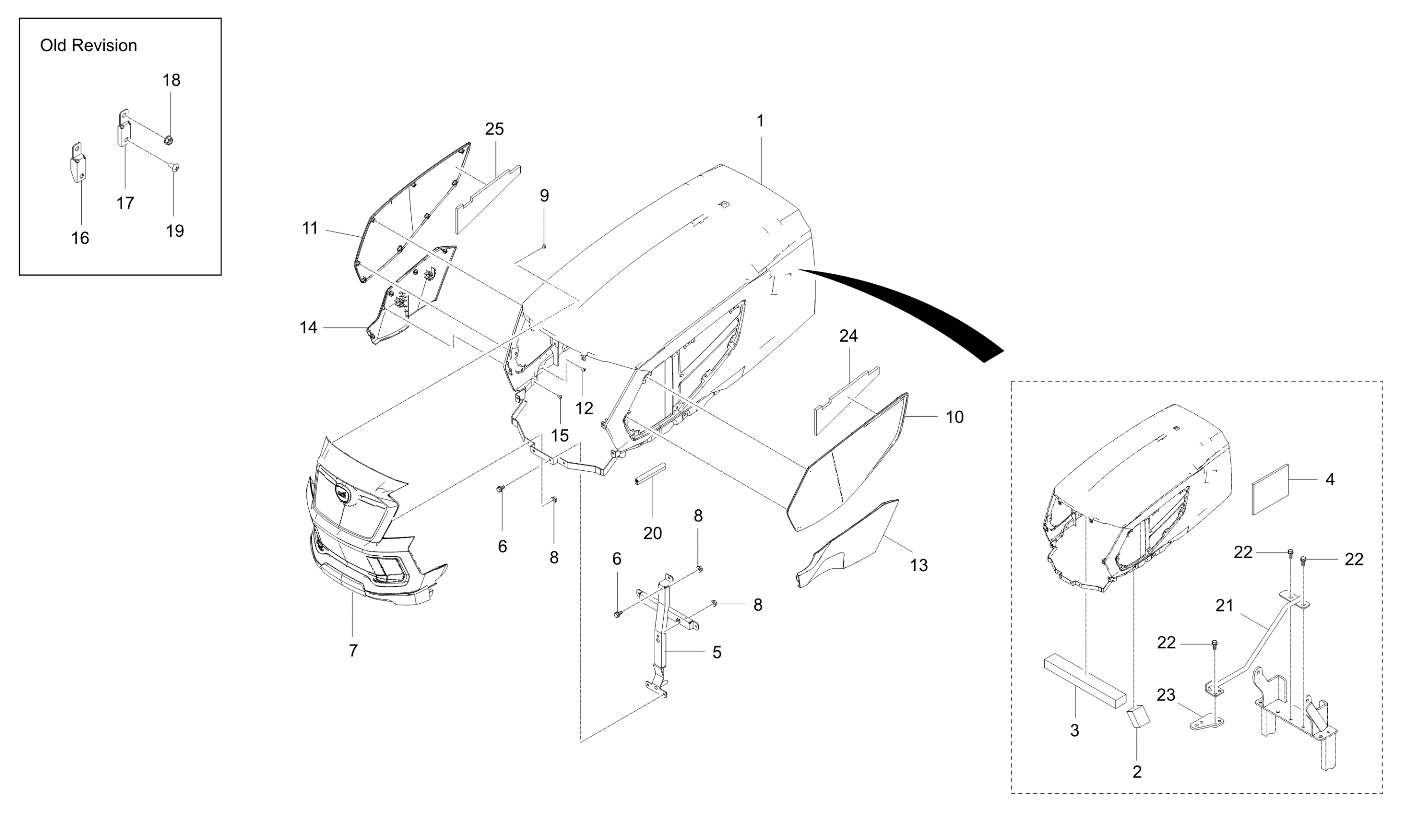

BONNET GROUP - TC2-G615525
Kioti TRACTOR | CK Series | CK3520SEB
-
ASSY BONNET dnr v
- Part No. TC26-1973A
- * multiple options for #1
- 1 shown on diagram
$724.99 -
ASSY BONNET dnr v
- Part No. TC26-1973B
- Compatibility New repl old
- * multiple options for #1
- 1 shown on diagram
$709.99 -
ASSY BONNET dnr v
- Part No. TC26-1973C
- Compatibility New repl old
- * multiple options for #1
- 1 shown on diagram
$699.99 -
ASSY BONNET dnr v
- Part No. TC26-1973D
- Compatibility New repl old
- * multiple options for #1
- 1 shown on diagram
$724.99 -
SPONGE, 4
- Part No. T5855-50542
- 95X60, T2
- 2 shown on diagram
$3.99 -
SPONGE, BONNET
- Part No. TC26-2043A
- 1 shown on diagram
$31.99 -
PLATE,HEAT
- Part No. T4665-50382
- * multiple options for #4
- 1 shown on diagram
$62.99 -
INSULATOR, BONNET
- Part No. TC26-2052A
- Compatibility New repl old
- * multiple options for #4
- 1 shown on diagram
$38.99 -
ASSY PLATE, BONNET REINFMT-FR dnr v
- Part No. TC26-1999A
- 1 shown on diagram
$82.99 -
BOLT, FLANGE
- Part No. 01754-50816
- M8XP1.25
- 3 shown on diagram
$1.79 -
ASSY GRILLE, BONNET-FR
- Part No. TC26-1988A
- * multiple options for #7
- 1 shown on diagram
$299.99 -
ASSY GRILLE, BONNET-FR
- Part No. TC26-1988B
- Compatibility New repl old
- * multiple options for #7
- 1 shown on diagram
$.00 -
ASSY GRILLE, BONNET-FR
- Part No. TC26-2061A
- Compatibility New repl old
- * multiple options for #7
- 1 shown on diagram
$.00 -
ASSY GRILLE, BONNET-FR
- Part No. TC26-2061B
- Compatibility New repl old
- * multiple options for #7
- 1 shown on diagram
$339.99 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- M6XP1.0
- 4 shown on diagram
$0.73 -
SCREW
- Part No. T5710-51181
- M5 X 10
- 6 shown on diagram
$0.29 -
GRILLE, BONNET-LH
- Part No. TC26-1995A
- T3.0
- 1 shown on diagram
$74.99 -
GRILLE, BONNET-RH
- Part No. TC26-1996A
- T3.0
- 1 shown on diagram
$74.99 -
SCREW
- Part No. T5710-51181
- M5 X 10
- 16 shown on diagram
$0.29 -
GRILLE, BONNET-LH LWR
- Part No. TC26-1997A
- T3.0
- * multiple options for #13
- 1 shown on diagram
$54.99 -
GRILLE, BONNET-LH LWR
- Part No. TC26-1997B
- Compatibility New repl old
- T3.0
- * multiple options for #13
- 1 shown on diagram
$62.99 -
GRILLE, BONNET-RH LWR
- Part No. TC26-1998A
- T3.0
- * multiple options for #14
- 1 shown on diagram
$54.99 -
GRILLE, BONNET-RH LWR
- Part No. TC26-1998B
- Compatibility New repl old
- T3.0
- * multiple options for #14
- 1 shown on diagram
$62.99 -
SCREW
- Part No. T5710-51181
- M5 X 10
- 10 shown on diagram
$0.29 -
BRACKET-1
- Part No. TC26-1983A
- T2.0
- 2 shown on diagram
$5.49 -
BRACKET-2 dnr v
- Part No. TC26-1984A
- T2.0
- 2 shown on diagram
$5.49 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- M6XP1.0
- * multiple options for #18
- 4 shown on diagram
$0.73 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- Compatibility New repl old
- M6XP1.0
- * multiple options for #18
- 2 shown on diagram
$0.73 -
SCREW
- Part No. T5710-51181
- M5 X 10
- * multiple options for #19
- 4 shown on diagram
$0.29 -
SCREW
- Part No. T5710-51181
- Compatibility New repl old
- M5 X 10
- * multiple options for #19
- 2 shown on diagram
$0.29 -
RUBBER
- Part No. T5855-51861
- 1 shown on diagram
$39.99 -
GUIDE, HARNESS dnr v
- Part No. TC26-0431B
- 1 shown on diagram
$22.99 -
Bolt With Washer, M8 P1.25 x 20mm
- Part No. 01123-50820
- M8XP1.25
- 4 shown on diagram
$2.49 -
BRACKET-TIER4
- Part No. TC26-0693B
- T6.0
- 1 shown on diagram
$21.99 -
INSULATOR LH, BONNET
- Part No. TD26-1403A
- 1 shown on diagram
$22.99 -
INSULATOR RH, BONNET
- Part No. TD26-1404A
- 1 shown on diagram
$22.99
