STEP SEAT FRAME GROUP(MEC) - TC2-G633031

Kioti TRACTOR | CK Series | CK3520SEB

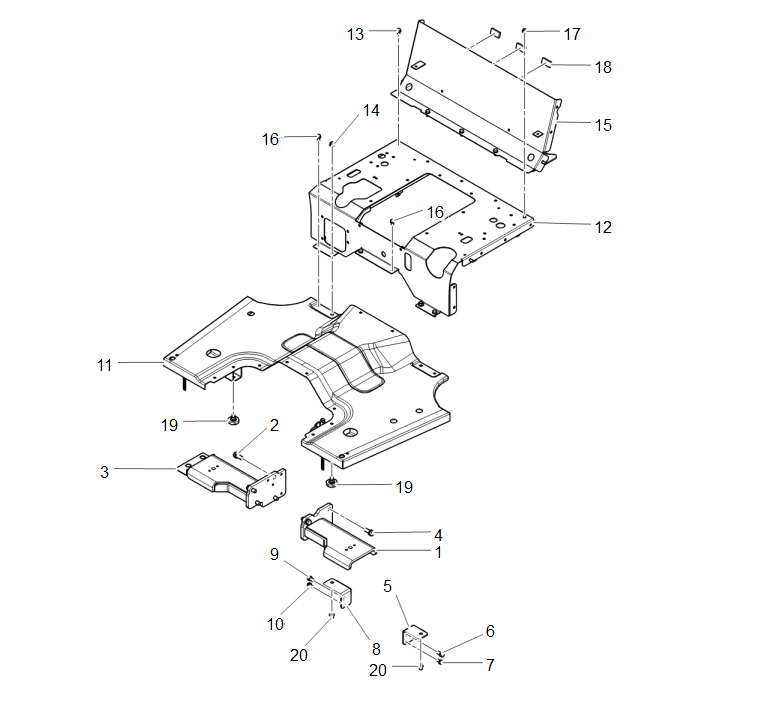

Diagram for STEP SEAT FRAME GROUP(MEC) - TC2-G633031
  • 1

    SUPPORT, STEP-LH FR

    • Part No. TC26-0704C
    • Serial No. PA3WA0001 and up
    • 1 shown on diagram
    $214.99
  • 2

    Bolt/Washer M12xP1.25

    • Part No. 01133-11230
    • M12XP1.25
    • 4 shown on diagram
    $.00
  • 3

    SUPPORT, STEP-RH FR

    • Part No. TC26-0706B
    • Serial No. PA3WA0001 and up
    • 1 shown on diagram
    $244.99
  • 4

    Bolt/Washer M12xP1.25

    • Part No. 01133-11230
    • M12XP1.25
    • 4 shown on diagram
    $.00
  • 5

    SUPPORT, STEP-MID LH

    • Part No. TC26-0716A
    • Serial No. PA3WA0001 and up
    • 1 shown on diagram
    $22.99
  • 6

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 7 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 8

    SUPPORT, STEP-MID RH

    • Part No. TC26-0798A
    • Serial No. PA3WA0001 and up
    • 1 shown on diagram
    $35.99
  • 9

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 10 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 11

    ASSY FLOOR- SHUTTLE

    • Part No. TC26-1551A
    • Serial No. PA3WA0001 and up
    • 1 shown on diagram
    $579.99
  • 12

    PLATE, SEAT FLOOR-MEC

    • Part No. TC26-2309A
    • 1 shown on diagram
    $.00
  • 13 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 14

    NUT

    • Part No. 02771-50100
    • 2 shown on diagram
    $0.73
  • 15

    PLATE, SEAT FLOOR-RR

    • Part No. TC26-1348A
    • Serial No. PA3WA0001 and up
    • 1 shown on diagram
    $179.99
  • 16 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 17 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 18

    SPONGE

    • Part No. TC26-0001A
    • 저발포 PU 폼
    • 3 shown on diagram
    $3.99
  • 19

    STOPPER

    • Part No. T5710-51951
    • 2 shown on diagram
    $16.99
  • 20

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 2 shown on diagram
    $1.59
