INSTRUMENT PANEL FRAME GROUP - TC2-G652019

Kioti TRACTOR | CK Series | CK3520SEB

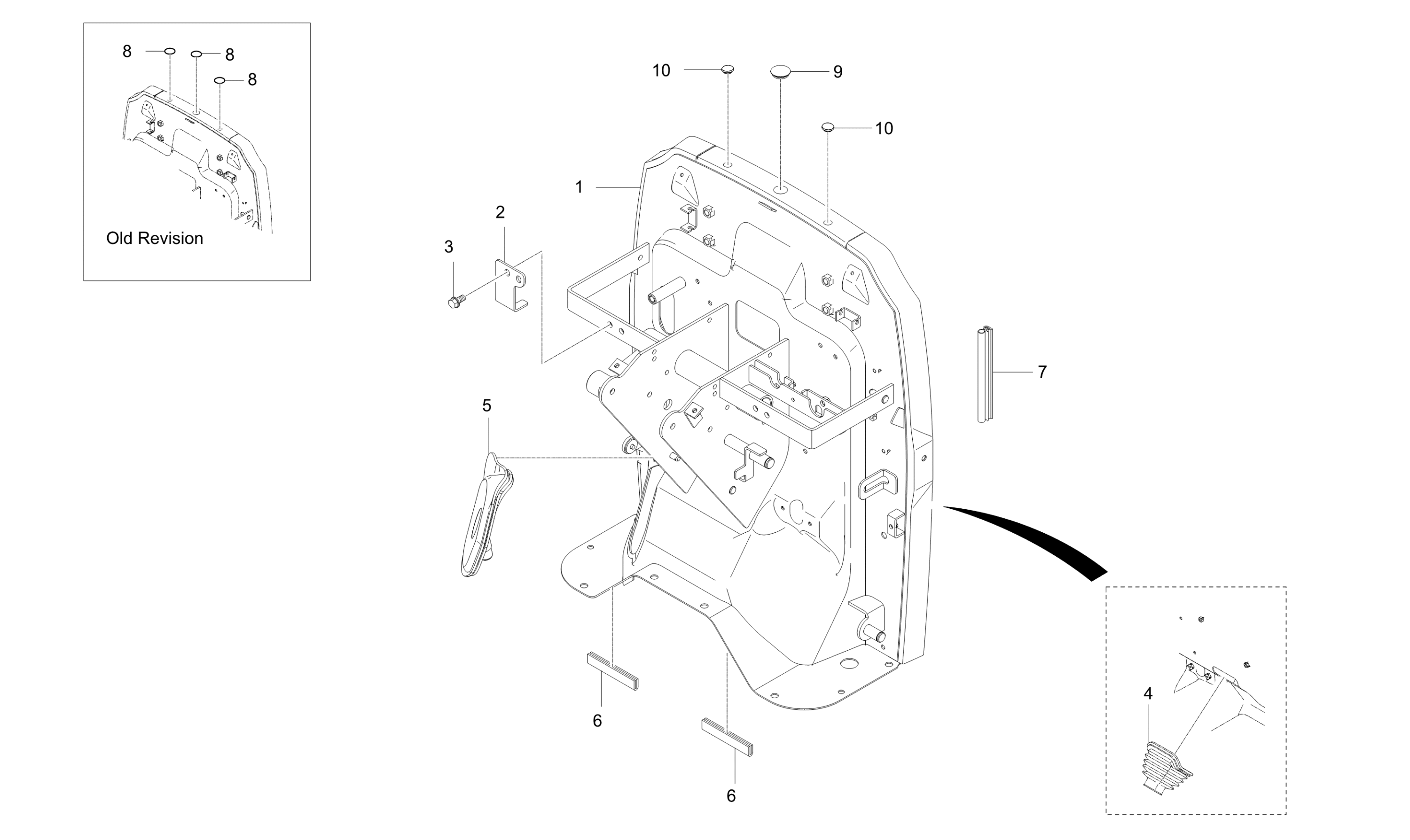

Diagram for INSTRUMENT PANEL FRAME GROUP - TC2-G652019
  • 1

    ASSY FRAME, INSTPN-ROPS SHUTTLE

    • Part No. TC26-2038A
    • 1 shown on diagram
    $614.99
  • 2

    PLATE, SWITCH

    • Part No. T5710-80782
    • T3.0
    • 1 shown on diagram
    $5.99
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 4

    BOOT

    • Part No. T5715-80681
    • T1.2
    • 1 shown on diagram
    $33.99
  • 5

    COVER, FRAME RUBBER-1

    • Part No. TC26-1362A
    • T3.0
    • 1 shown on diagram
    $29.99
  • 6

    U-SHAPED RUBBER

    • Part No. T5620-50291
    • 2 shown on diagram
    $6.99
  • 7

    RUBBER

    • Part No. T5710-80651
    • 1 shown on diagram
    $37.99
  • 8

    COVER LABEL-BLACK

    • Part No. T5270-87611
    • T0.06
    • 3 shown on diagram
    $0.82
  • 9

    COVER dnr v

    • Part No. T4630-65351
    • 1 shown on diagram
    $8.49
  • 10

    GROMMET

    • Part No. U3210-97461
    • T2.5
    • 2 shown on diagram
    $3.49
