CLUTCH PEDAL GROUP - TC2-G646006

Kioti TRACTOR | CK Series | CK3520SEB

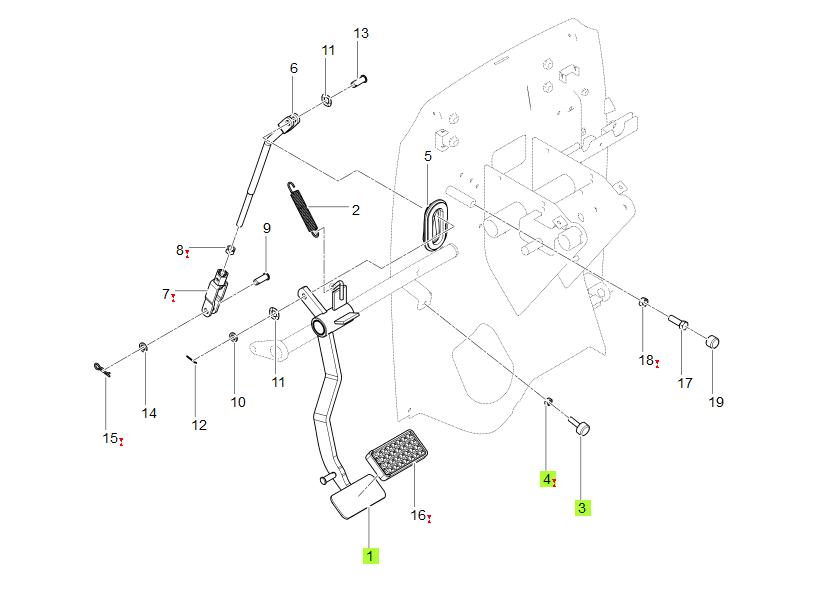

Diagram for CLUTCH PEDAL GROUP - TC2-G646006
  • 1

    PEDAL, CLUTCH dnr v

    • Part No. T5710-80013
    • * multiple options for #1
    • 1 shown on diagram
    $149.99
  • 1

    PEDAL, CLUTCH

    • Part No. TC26-1951A
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 2

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 1 shown on diagram
    $6.49
  • 3

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • * multiple options for #3
    • 2 shown on diagram
    $8.49
  • 3

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • Compatibility New repl old
    • * multiple options for #3
    • 1 shown on diagram
    $8.49
  • 4 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • * multiple options for #4
    • 2 shown on diagram
    $.85
  • 4 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • Compatibility New repl old
    • M8XP1.25
    • * multiple options for #4
    • 1 shown on diagram
    $.85
  • 5

    BOOT

    • Part No. T5710-80041
    • 1 shown on diagram
    $26.99
  • 6

    ROD, CLUTCH-1 v

    • Part No. TC26-0464B
    • 1 shown on diagram
    $28.99
  • 7

    CLUTCH ROD

    • Part No. T4135-55531
    • 1 shown on diagram
    $26.99
  • 8 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 9

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 1 shown on diagram
    $3.49
  • 10

    WASHER 1

    • Part No. T4930-66731
    • 1 shown on diagram
    $3.49
  • 11

    SPRING

    • Part No. T4157-56111
    • 2 shown on diagram
    $1.89
  • 12 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • DIA1.8XL18
    • 1 shown on diagram
    $0.56
  • 13

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 1 shown on diagram
    $3.49
  • 14

    WASHER 1

    • Part No. T4930-66731
    • 1 shown on diagram
    $3.49
  • 15

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 1 shown on diagram
    $1.29
  • 16 COVER,PEDAL

    COVER,PEDAL

    • Part No. T2670-55531
    • 1 shown on diagram
    $23.99
  • 17

    BOLT v

    • Part No. 01176-51030
    • 1 shown on diagram
    $3.49
  • 18 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 19

    CUSHION

    • Part No. T4620-55841
    • 1 shown on diagram
    $3.49
