STEERING COLUMN GROUP - TC2-G653016

Kioti TRACTOR | CK Series | CK3520SEB

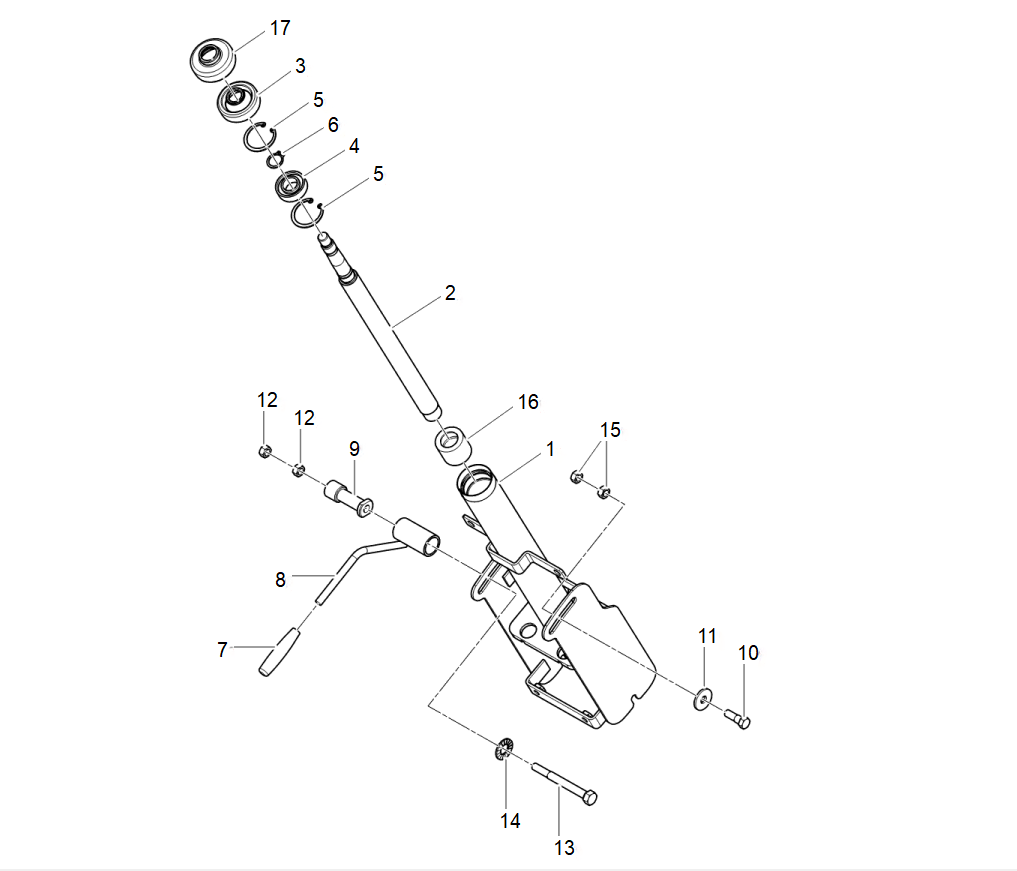

Diagram for STEERING COLUMN GROUP - TC2-G653016
  • 1

    ASSY COLUMN, STEERING-US

    • Part No. TC26-0495A
    • Serial No. PA3WA0001 and up
    • 1 shown on diagram
    $149.99
  • 2

    SHAFT,STEERING

    • Part No. T2350-66101
    • Serial No. PA3WA0001 to PA3WA0134
    • 1 shown on diagram
    $97.99
  • 3

    SEAL,OIL

    • Part No. T2440-16351
    • 1 shown on diagram
    $5.99
  • 4 BEARING,BALL 17x35x10

    BEARING,BALL 17x35x10

    • Part No. 08111-06003
    • DIA17
    • 1 shown on diagram
    $11.99
  • 5 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00350
    • DIA35
    • 2 shown on diagram
    $1.39
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00170
    • DIA17
    • 1 shown on diagram
    $0.98
  • 7

    GRIP, DARK BLUE

    • Part No. T2185-71241
    • 1 shown on diagram
    $4.49
  • 8

    LEVER, TILT

    • Part No. T5710-80841
    • Serial No. PA3WA0001 and up
    • 1 shown on diagram
    $41.99
  • 9

    BOLT, HOLDER

    • Part No. T5710-80852
    • 1 shown on diagram
    $29.99
  • 10

    BOLT

    • Part No. T5710-80861
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 11 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 1 shown on diagram
    $1.09
  • 12 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $.85
  • 13

    BOLT

    • Part No. T5710-80871
    • M8XP1.25
    • 1 shown on diagram
    $4.49
  • 14 WASHER

    WASHER

    • Part No. T5715-80691
    • T2.0
    • 1 shown on diagram
    $17.99
  • 15 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $.85
  • 16 RUBBER CUSHION

    RUBBER CUSHION

    • Part No. T4260-50100
    • Serial No. Up to RA3WA0062
    • L3503, D4351
    • 1 shown on diagram
    $9.49
  • 17

    COVER, RUBBER

    • Part No. TC26-2200A
    • T1.5
    • 1 shown on diagram
    $.00
