BRAKE PEDAL GROUP - TC2-G646508

Kioti TRACTOR | CK Series | CK3520SEB

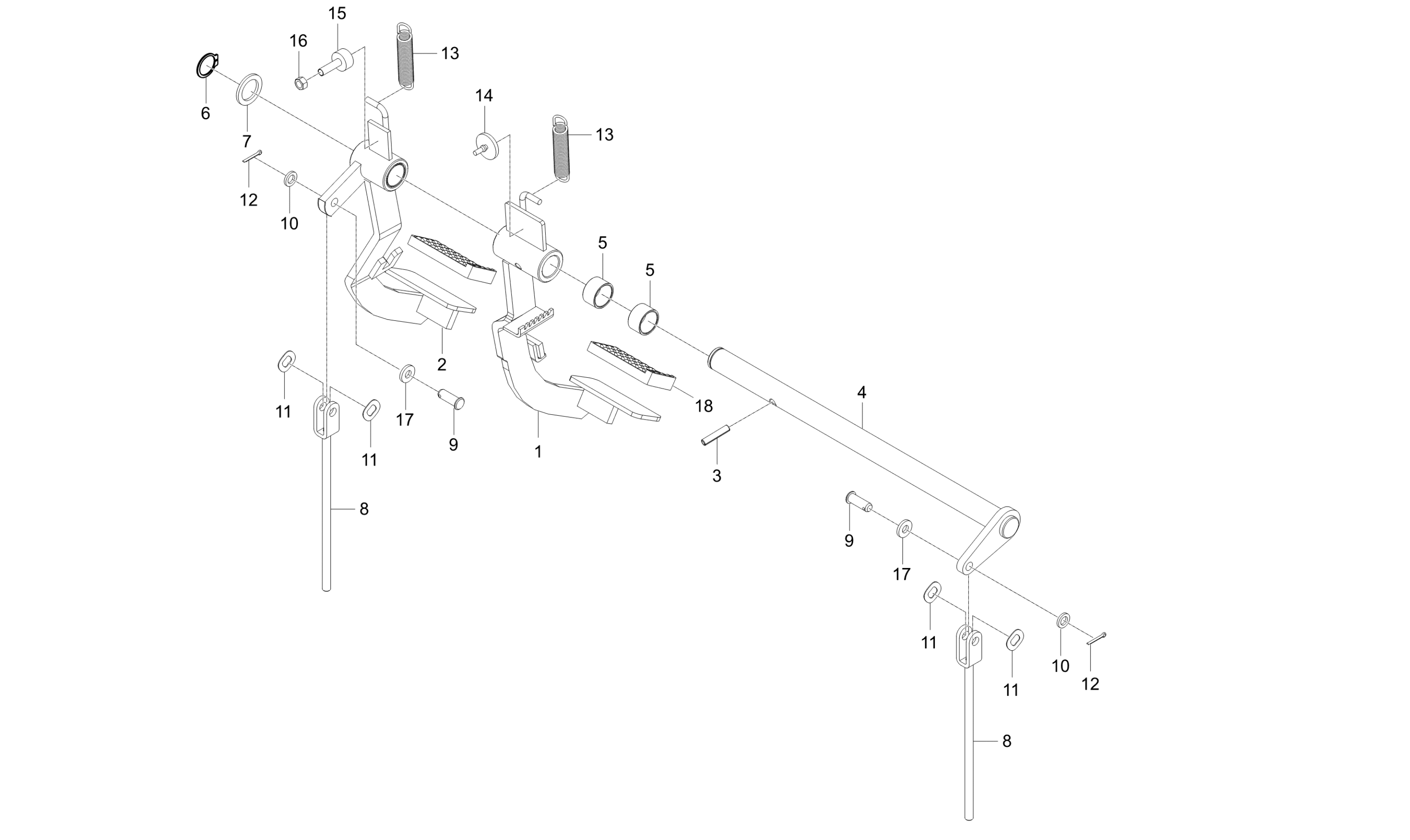

Diagram for BRAKE PEDAL GROUP - TC2-G646508
  • 1

    PEDAL, BRAKE-LH

    • Part No. TC26-1948A
    • 1 shown on diagram
    $109.99
  • 2

    PEDAL, BRAKE-RH

    • Part No. TC26-1949A
    • 1 shown on diagram
    $99.99
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 4

    SHAFT, PEDAL

    • Part No. T2610-55731
    • 1 shown on diagram
    $82.99
  • 5

    NEEDLE BEARING

    • Part No. 08822-53017
    • Inner diameter 25
    • 2 shown on diagram
    $19.99
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 7

    COLLAR dnr v

    • Part No. 84612-1445-0
    • DIA36*8
    • 1 shown on diagram
    $11.99
  • 8

    ROD2,BRAKE

    • Part No. T4620-55762
    • 2 shown on diagram
    $18.99
  • 9

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 2 shown on diagram
    $3.49
  • 10

    WASHER 1

    • Part No. T4930-66731
    • 2 shown on diagram
    $3.49
  • 11

    SPRING

    • Part No. T4157-56111
    • 4 shown on diagram
    $1.89
  • 12

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • DIA2.7XL18
    • 2 shown on diagram
    $0.4
  • 13

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 2 shown on diagram
    $6.49
  • 14

    CUSHION v

    • Part No. T4520-26931
    • 1 shown on diagram
    $6.49
  • 15

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • 1 shown on diagram
    $8.49
  • 16 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $.85
  • 17

    WASHER 3

    • Part No. T4682-65311
    • 2 shown on diagram
    $0.79
  • 18 COVER,PEDAL

    COVER,PEDAL

    • Part No. T2670-55531
    • 2 shown on diagram
    $23.99
