GOVERNOR GROUP - 3B183-E170

Kioti TRACTOR | DK Series | DK50SE

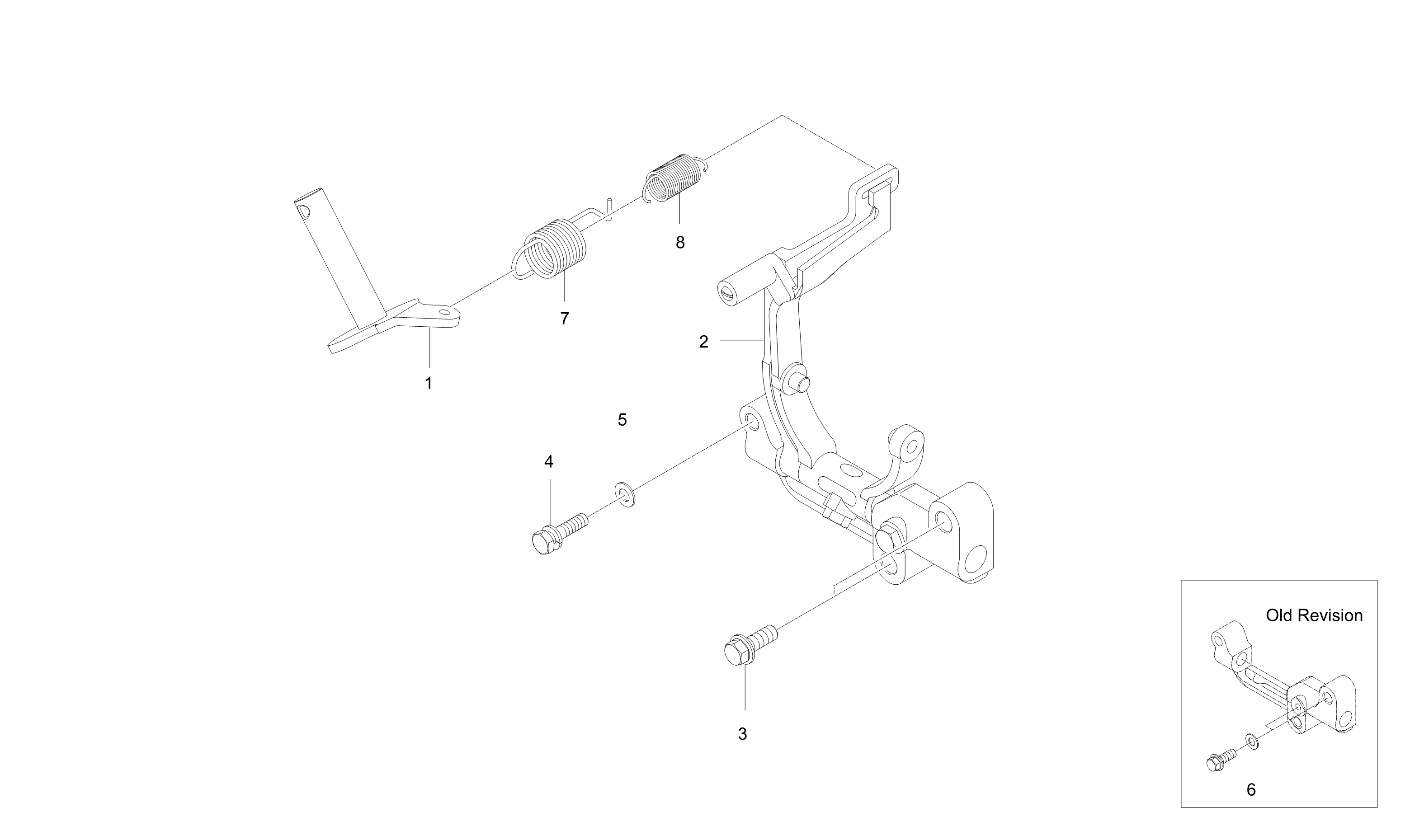

Diagram for GOVERNOR GROUP - 3B183-E170
  • 1

    ASSY LEVER,GOVERNOR v

    • Part No. E5850-56021
    • 1 shown on diagram
    $28.99
  • 2

    ASSY LEVER

    • Part No. E5850-56054
    • Applied Dates 2005-09-27 to 2009-04-14
    • *multiple options for # 2
    • 1 shown on diagram
    $159.99
  • 2

    ASSY LEVER

    • Part No. E5850-56055
    • Compatibility New Replaces Old
    • Applied Dates 2009-04-15 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $214.99
  • 3

    Bolt With Washer, M8 P1.25 x 32mm

    • Part No. 01123-50832
    • Applied Dates Up to 2008-04-24
    • HEX12*43
    • *multiple options for # 3
    • 2 shown on diagram
    $2.49
  • 3 Bolt, Flange M8 P1.25

    Bolt, Flange M8 P1.25

    • Part No. 01754-50830
    • Compatibility Interchangeable
    • Applied Dates 2008-04-25 and up
    • M8XP1.25
    • *multiple options for # 3
    • 2 shown on diagram
    $1.89
  • 4

    BOLT, WASHER

    • Part No. 01023-50628
    • HEX10*38
    • 1 shown on diagram
    $1.49
  • 5 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • Applied Dates Up to 2008-04-24
    • M8
    • 2 shown on diagram
    $0.67
  • 6 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • M6
    • 1 shown on diagram
    $0.67
  • 7

    GOVERNOR SPRING 1

    • Part No. E5850-56411
    • Applied Dates Up to 2006-11-29
    • *multiple options for # 7
    • 1 shown on diagram
    $1.99
  • 7

    SPRING GOVERNOR 1 v

    • Part No. E6300-56414
    • Compatibility New Replaces Old
    • Applied Dates 2006-11-30 and up
    • *multiple options for # 7
    • 1 shown on diagram
    $5.99
  • 8

    GOVERNOR SPRING 2

    • Part No. E5850-56421
    • Applied Dates Up to 2006-11-29
    • *multiple options for # 8
    • 1 shown on diagram
    $3.49
  • 8

    SPRING2, GOVERNOR

    • Part No. E6313-56421
    • Compatibility New Replaces Old
    • Applied Dates 2006-11-30 and up
    • *multiple options for # 8
    • 1 shown on diagram
    $3.99
