WATER HOSE GROUP - 3B183LXM-E190

Kioti TRACTOR | DK Series | DK50SE

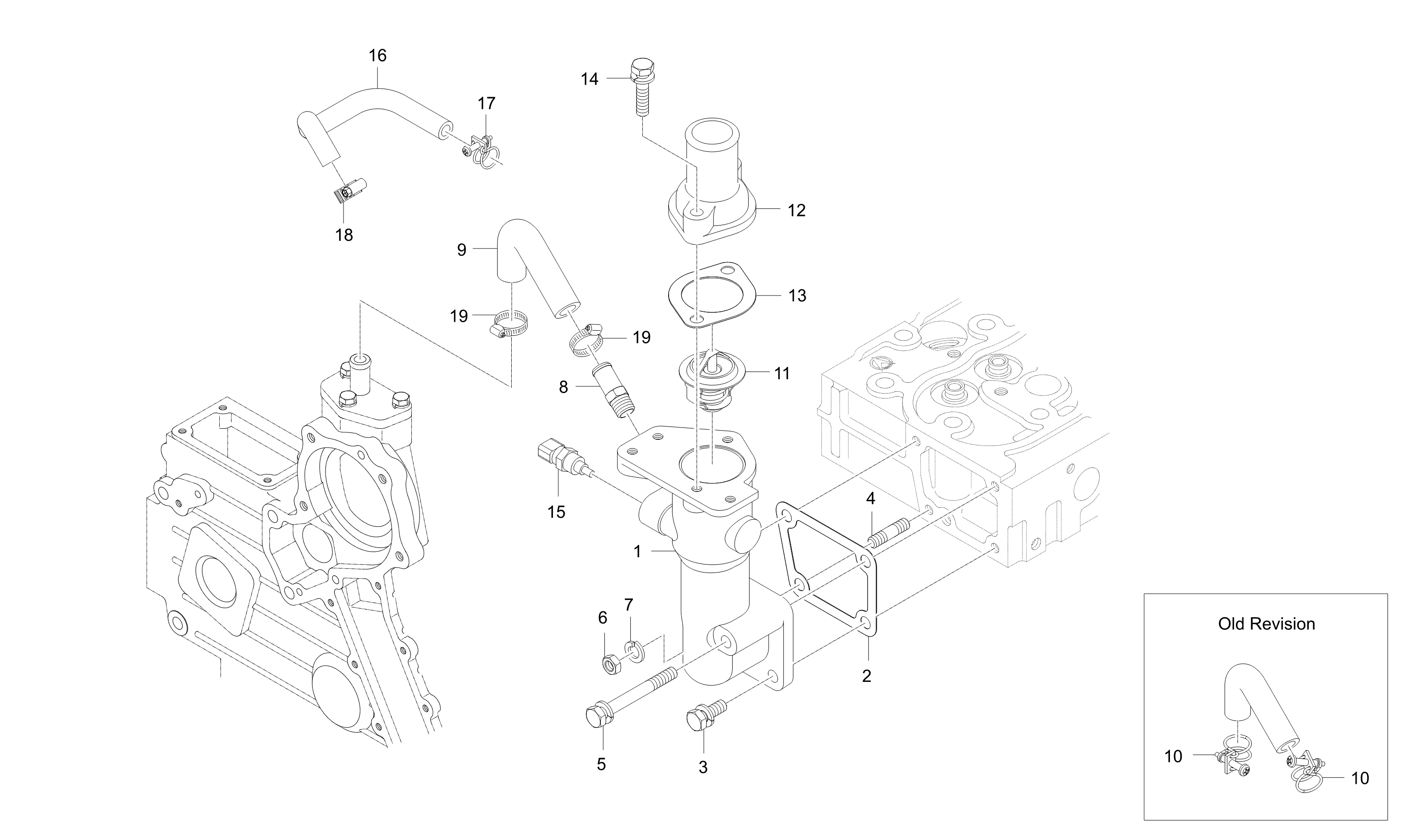

Diagram for WATER HOSE GROUP - 3B183LXM-E190
  • 1

    PLANGE, WATER

    • Part No. E5640-72911
    • 1 shown on diagram
    $124.99
  • 2 THERMOSTAT HOUSING GASKET

    THERMOSTAT HOUSING GASKET

    • Part No. E5500-72922
    • t0.5
    • 1 shown on diagram
    $4.49
  • 3 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • Applied Dates 2013-08-13 to 2009-03-26
    • M8XP1.25
    • *multiple options for # 3
    • 2 shown on diagram
    $2.49
  • 3 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • Compatibility Interchangeable
    • M8XP1.25
    • *multiple options for # 3
    • 2 shown on diagram
    $1.19
  • 4 STUD

    STUD

    • Part No. 01513-50822
    • M8XP1.25
    • 1 shown on diagram
    $3.99
  • 5

    Bolt With Washer, M8 P1.25 x 70mm

    • Part No. 01123-50870
    • Applied Dates Up to 2009-03-26
    • M8XP1.25
    • *multiple options for # 5
    • 1 shown on diagram
    $3.49
  • 5

    FLANGE BOLT

    • Part No. 01754-50870
    • Compatibility Interchangeable
    • M8*P1.25
    • *multiple options for # 5
    • 1 shown on diagram
    $3.49
  • 6 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • Applied Dates 2013-09-26 to 2008-07-21
    • M8XP1.25
    • *multiple options for # 6
    • 1 shown on diagram
    $0.85
  • 6 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • Compatibility Interchangeable
    • Applied Dates 2013-06-26 to 2013-08-13
    • M8XP1.25
    • *multiple options for # 6
    • 1 shown on diagram
    $0.85
  • 7 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates Up to 2008-07-21
    • M08
    • 1 shown on diagram
    $0.61
  • 8

    HOSE, WATER RETURN v

    • Part No. E5500-73342
    • *multiple options for # 8
    • 1 shown on diagram
    $9.99
  • 8

    Water Return Pipe (E5500-73343)

    • Part No. E5500-73343
    • Compatibility New Replaces Old
    • *multiple options for # 8
    • 1 shown on diagram
    $9.99
  • 9 Hose

    Hose

    • Part No. 15521-7334-1
    • OD19*ID12*90
    • *multiple options for # 9
    • 1 shown on diagram
    $9.49
  • 9 HOSE, WATER PUMP

    HOSE, WATER PUMP

    • Part No. E5640-73341
    • Compatibility Interchangeable
    • *multiple options for # 9
    • 1 shown on diagram
    $5.99
  • 10

    CLAMP, HOSE

    • Part No. 09318-88180
    • Applied Dates 2006-08-01 and up
    • DIA18
    • *multiple options for # 10
    • 2 shown on diagram
    $2.49
  • 10

    CLAMP, HOSE dnr v

    • Part No. E5700-73361
    • Compatibility New Replaces Old
    • Applied Dates 2007-05-26 to 2007-10-31
    • *multiple options for # 10
    • 2 shown on diagram
    $3.49
  • 11 Thermostat 160°F 71°C 44mm

    Thermostat 160°F 71°C 44mm

    • Part No. E5800-73011
    • 1 shown on diagram
    $38.99
  • 12

    COVER, THERMOSTAT dnr v

    • Part No. E5500-73263
    • *multiple options for # 12
    • 1 shown on diagram
    $14.99
  • 12

    COVER, THERMOSTAT

    • Part No. E5500-73264
    • Compatibility New Replaces Old
    • T0.5
    • *multiple options for # 12
    • 1 shown on diagram
    $0.00

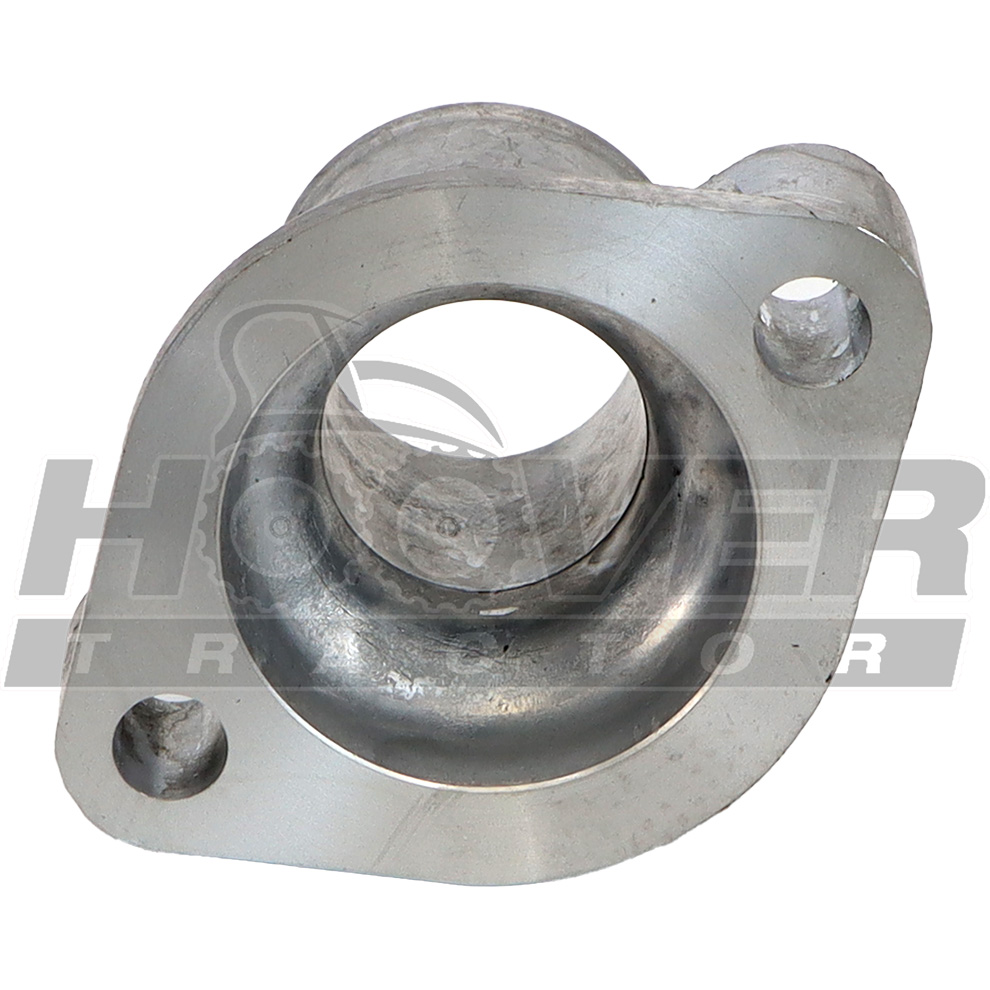

  • 12 COVER THERMOSTAT v

    COVER THERMOSTAT v

    • Part No. E5500-73265
    • Compatibility New Replaces Old
    • *multiple options for # 12
    • 1 shown on diagram
    $17.99
  • 13 Gasket, Thermostat

    Gasket, Thermostat

    • Part No. E5500-73272
    • t1.0
    • 1 shown on diagram
    $5.99
  • 14 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • Applied Dates Up to 2009-03-26
    • M8XP1.25
    • *multiple options for # 14
    • 2 shown on diagram
    $2.49
  • 14 BOLT v

    BOLT v

    • Part No. 01754-50835
    • Compatibility Interchangeable
    • M8XP1.25
    • *multiple options for # 14
    • 2 shown on diagram
    $1.89
  • 15 TEMPERATURE SENSOR ASSY

    TEMPERATURE SENSOR ASSY

    • Part No. E7240-32731
    • 1 shown on diagram
    $45.99
  • 16

    HOSE 1, OIL COOLER v

    • Part No. E6810-16161
    • Applied Dates Up to 2011-01-01
    • *multiple options for # 16
    • 1 shown on diagram
    $14.99
  • 16

    HOSE 1, OIL COOLER

    • Part No. E6810-16162
    • Compatibility Interchangeable
    • Applied Dates 2011-01-02 to 2011-04-30
    • *multiple options for # 16
    • 1 shown on diagram
    $14.99
  • 16

    Hose 1, Oil Cooler

    • Part No. E6810-16163
    • Compatibility Interchangeable
    • Applied Dates 2011-05-01 and up
    • Serial No. LS9600001 and up
    • *multiple options for # 16
    • 1 shown on diagram
    $25.99
  • 17

    CLAMP, HOSE

    • Part No. 09318-88180
    • DIA18
    • 1 shown on diagram
    $2.49
  • 18

    O-RING

    • Part No. 09318-88220
    • Applied Dates 2006-12-05 to 2014-11-03
    • Serial No. FS9600001 to PS9600024
    • DIA22
    • *multiple options for # 18
    • 1 shown on diagram
    $1.49
  • 18

    BAND, HOSE

    • Part No. F6800-91831
    • Compatibility Call for compatibility
    • Applied Dates 2014-11-04 and up
    • Serial No. PS9600025 and up
    • *multiple options for # 18
    • 1 shown on diagram
    $1.89
  • 19

    BAND, HOSE

    • Part No. F6800-91831
    • *multiple options for # 19
    • 2 shown on diagram
    $1.89
  • 19

    CLAMP, HOSE dnr v

    • Part No. E5700-73361
    • Compatibility Interchangeable
    • *multiple options for # 19
    • 2 shown on diagram
    $3.49
  • 19

    CLAMP dnr v

    • Part No. E5700-73362
    • Compatibility New Replaces Old
    • *multiple options for # 19
    • 2 shown on diagram
    $3.99
  • 19

    BAND, HOSE

    • Part No. F6800-91851
    • Compatibility New Replaces Old
    • 12-22mm
    • *multiple options for # 19
    • 2 shown on diagram
    $1.89
