CAMSHAFT GROUP - 4B243LW-E100

Kioti TRACTOR | DK Series | DK50SE

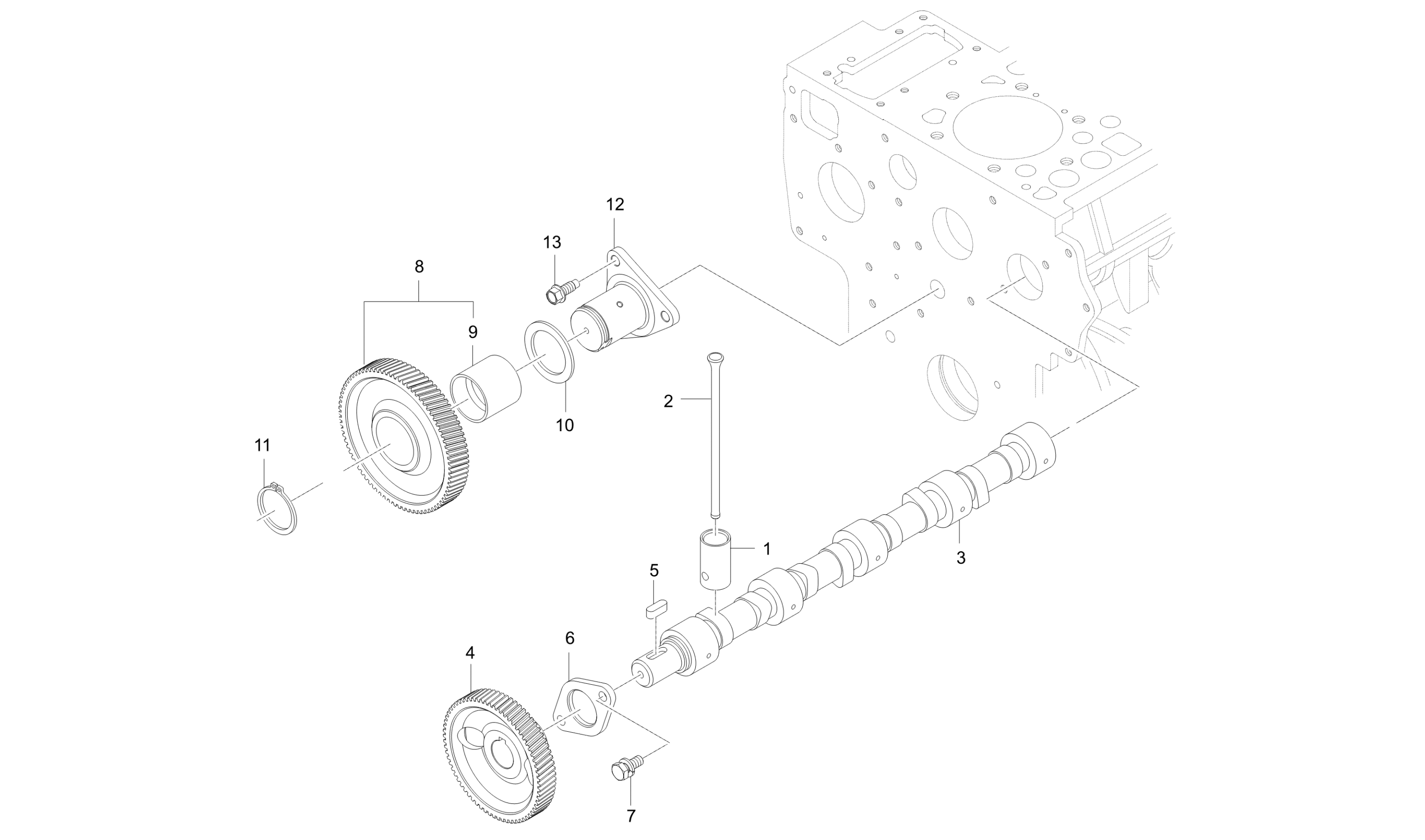

Diagram for CAMSHAFT GROUP - 4B243LW-E100
  • 1

    TAPPET

    • Part No. E5500-15553
    • *multiple options for # 1
    • 8 shown on diagram
    $37.99
  • 1

    TAPPET

    • Part No. EH12-0026A
    • Compatibility Interchangeable
    • *multiple options for # 1
    • 8 shown on diagram
    $24.99
  • 2

    TINE L13, TYPE N4 v, Replaced by E6850-15111

    • Part No. E5850-15111
    • *multiple options for # 2
    • 8 shown on diagram
    $0.00
  • 2

    ROD, PUSH v

    • Part No. E6850-15111
    • Compatibility Interchangeable
    • *multiple options for # 2
    • 8 shown on diagram
    $14.99
  • 3

    ASSY CAMSHAFT v

    • Part No. E6303-A0071
    • 1 shown on diagram
    $739.99
  • 4

    GEAR, CAMSHAFT

    • Part No. 15521-1651-1
    • 820G
    • 1 shown on diagram
    $119.99
  • 5

    KEY

    • Part No. 05712-00720
    • W7XL20
    • 1 shown on diagram
    $5.49
  • 6

    CAMSHAFT,STOPPER

    • Part No. E5500-16272
    • 1 shown on diagram
    $28.99
  • 7

    Bolt With Washer, M8 P1.25 x 18mm

    • Part No. 01123-50818
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 8

    ASSY, IDLE GEAR

    • Part No. E6300-24012
    • *multiple options for # 8
    • 1 shown on diagram
    $159.99
  • 8

    ASSY GEAR, IDLE

    • Part No. E6300-24013
    • Compatibility New Replaces Old
    • *multiple options for # 8
    • 1 shown on diagram
    $0.00
  • 9

    BUSH, IDLE GEAR

    • Part No. E6300-24281
    • *multiple options for # 9
    • 1 shown on diagram
    $27.99
  • 9

    BUSH, IDLE GEAR

    • Part No. E6300-24282
    • Compatibility New Replaces Old
    • *multiple options for # 9
    • 1 shown on diagram
    $17.99
  • 10

    COLLAR 2

    • Part No. E6300-24371
    • 1 shown on diagram
    $19.99
  • 11

    SNAP RING

    • Part No. E6300-24321
    • 1 shown on diagram
    $13.99
  • 12

    SHAFT GEAR,IDLE

    • Part No. E6300-24253
    • 1 shown on diagram
    $91.99
  • 13 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 3 shown on diagram
    $1.19
