PISTON & CRANKSHAFT GROUP - 4B243LW-E110

Kioti TRACTOR | DK Series | DK50SE

Diagram for PISTON & CRANKSHAFT GROUP - 4B243LW-E110
  • 1

    PISTON ASSY

    • Part No. E5853-21011
    • *multiple options for # 1
    • 4 shown on diagram
    $0.00
  • 1

    PISTON ASSY

    • Part No. E5853-21012
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 4 shown on diagram
    $0.00
  • 2

    PISTON (use E5853-21112) dnr v

    • Part No. E5853-21111
    • *multiple options for # 2
    • 3 shown on diagram
    $179.99
  • 2

    PISTON v, Replaced by EB13-0001A

    • Part No. E5853-21112
    • Compatibility New Replaces Old
    • *multiple options for # 2
    • 1 shown on diagram
    $0.00
  • 3

    PIN, PISTON v

    • Part No. E6720-21312
    • 3 shown on diagram
    $24.99
  • 4 ASSY, PISTON RING *see notes*

    ASSY, PISTON RING *see notes*

    • Part No. E6302-21051
    • 4 shown on diagram
    $194.99
  • 5

    RING, ENGINE PISTON-TOP obs v

    • Part No. E6302-21151
    • 1 shown on diagram
    $45.99
  • 6

    RING, ENGINE PISTON-2ND obs v.

    • Part No. E6302-21161
    • 1 shown on diagram
    $28.99
  • 7

    ASSY RING, OIL dnr v

    • Part No. E6301-21202
    • 1 shown on diagram
    $44.99
  • 8

    SNAP RING, PISTON PIN

    • Part No. E6300-21332
    • 8 shown on diagram
    $1.79
  • 9

    ASS’Y ROD, CONNECTING v, Replaced by E6300-22029

    • Part No. E6300-22027
    • *multiple options for # 9
    • 3 shown on diagram
    $0.00
  • 9

    ASSY, CONNECTING ROD, Replaced by E6300-2202A

    • Part No. E6300-22028
    • Compatibility Interchangeable
    • *multiple options for # 9
    • 3 shown on diagram
    $0.00
  • 9 Connecting Rod Aseembly, Replaced by E6300-22029

    Connecting Rod Aseembly, Replaced by E6300-22029

    • Part No. E6300-2202A
    • Compatibility New Replaces Old
    • *multiple options for # 9
    • 1 shown on diagram
    $0.00
  • 10

    BUSH, PISTON PIN

    • Part No. E6300-21353
    • *multiple options for # 10
    • 3 shown on diagram
    $19.99
  • 10

    BUSH, PISTON PIN

    • Part No. E6300-21355
    • Compatibility New Replaces Old
    • *multiple options for # 10
    • 1 shown on diagram
    $0.00
  • 11

    BOLT, CONNECTING ROD

    • Part No. E5800-22141
    • 6 shown on diagram
    $9.99

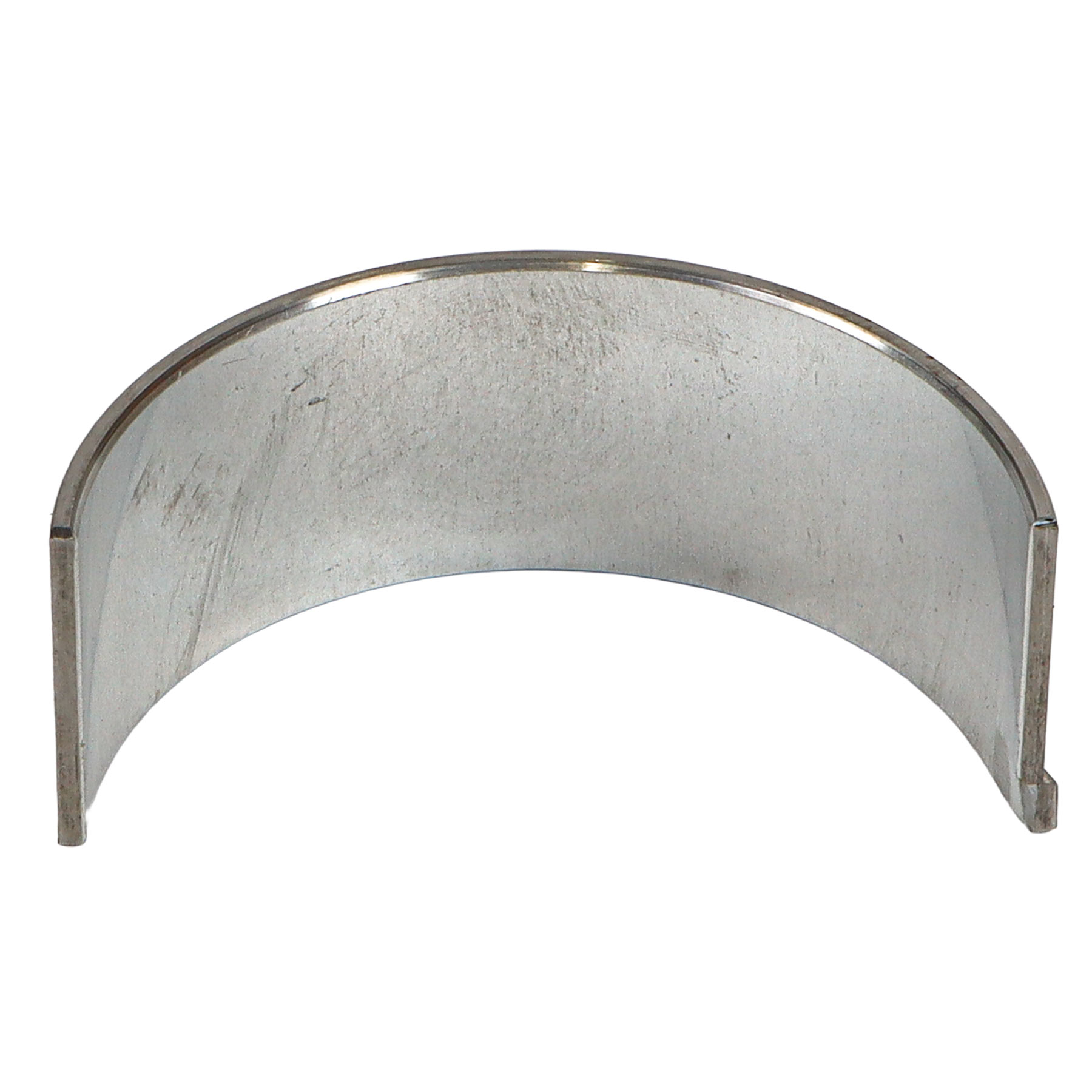

  • 12 PIN, METAL CRANK V SO

    PIN, METAL CRANK V SO

    • Part No. E6300-22312
    • 6 shown on diagram
    $15.99
  • 13

    PUMP, GEAR

    • Part No. E6810-23012
    • *multiple options for # 13
    • 1 shown on diagram
    $1,184.99
  • 13

    ASSY, CRANK SHAFT, Replaced by EB20-R001A

    • Part No. E6810-23013
    • Compatibility New Replaces Old
    • *multiple options for # 13
    • 1 shown on diagram
    $0.00
  • 13

    CRANKSHAFT ASSY v, Replaced by EB20-R001A

    • Part No. E6810-23016
    • Compatibility Call for compatibility
    • *multiple options for # 13
    • 1 shown on diagram
    $0.00
  • 14

    GEAR,CRANKSHAFT

    • Part No. E6500-24112
    • 1 shown on diagram
    $84.99
  • 15

    OIL PUMP DRIVE GEAR1

    • Part No. E6500-35632
    • 1 shown on diagram
    $63.99
  • 16

    KEY

    • Part No. 05712-00730
    • W7XL30
    • 1 shown on diagram
    $5.99
  • 17

    OIL SLINGER

    • Part No. 15471-2331-1
    • T1*53*53
    • 1 shown on diagram
    $1.59
  • 18 O RING

    O RING

    • Part No. 04811-10300
    • DIA29.5
    • 1 shown on diagram
    $1.19
  • 19

    CRANKSHAFT COLLAR

    • Part No. 19202-2325-1
    • DIA44*20
    • *multiple options for # 19
    • 1 shown on diagram
    $38.99
  • 19

    SPACER

    • Part No. 19202-2325-2
    • Compatibility Interchangeable
    • DIA44*20
    • *multiple options for # 19
    • 1 shown on diagram
    $45.99
  • 20

    CRANKSHAFT NUT

    • Part No. 15221-2336-1
    • HEX46,M30*1.5*18
    • 1 shown on diagram
    $18.99
  • 21

    CRANKSHAFT METAL 1

    • Part No. E5850-23471
    • 1 shown on diagram
    $66.99
  • 22

    CRANKSHAFT METAL 2

    • Part No. E5850-23481
    • 8 shown on diagram
    $14.99
  • 23

    SIDE METAL 1

    • Part No. E5850-23531
    • 2 shown on diagram
    $12.99
  • 24

    SIDE METAL 2

    • Part No. E5850-23541
    • 2 shown on diagram
    $13.99
  • 25 OIL SEAL V 42x55x9

    OIL SEAL V 42x55x9

    • Part No. E5500-11302
    • 1 shown on diagram
    $12.99
  • 26

    CRANKSHAFT WASHER

    • Part No. EB21-0001A
    • 1 shown on diagram
    $9.99
  • 27

    BOLT, CRANKSHAFT

    • Part No. F6800-92311
    • 1 shown on diagram
    $13.99
  • 28

    PISTON

    • Part No. EB13-0001A
    • 4 shown on diagram
    $169.99
  • 29

    PIN, PISTON v

    • Part No. E6720-21312
    • 4 shown on diagram
    $24.99
