GEAR CASE GROUP - 4A220TLX-E040

Kioti TRACTOR | DK Series | DK50SE

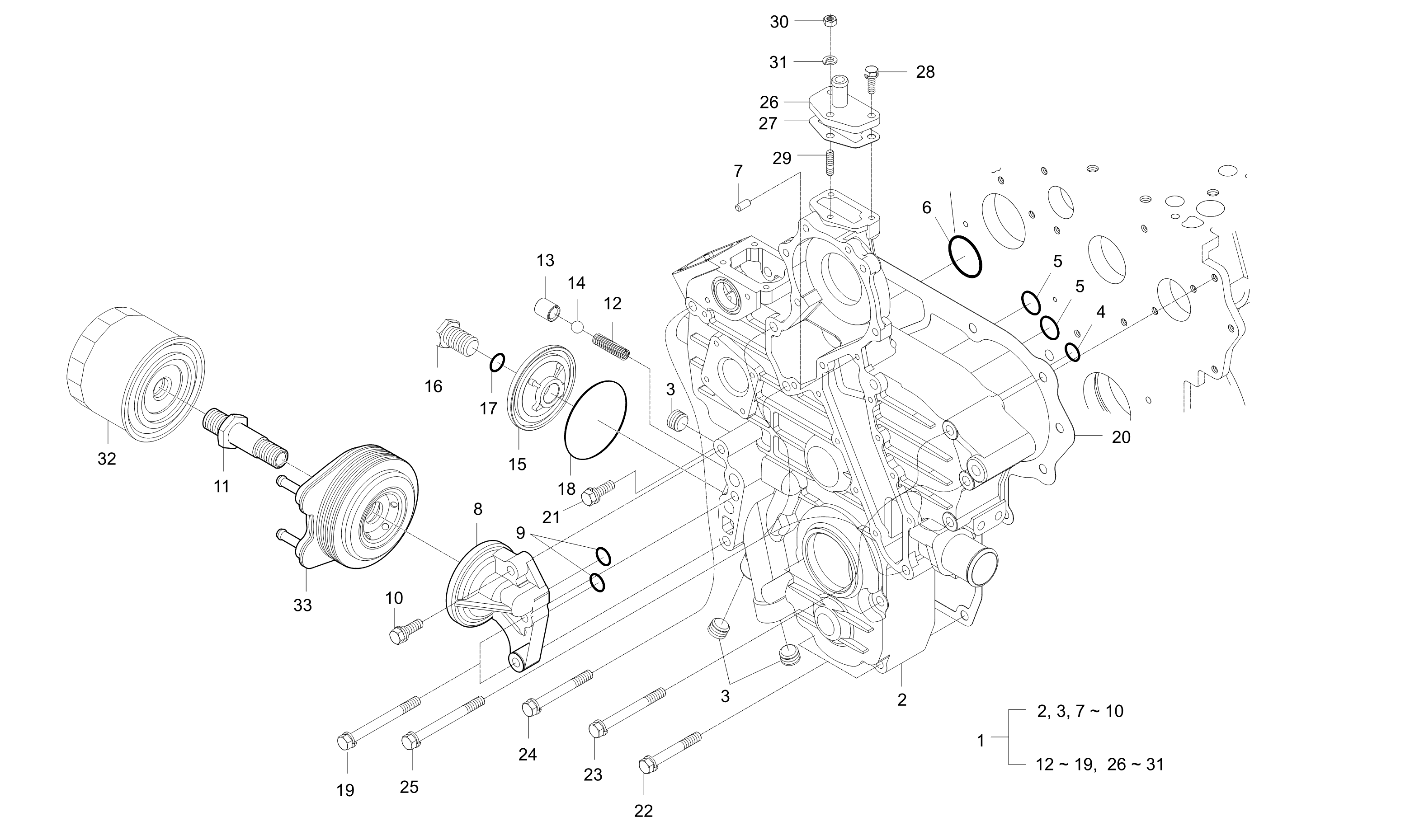

Diagram for GEAR CASE GROUP - 4A220TLX-E040
  • 1

    GEARCASE ASSY

    • Part No. E5855-A0024
    • *multiple options for # 1
    • 1 shown on diagram
    $774.99
  • 1

    GEARCASE ASSY

    • Part No. E5855-A0025
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $954.99
  • 2

    GEAR CASE

    • Part No. E5850-04113
    • Applied Dates 2006-01-09 to 2007-07-26
    • *multiple options for # 2
    • 1 shown on diagram
    $0.01
  • 2

    GEAR CASE obs v

    • Part No. E5850-04114
    • Compatibility New Replaces Old
    • *multiple options for # 2
    • 1 shown on diagram
    $539.99
  • 2

    CASE, GEAR

    • Part No. E5850-04115
    • Compatibility Interchangeable
    • *multiple options for # 2
    • 1 shown on diagram
    $444.99
  • 3

    PLUG

    • Part No. E5800-96031
    • PT3/8
    • *multiple options for # 3
    • 3 shown on diagram
    $4.49
  • 3

    PLUG

    • Part No. E5800-96032
    • Compatibility Interchangeable
    • PT3/8
    • *multiple options for # 3
    • 3 shown on diagram
    $1.99
  • 4 O RING

    O RING

    • Part No. 04811-00150
    • DIA14.8
    • 1 shown on diagram
    $1.09
  • 5 O RING

    O RING

    • Part No. 04811-00220
    • DIA21.8
    • 2 shown on diagram
    $0.90
  • 6 O RING

    O RING

    • Part No. 04811-00360
    • 1 shown on diagram
    $1.19
  • 7

    STRAIGHT PIN

    • Part No. 05012-00612
    • 2 shown on diagram
    $1.49
  • 8

    USE E5850-32615, SUPPORT,OIL FILTER

    • Part No. E5850-32613
    • Applied Dates 2005-10-26 to 2007-03-01
    • *multiple options for # 8
    • 1 shown on diagram
    $21.99
  • 8

    USE E5850-32615, SUPPORT,OIL FILTER v

    • Part No. E5850-32614
    • Compatibility New Replaces Old
    • Applied Dates 2007-03-02 and up
    • *multiple options for # 8
    • 1 shown on diagram
    $29.99
  • 8

    SUPPORT,OIL FILTER

    • Part No. E5850-32616
    • Compatibility New Replaces Old
    • *multiple options for # 8
    • 1 shown on diagram
    $49.99
  • 8

    SUPPORT,OIL FILTER

    • Part No. E5850-32617
    • Compatibility New Replaces Old
    • *multiple options for # 8
    • 1 shown on diagram
    $54.99
  • 9 O RING

    O RING

    • Part No. 04811-00150
    • DIA14.8
    • 2 shown on diagram
    $1.09
  • 10 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 11

    TUBE, CONNECTING, Replaced by E6810-32292

    • Part No. E6810-32291
    • Applied Dates 2005-10-26 to 2007-07-05
    • *multiple options for # 11
    • 1 shown on diagram
    $17.81
  • 11

    TUBE, CONNECTING

    • Part No. E6810-32292
    • Compatibility Interchangeable
    • *multiple options for # 11
    • 1 shown on diagram
    $29.99
  • 12

    SPRING

    • Part No. 15241-3695-2
    • DIA1.2
    • 1 shown on diagram
    $6.49
  • 13

    SEAT,VALVE

    • Part No. E5500-36932
    • DIA16*21
    • 1 shown on diagram
    $16.99
  • 14

    STEEL BALL

    • Part No. 07715-03213
    • 13/32"(10.3188)
    • 1 shown on diagram
    $0.68
  • 15

    COVER

    • Part No. E5800-32882
    • 1 shown on diagram
    $19.99
  • 16

    BOLT, OIL FILTER COVER, Replaced by E5800-32913

    • Part No. E5800-32912
    • *multiple options for # 16
    • 1 shown on diagram
    $0.00
  • 16

    BOLT, COVER V

    • Part No. E5800-32913
    • Compatibility New Replaces Old
    • *multiple options for # 16
    • 1 shown on diagram
    $9.99
  • 17 O RING

    O RING

    • Part No. 04811-00150
    • DIA14.8
    • 1 shown on diagram
    $1.09
  • 18

    O RING

    • Part No. E5800-96831
    • 1 shown on diagram
    $9.99
  • 19

    BOLT, FLANGE dnr v

    • Part No. E5850-04081
    • M8×1.25
    • *multiple options for # 19
    • 2 shown on diagram
    $5.99
  • 19

    BOLT, FLANGE

    • Part No. E5850-04082
    • Compatibility New Replaces Old
    • M8 X 1.25
    • *multiple options for # 19
    • 2 shown on diagram
    $5.99
  • 20

    GEAR CASE GASKET V

    • Part No. E5850-04131
    • Applied Dates Up to 2006-08-25
    • *multiple options for # 20
    • 1 shown on diagram
    $27.99
  • 20

    GASKET GEAR CASE V

    • Part No. E5850-04132
    • Compatibility New Replaces Old
    • *multiple options for # 20
    • 1 shown on diagram
    $35.99
  • 21 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 22

    Bolt With Washer, M8 P1.25 x 60mm

    • Part No. 01123-50860
    • M8XP1.25
    • 2 shown on diagram
    $3.49
  • 23

    Bolt With Washer, M8 P1.25 x 70mm

    • Part No. 01123-50870
    • M8XP1.25
    • 5 shown on diagram
    $3.49
  • 24

    Bolt With Washer, M8 P1.25 x 75mm

    • Part No. 01123-50875
    • M8XP1.25
    • 2 shown on diagram
    $3.99
  • 25

    Bolt With Washer, M8 P1.25 x 85mm

    • Part No. 01123-50885
    • 3 shown on diagram
    $3.99
  • 26

    Water Return Flange

    • Part No. 15521-7332-1
    • 1 shown on diagram
    $16.99
  • 27

    GASKET

    • Part No. 15521-7333-1
    • Applied Dates Up to 2006-08-25
    • T0.5*68*43
    • *multiple options for # 27
    • 1 shown on diagram
    $0.94
  • 27

    GASKET v

    • Part No. E5500-73332
    • Compatibility New Replaces Old
    • t0.5
    • *multiple options for # 27
    • 1 shown on diagram
    $3.49
  • 28

    BOLT, WASHER

    • Part No. 01023-50620
    • M6XP1.0
    • 2 shown on diagram
    $1.39
  • 29

    STUD

    • Part No. 01513-50616
    • DIA6*28
    • 1 shown on diagram
    $2.99
  • 30 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
  • 31 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 1 shown on diagram
    $0.61
  • 32 Engine Oil Filter

    Engine Oil Filter

    • Part No. E6201-32443
    • 1 shown on diagram
    $15.99
  • 33

    ASSY,OIL COOLER

    • Part No. E6500-32452
    • Applied Dates Up to 2005-10-25
    • *multiple options for # 33
    • 1 shown on diagram
    $414.99
  • 33

    ASSY COOLER, ENGINE OIL dnr v

    • Part No. E6810-32451
    • Compatibility No Interchange
    • *multiple options for # 33
    • 1 shown on diagram
    $369.99
