FRONT WEIGHT GROUP - CK30-T1065A

Kioti TRACTOR | CK Series | CK25

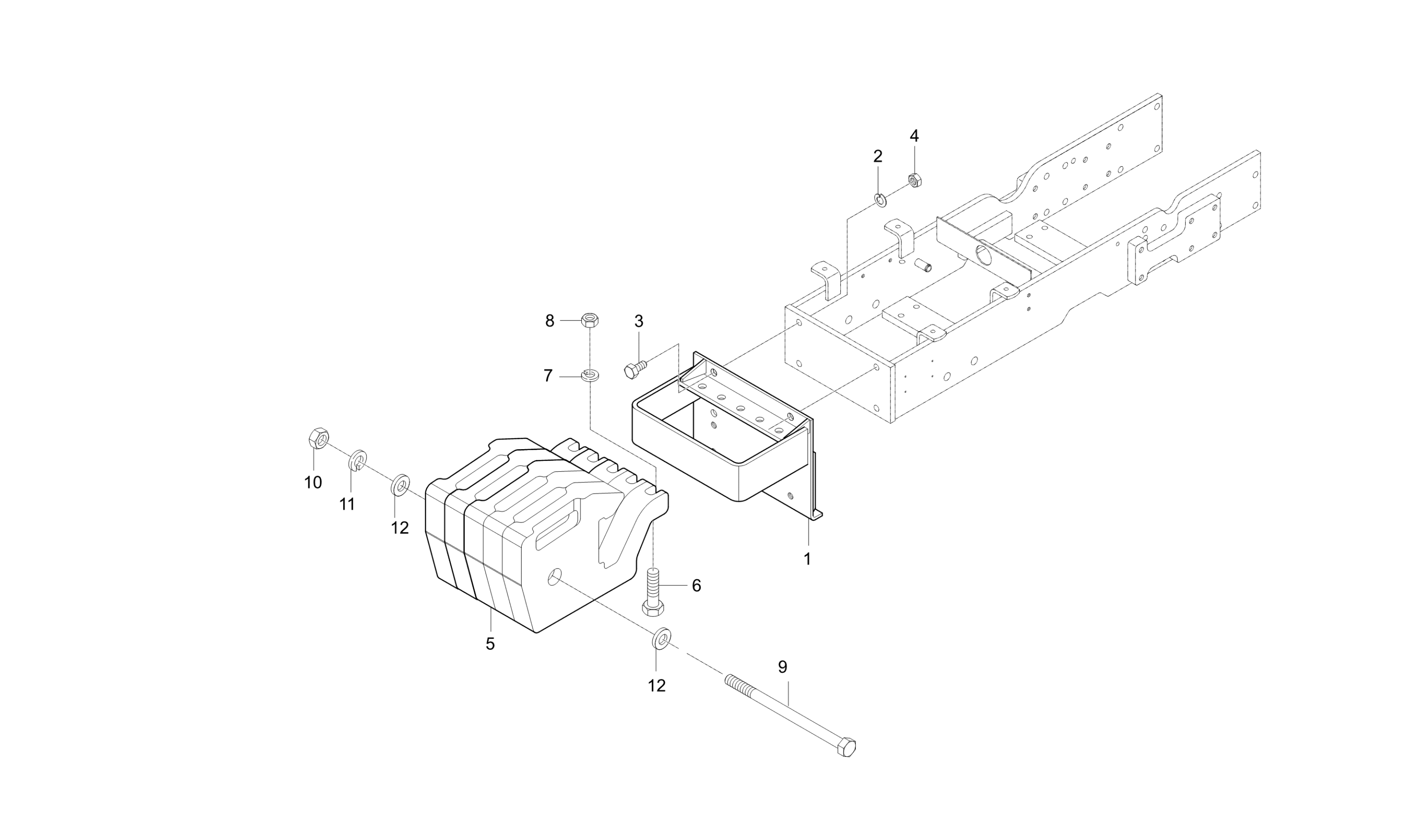

Diagram for FRONT WEIGHT GROUP - CK30-T1065A
  • 1

    BRACKET,FRONT WEIGHT

    • Part No. T2611-50021
    • * multiple options for #1
    • 1 shown on diagram
    $199.99
  • 1

    BRACKET, WEIGHT FR

    • Part No. T2611-50021BB
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $219.99
  • 2

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 4 shown on diagram
    $0.90
  • 3

    BOLT M14 P1.50 × 35mm

    • Part No. 01173-51435
    • M14XP1.5
    • 4 shown on diagram
    $3.49
  • 4 NUT

    NUT

    • Part No. 02176-50140
    • M14XP1.5
    • 4 shown on diagram
    $1.79
  • 5

    WEIGHT,COUNTER dnr v

    • Part No. T2540-54602
    • 20KG
    • * multiple options for #5
    • 5 shown on diagram
    $344.99
  • 5

    WEIGHT, BALANCE

    • Part No. T2540-54603
    • Compatibility Interchngable
    • 20KG
    • * multiple options for #5
    • 5 shown on diagram
    $344.99
  • 6

    BOLT

    • Part No. 01073-51460
    • 5 shown on diagram
    $6.49
  • 7

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 5 shown on diagram
    $0.90
  • 8 NUT

    NUT

    • Part No. 02176-50140
    • M14XP1.5
    • 5 shown on diagram
    $1.79
  • 9

    BOLT,WEIGHT

    • Part No. T2611-44931
    • M12*1.25
    • 1 shown on diagram
    $15.99
  • 10 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 1 shown on diagram
    $1.49
  • 11 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 1 shown on diagram
    $0.95
  • 12 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 2 shown on diagram
    $0.85
