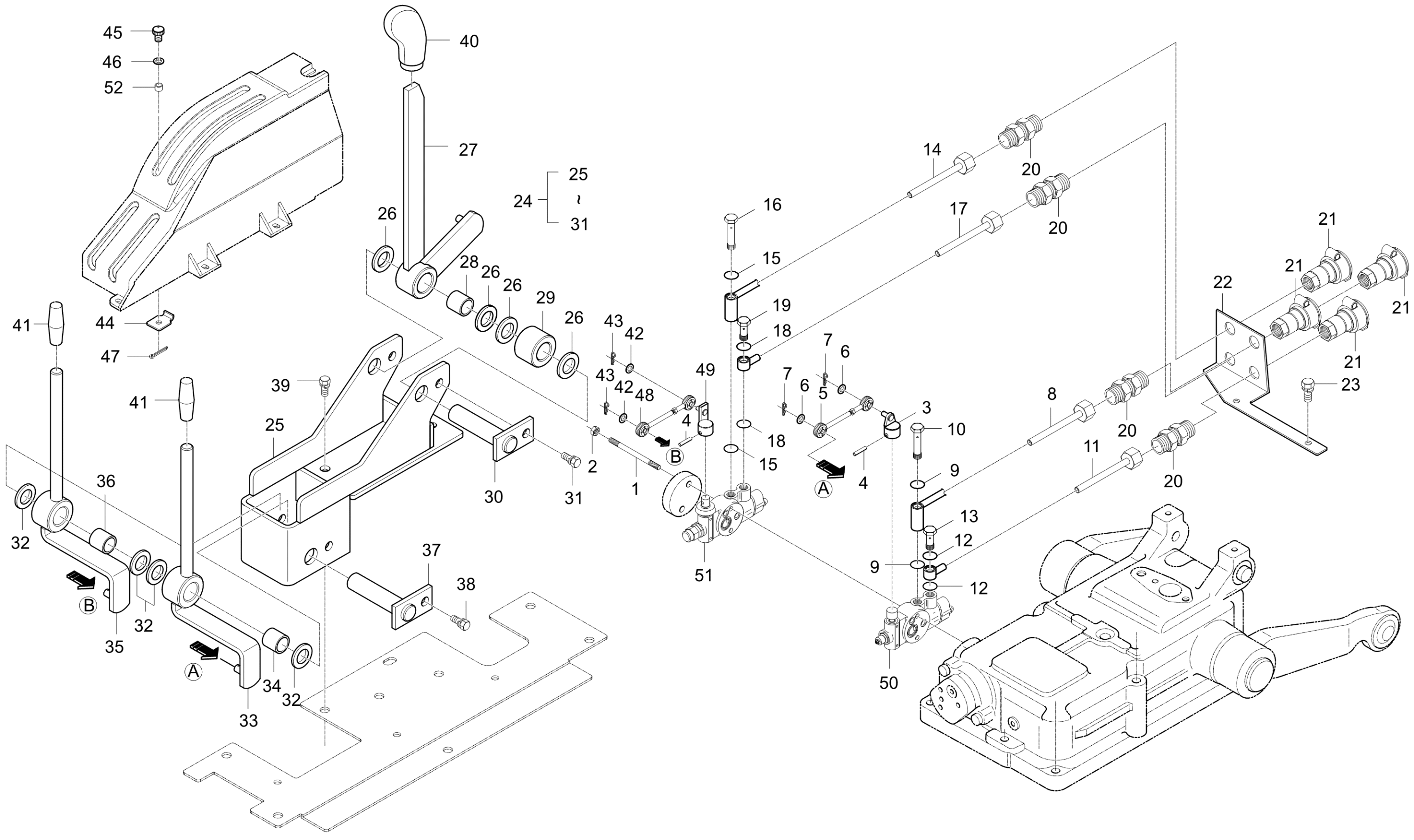

EXTERNAL HYDRAULIC VALVE 3 GROUP(Option) - CK30ME-T760-3A
Kioti TRACTOR | CK Series | CK25
-
STUD M10X120MM
- Part No. T4681-37861
- 2 shown on diagram
$9.99 -
NUT, REMOVE CHECK V
- Part No. 41182-5151-1
- DIA10
- 2 shown on diagram
$1.49 -
LEVER1 DOUBLE
- Part No. T2185-68491
- 1 shown on diagram
$31.99 -
PIN, SPRING
- Part No. 05411-00630
- DIA6.4XL30
- 2 shown on diagram
$0.90 -
Rod 1 (Double)
- Part No. T2185-68512
- 1 shown on diagram
$35.99 -
Flat Washer M8
- Part No. 04013-50080
- 2 shown on diagram
$0.79 -
PIN, SNAP
- Part No. 05515-50215
- 2 shown on diagram
$0.00 -

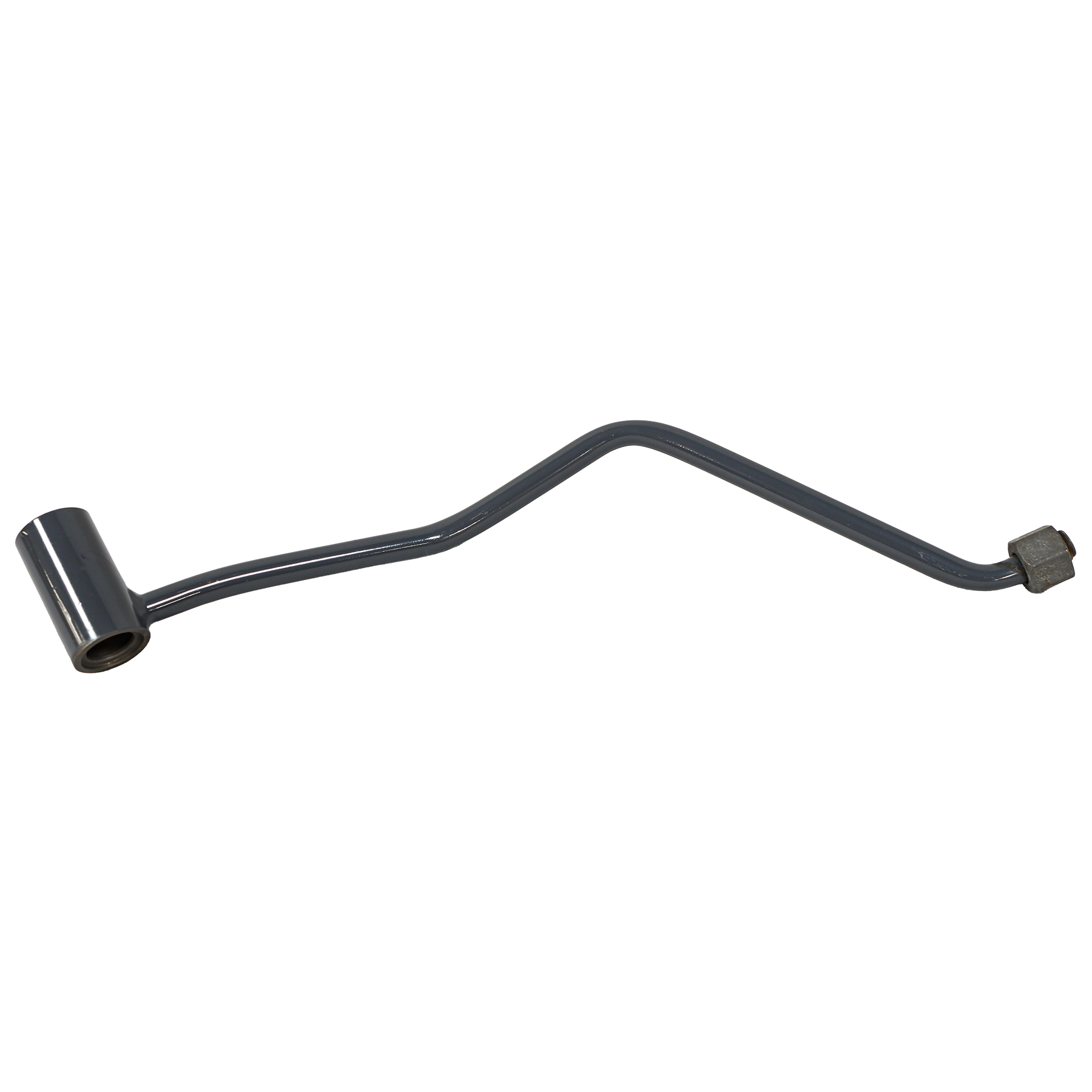

TUBE A, HYD
- Part No. T2185-90011
- 1 shown on diagram
$119.99 -
O RING
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$1.19 -
BOLT 2, JOINT
- Part No. T4520-37372
- M18*1.5
- 1 shown on diagram
$29.99 -

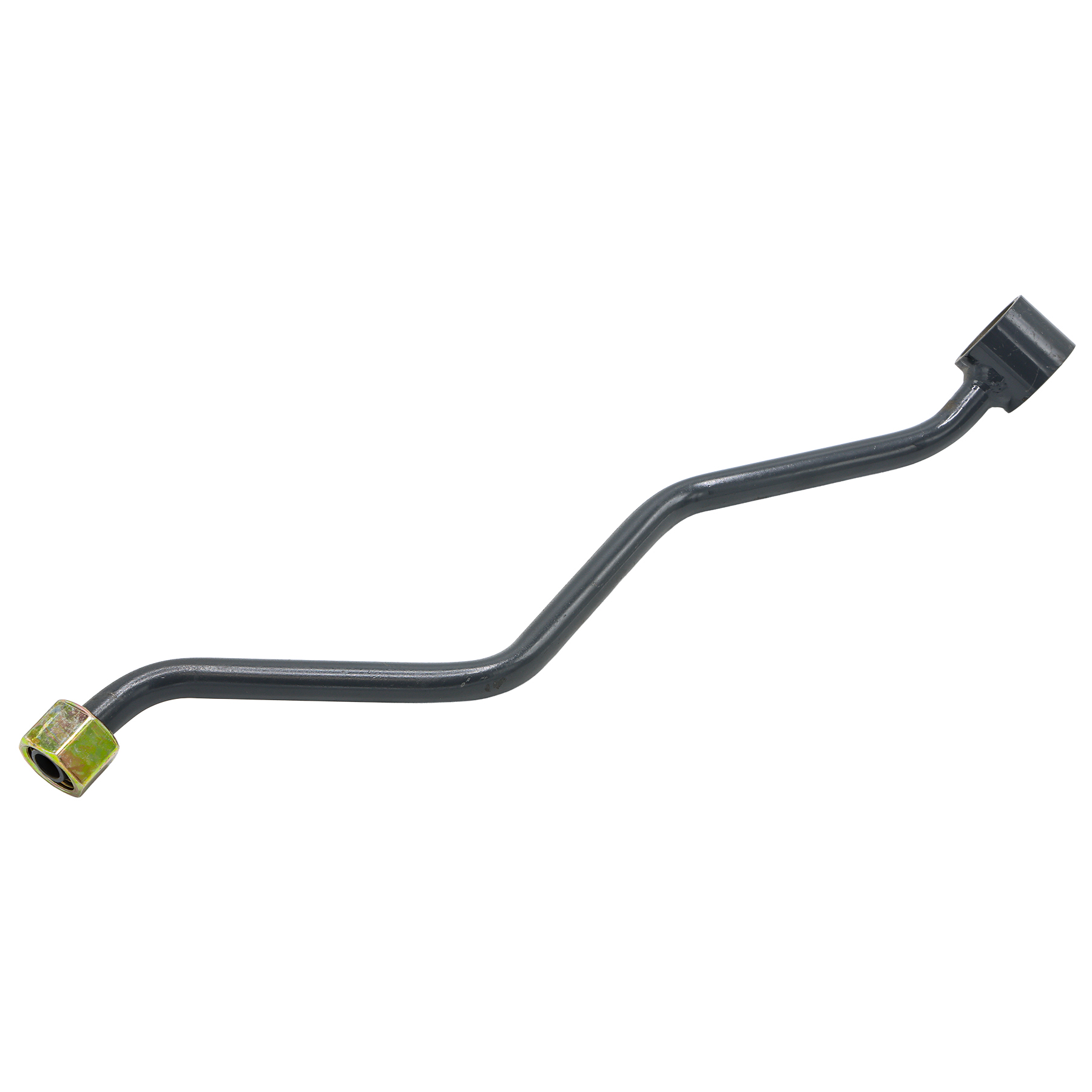

TUBE B, HYD
- Part No. T2185-90021
- 1 shown on diagram
$91.99 -
O RING
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$1.19 -
BOLT, JOINT
- Part No. T4520-90042
- 1 shown on diagram
$26.99 -
TUBE C, HYD
- Part No. T4682-90031
- 1 shown on diagram
$95.99 -
O RING
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$1.19 -
BOLT 2, JOINT
- Part No. T4520-37372
- M18*1.5
- 1 shown on diagram
$29.99 -
TUBE D HYD
- Part No. T4682-90041
- 1 shown on diagram
$85.99 -
O RING
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$1.19 -
BOLT, JOINT
- Part No. T4520-90042
- 1 shown on diagram
$26.99 -
CONNECTOR W/ FILTER
- Part No. T4682-37581
- 4 shown on diagram
$39.99 -
COUPLER SOCKET ASS`Y
- Part No. T4520-90093
- 1/2"
- 4 shown on diagram
$89.99 -
BRACKET, SOCKET
- Part No. T2185-90071
- T3.2
- 1 shown on diagram
$13.99 -
BOLT
- Part No. 01133-51018
- M10XP1.25
- 2 shown on diagram
$3.49 -
ASS’Y, HYD LEVER
- Part No. T2185-65232
- 1 shown on diagram
$224.99 -
BRACKET(DRAFT, POSITION)
- Part No. T2185-65433
- 1 shown on diagram
$51.99 -
WASHER
- Part No. T4810-66721
- 4 shown on diagram
$1.39 -
LEVER, POSITION CONTROL obs v
- Part No. T2185-65413
- 1 shown on diagram
$42.99 -
BUSH
- Part No. 08511-01620
- MB1620DU
- 1 shown on diagram
$8.99 -
Spacer
- Part No. T2185-65422
- 1 shown on diagram
$14.99 -
SHAFT POSITION DRAFT
- Part No. T2185-66531
- 1 shown on diagram
$15.99 -
Bolt With Washer, M8 P1.25 x 16mm 01123-50816
- Part No. 01123-50816
- M8XP1.25
- 1 shown on diagram
$1.09 -
WASHER
- Part No. T4810-66721
- 4 shown on diagram
$1.39 -
LEVER DOUBLE LH v
- Part No. T2185-65353
- 1 shown on diagram
$59.99 -
BUSH
- Part No. 08511-01620
- MB1620DU
- 1 shown on diagram
$8.99 -
LEVER DOUBLE RH v
- Part No. T2185-65364
- 1 shown on diagram
$46.99 -
BUSH
- Part No. 08511-01620
- MB1620DU
- 1 shown on diagram
$8.99 -
SHAFT POSITION DRAFT
- Part No. T2185-66531
- 1 shown on diagram
$15.99 -
Bolt With Washer, M8 P1.25 x 16mm 01123-50816
- Part No. 01123-50816
- M8XP1.25
- 1 shown on diagram
$1.09 -
Bolt With Washer, M8 P1.25 x 20mm
- Part No. 01123-50820
- M8XP1.25
- 3 shown on diagram
$2.49 -
GRIP
- Part No. T2610-24461
- 1 shown on diagram
$12.99 -
GRIP
- Part No. T2360-33192
- 2 shown on diagram
$6.49 -
Flat Washer M6
- Part No. 04013-50060
- M6
- 2 shown on diagram
$0.73 -
PIN, SNAP
- Part No. 05525-50600
- DIA6
- 2 shown on diagram
$1.19 -
Lever Stopper (T2350-95472)
- Part No. T2350-95472
- 1 shown on diagram
$3.49 -
BOLT, Replaced by 55571-32381
- Part No. 55571-3238-1
- 1 shown on diagram
$0.00 -
Flat Washer M6, Replaced by 04012-50060
- Part No. 04015-50060
- M6
- 1 shown on diagram
$0.00 -
Split Pin (05511-50215)
- Part No. 05511-50215
- DIA1.8XL15
- 1 shown on diagram
$0.62 -
ROD2 (DOUBLE) v
- Part No. T2185-68521
- 1 shown on diagram
$23.99 -
Lever 2 (Double)
- Part No. T2185-68502
- 1 shown on diagram
$28.99 -
DT DOUBLE ACTING V/V, Replaced by 8264
- Part No. 008264
- MITA
- 1 shown on diagram
$1,069.99 -
VALVE, FLOATING
- Part No. 008266
- MITA
- 1 shown on diagram
$1,074.99 -
SPACER
- Part No. T4520-83301
- DIA10.5*T2.0
- 1 shown on diagram
$4.99
