REMOTE HYDRAULIC VALVE GROUP - CK30-T1075A

Kioti TRACTOR | CK Series | CK25

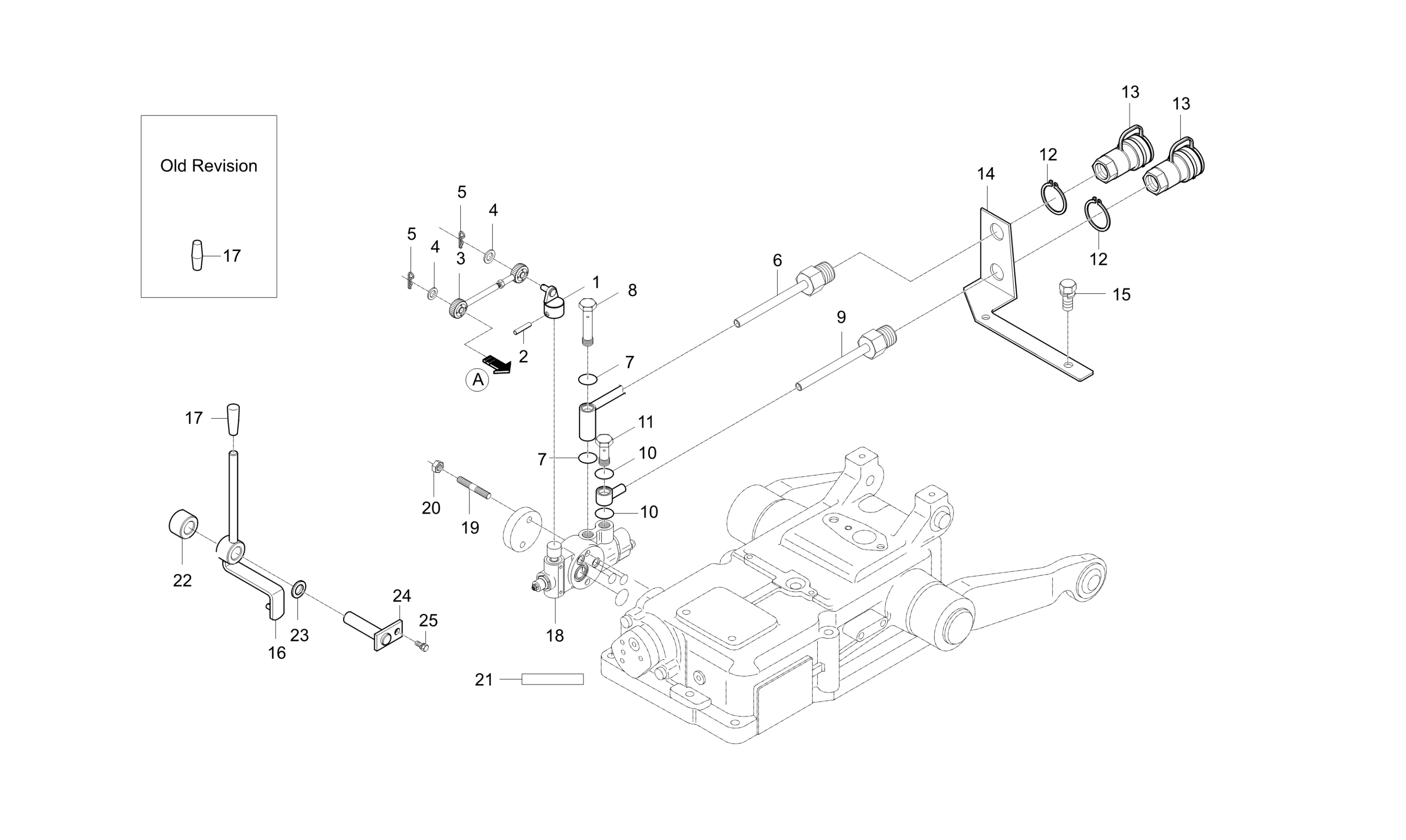

Diagram for REMOTE HYDRAULIC VALVE GROUP - CK30-T1075A

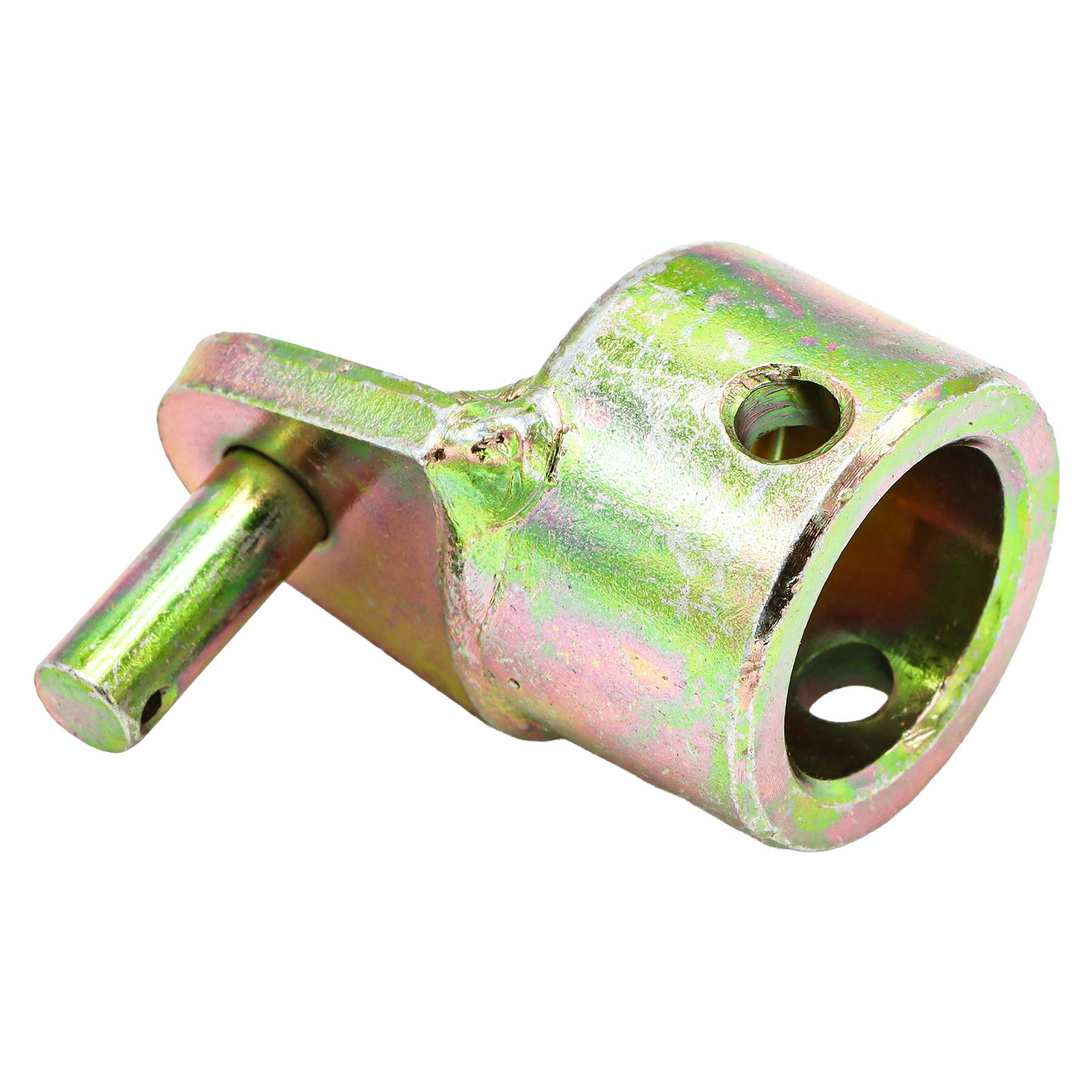

  • 1 LEVER1 DOUBLE

    LEVER1 DOUBLE

    • Part No. T2185-68491
    • 1 shown on diagram
    $31.99
  • 2 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • DIA6.4XL30
    • 1 shown on diagram
    $0.90
  • 3

    ROD2 v

    • Part No. T4686-68521
    • 1 shown on diagram
    $42.99
  • 4 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $0.79
  • 5

    PIN,SNAP

    • Part No. 05525-50080
    • 2 shown on diagram
    $1.19
  • 6

    Hydraulic Tube A, Replaced by T2185-90012BB

    • Part No. T2185-90012
    • Applied Dates Up to 2007-09-04
    • Serial No. Up to G70100404
    • * multiple options for #6
    • 1 shown on diagram
    $51.99
  • 6 Tube Hyd A V

    Tube Hyd A V

    • Part No. T2185-90013
    • Compatibility Call for compat
    • Applied Dates 2007-09-05 and up
    • Serial No. G70100405 and up
    • * multiple options for #6
    • 1 shown on diagram
    $94.99
  • 6 Tube, Hydraulic

    Tube, Hydraulic

    • Part No. T2185-90013BB
    • Compatibility No interchange
    • * multiple options for #6
    • 1 shown on diagram
    $164.99
  • 7 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 8

    BOLT 2, JOINT

    • Part No. T4520-37372
    • M18*1.5
    • 1 shown on diagram
    $29.99
  • 9

    TUBE B, HYD

    • Part No. T2185-90022
    • Applied Dates Up to 2007-09-04
    • Serial No. Up to G70100404
    • * multiple options for #9
    • 1 shown on diagram
    $47.99
  • 9

    TUBE HYD B v

    • Part No. T2185-90023
    • Compatibility Call for compat
    • Applied Dates 2007-09-05 and up
    • Serial No. G70100405 and up
    • * multiple options for #9
    • 1 shown on diagram
    $159.99
  • 9

    Hydraulic Tube

    • Part No. T2185-90023BB
    • Compatibility No interchange
    • * multiple options for #9
    • 1 shown on diagram
    $159.99
  • 10 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 11 BOLT, JOINT

    BOLT, JOINT

    • Part No. T4520-90042
    • 1 shown on diagram
    $26.99
  • 12 WASHER,SEAL

    WASHER,SEAL

    • Part No. 04717-02150
    • Applied Dates Up to 2007-09-04
    • Serial No. Up to G70100404
    • PS1/2
    • * multiple options for #12
    • 2 shown on diagram
    $2.49
  • 12

    CIR-CLIP

    • Part No. 04612-00220
    • Compatibility Call for compat
    • Applied Dates 2007-09-05 and up
    • Serial No. G70100405 and up
    • * multiple options for #12
    • 2 shown on diagram
    $0.59
  • 13

    COUPLER SOCKET ASS`Y

    • Part No. T4520-90093
    • 1/2"
    • 2 shown on diagram
    $89.99
  • 14

    SUPPORT, SOKET

    • Part No. T2181-90072
    • T3.2
    • * multiple options for #14
    • 1 shown on diagram
    $19.99
  • 14

    Socket Support Bracket

    • Part No. T2181-90072BB
    • Compatibility No interchange
    • * multiple options for #14
    • 1 shown on diagram
    $19.99
  • 15 BOLT

    BOLT

    • Part No. 01133-51018
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 16

    LEVER DOUBLE LH v

    • Part No. T2185-65353
    • 2 shown on diagram
    $59.99
  • 17

    GRIP

    • Part No. T2360-33192
    • 1 shown on diagram
    $6.49
  • 18

    DT DOUBLE ACTING V/V, Replaced by 8264

    • Part No. 008264
    • MITA
    • * multiple options for #18
    • 1 shown on diagram
    $1,069.99
  • 18 DOUBLE ACTING VALVE(DETENT)

    DOUBLE ACTING VALVE(DETENT)

    • Part No. T4930-35041
    • Compatibility Interchngable
    • * multiple options for #18
    • 1 shown on diagram
    $739.99
  • 19

    STUD M10X73MM

    • Part No. T2610-37871
    • M10*1.25
    • 2 shown on diagram
    $5.99
  • 20

    NUT, REMOVE CHECK V

    • Part No. 41182-5151-1
    • Applied Dates Up to 2008-01-31
    • DIA10
    • * multiple options for #20
    • 2 shown on diagram
    $1.49
  • 20

    NUT

    • Part No. C7910-17371
    • Compatibility Interchngable
    • Applied Dates 2008-02-01 and up
    • * multiple options for #20
    • 2 shown on diagram
    $6.99
  • 21

    LABEL, DOUBLE ACTING, Replaced by TC26-1090A

    • Part No. T2185-53173
    • T0.05~0.08
    • * multiple options for #21
    • 1 shown on diagram
    $0.00
  • 21

    LABEL,DOLBLE ACTING

    • Part No. T2185-53174
    • Compatibility Interchngable
    • T0.05~0.08
    • * multiple options for #21
    • 1 shown on diagram
    $1.59
  • 22

    Spacer

    • Part No. T2185-65422
    • Applied Dates 2008-02-01 to 2008-03-03
    • * multiple options for #22
    • 1 shown on diagram
    $14.99
  • 22

    SPACER

    • Part No. T2185-66721
    • Compatibility Call for compat
    • Applied Dates 2008-03-04 and up
    • * multiple options for #22
    • 1 shown on diagram
    $3.99
  • 23 WASHER

    WASHER

    • Part No. T4810-66721
    • Applied Dates 2008-03-04 and up
    • 1 shown on diagram
    $1.39
  • 24 SHAFT POSITION DRAFT

    SHAFT POSITION DRAFT

    • Part No. T2185-66531
    • Applied Dates 2008-02-01 and up
    • 1 shown on diagram
    $15.99
  • 25 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates 2008-02-01 and up
    • M8XP1.25
    • 1 shown on diagram
    $1.09
