REMOTE HYDRAULIC VALVE GROUP - CK30-T1075-2A

Kioti TRACTOR | CK Series | CK25

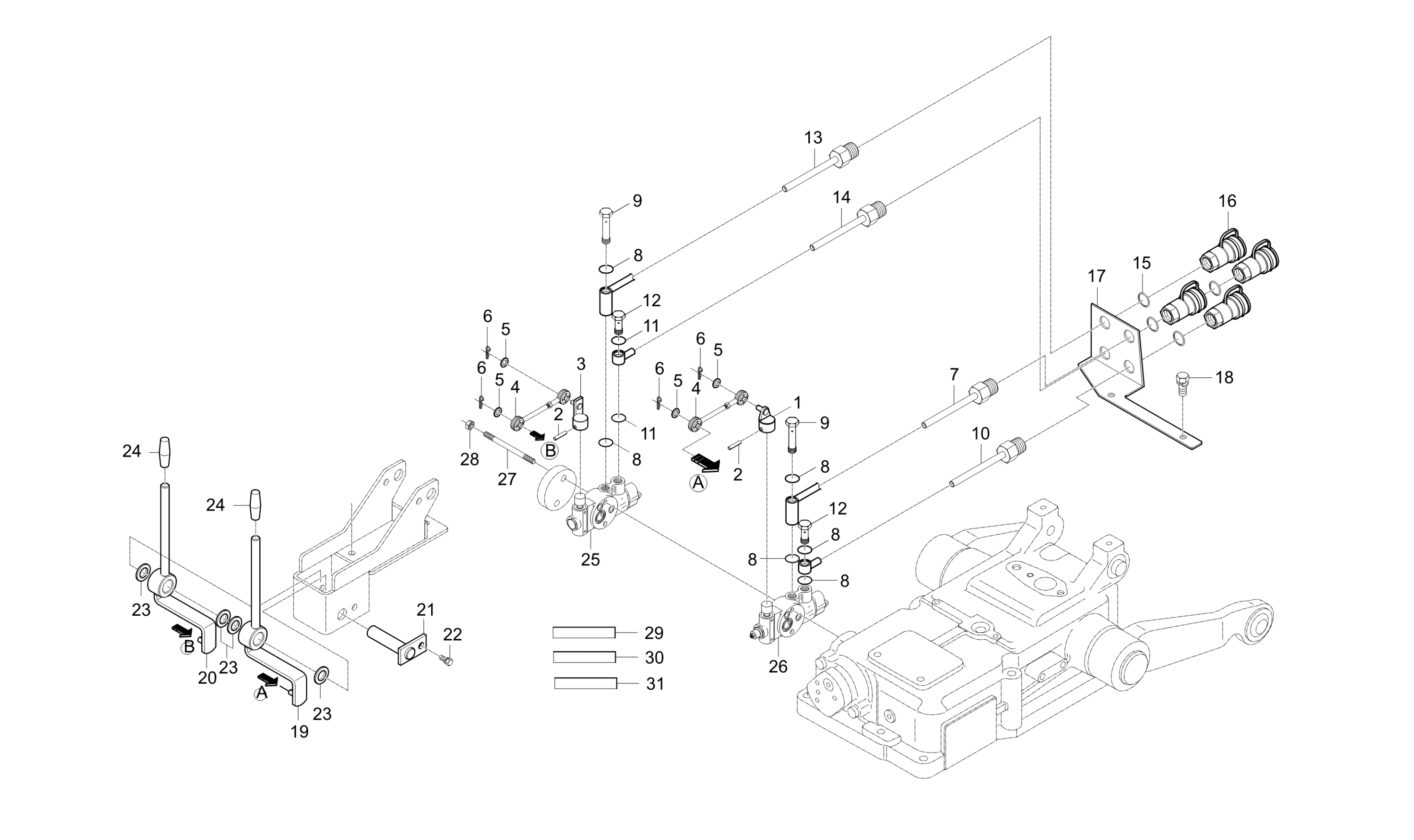

Diagram for REMOTE HYDRAULIC VALVE GROUP - CK30-T1075-2A
  • 1 LEVER1 DOUBLE

    LEVER1 DOUBLE

    • Part No. T2185-68491
    • 1 shown on diagram
    $31.99
  • 2 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • DIA6.4XL30
    • 2 shown on diagram
    $0.90
  • 3

    Lever 2 (Double)

    • Part No. T2185-68502
    • 1 shown on diagram
    $28.99
  • 4

    ROD2 v

    • Part No. T4686-68521
    • 2 shown on diagram
    $42.99
  • 5 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 4 shown on diagram
    $0.79
  • 6

    PIN,SNAP

    • Part No. 05525-50080
    • Applied Dates 2004-02-14 to 2008-05-20
    • * multiple options for #6
    • 4 shown on diagram
    $1.19
  • 6 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • Compatibility Call for compat
    • Applied Dates 2008-05-21 and up
    • Serial No. G70100101 to F70100360
    • DIA8
    • * multiple options for #6
    • 4 shown on diagram
    $1.29
  • 7 Tube Hyd A V

    Tube Hyd A V

    • Part No. T2185-90013
    • Applied Dates 2007-09-05 and up
    • * multiple options for #7
    • 1 shown on diagram
    $94.99
  • 7 Tube, Hydraulic

    Tube, Hydraulic

    • Part No. T2185-90013BB
    • Compatibility No interchange
    • * multiple options for #7
    • 1 shown on diagram
    $164.99
  • 8 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 4 shown on diagram
    $1.19
  • 9

    BOLT 2, JOINT

    • Part No. T4520-37372
    • M18*1.5
    • 2 shown on diagram
    $29.99
  • 10

    TUBE HYD B v

    • Part No. T2185-90023
    • Applied Dates 2007-09-05 and up
    • * multiple options for #10
    • 1 shown on diagram
    $159.99
  • 10

    Hydraulic Tube

    • Part No. T2185-90023BB
    • Compatibility No interchange
    • * multiple options for #10
    • 1 shown on diagram
    $159.99
  • 11 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 4 shown on diagram
    $1.19
  • 12 BOLT, JOINT

    BOLT, JOINT

    • Part No. T4520-90042
    • 2 shown on diagram
    $26.99

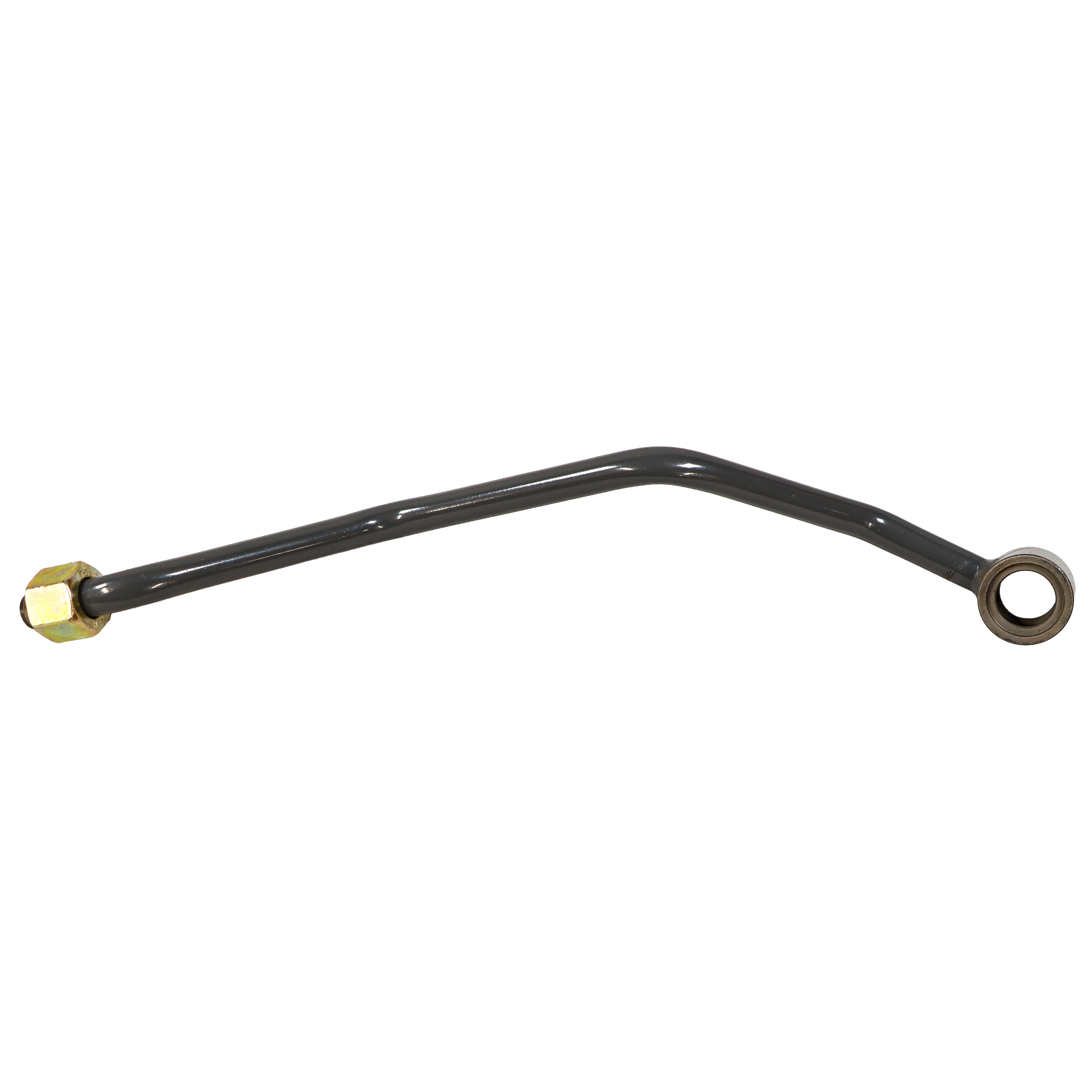

  • 13 TUBE HYD C V

    TUBE HYD C V

    • Part No. T2185-90032
    • Applied Dates 2007-09-05 and up
    • * multiple options for #13
    • 1 shown on diagram
    $79.99
  • 13 Hydraulic Tube C

    Hydraulic Tube C

    • Part No. T2185-90032BB
    • Compatibility No interchange
    • * multiple options for #13
    • 1 shown on diagram
    $78.99

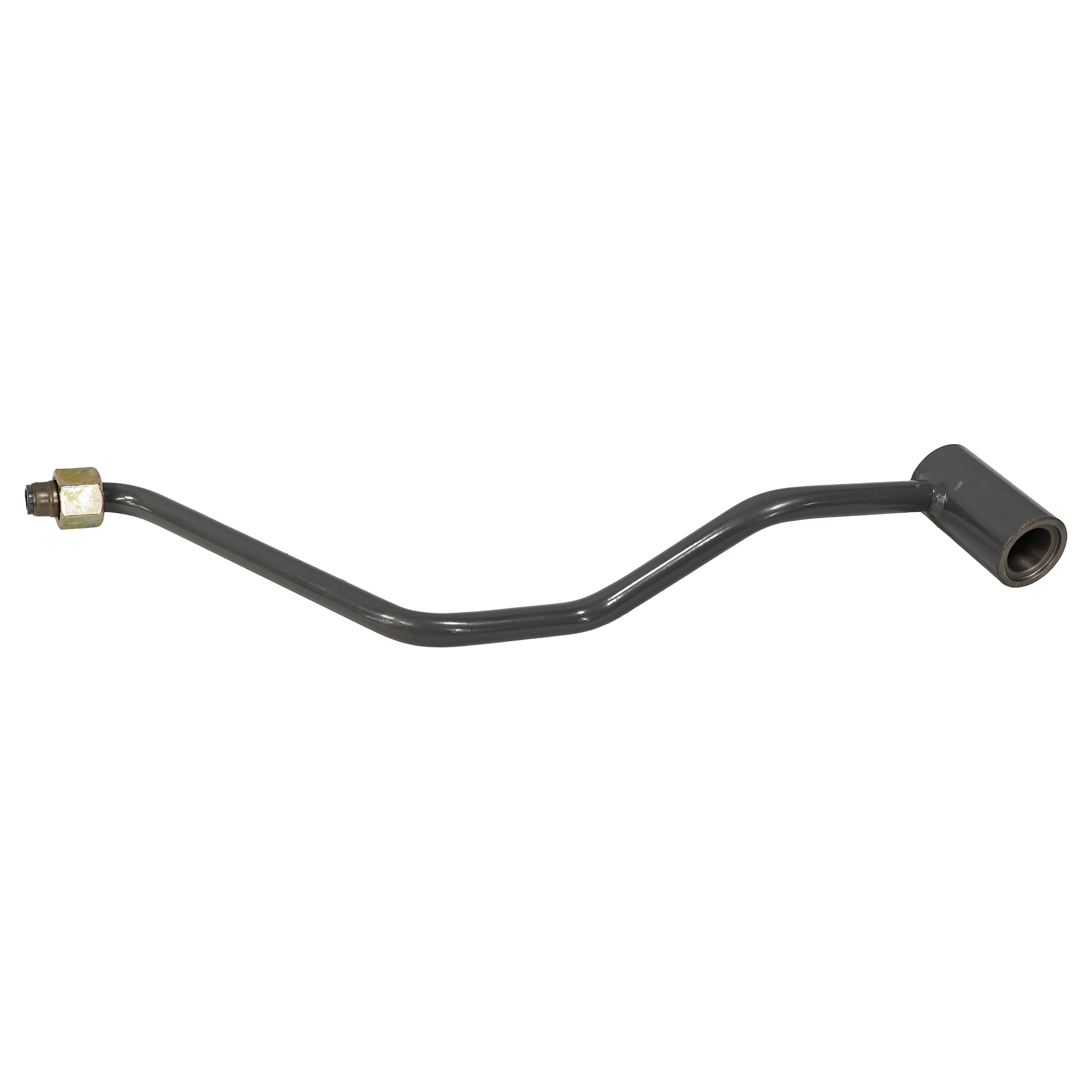

  • 14 TUBE HYD D V

    TUBE HYD D V

    • Part No. T2185-90042
    • Applied Dates 2007-09-05 and up
    • * multiple options for #14
    • 1 shown on diagram
    $129.99
  • 14 TUBE D, HYD v

    TUBE D, HYD v

    • Part No. T2185-90042BB
    • Compatibility No interchange
    • * multiple options for #14
    • 1 shown on diagram
    $139.99
  • 15

    CIR-CLIP

    • Part No. 04612-00220
    • Applied Dates 2007-09-05 and up
    • 4 shown on diagram
    $0.59
  • 16

    COUPLER SOCKET ASS`Y

    • Part No. T4520-90093
    • 1/2"
    • 4 shown on diagram
    $89.99
  • 17

    Hydraulic Coupler Support, Replaced by T2185-90072BB

    • Part No. T2185-90072
    • T3.2
    • 1 shown on diagram
    $19.99
  • 18 BOLT

    BOLT

    • Part No. 01133-51018
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 19

    LEVER DOUBLE LH v

    • Part No. T2185-65353
    • * multiple options for #19
    • 1 shown on diagram
    $59.99
  • 19

    LEVER, DOUBLE ACTING-LH v

    • Part No. T2185-65353BB
    • Compatibility No interchange
    • * multiple options for #19
    • 1 shown on diagram
    $59.99
  • 20

    LEVER DOUBLE RH v

    • Part No. T2185-65364
    • * multiple options for #20
    • 1 shown on diagram
    $46.99
  • 20

    Double Lever, (RH)

    • Part No. T2185-65364BB
    • Compatibility No interchange
    • * multiple options for #20
    • 1 shown on diagram
    $46.99
  • 21 SHAFT POSITION DRAFT

    SHAFT POSITION DRAFT

    • Part No. T2185-66531
    • 1 shown on diagram
    $15.99
  • 22 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 23 WASHER

    WASHER

    • Part No. T4810-66721
    • 4 shown on diagram
    $1.39
  • 24

    GRIP

    • Part No. T2360-33192
    • 2 shown on diagram
    $6.49
  • 25

    DT DOUBLE ACTING V/V, Replaced by 8264

    • Part No. 008264
    • MITA
    • * multiple options for #25
    • 1 shown on diagram
    $1,069.99
  • 25 DOUBLE ACTING VALVE(DETENT)

    DOUBLE ACTING VALVE(DETENT)

    • Part No. T4930-35041
    • Compatibility Interchngable
    • * multiple options for #25
    • 1 shown on diagram
    $739.99
  • 26

    DOUBLE ACTING VALVE, Replaced by 200123004

    • Part No. 008268
    • MITA
    • * multiple options for #26
    • 1 shown on diagram
    $0.00
  • 26

    ASSY,DOUBLE ACTING

    • Part No. T4930-35031
    • Compatibility Interchngable
    • * multiple options for #26
    • 1 shown on diagram
    $699.99
  • 27

    STUD M10X120MM

    • Part No. T4681-37861
    • 2 shown on diagram
    $9.99
  • 28

    NUT, REMOVE CHECK V

    • Part No. 41182-5151-1
    • DIA10
    • 2 shown on diagram
    $1.49
  • 29

    LABEL, DOUBLE ACTING, Replaced by TC26-1090A

    • Part No. T2185-53173
    • T0.05~0.08
    • * multiple options for #29
    • 1 shown on diagram
    $0.00
  • 29

    LABEL,DOLBLE ACTING

    • Part No. T2185-53174
    • Compatibility Interchngable
    • T0.05~0.08
    • * multiple options for #29
    • 1 shown on diagram
    $1.59
  • 30

    Double Acting Label

    • Part No. T2185-53273
    • T0.05~0.08
    • 1 shown on diagram
    $1.39
  • 31

    Coupler Socket Label

    • Part No. T2181-54121
    • T0.05~0.08
    • 1 shown on diagram
    $5.49
