FRONT WHEEL GROUP - CK30M-T570A

Kioti TRACTOR | CK Series | CK25

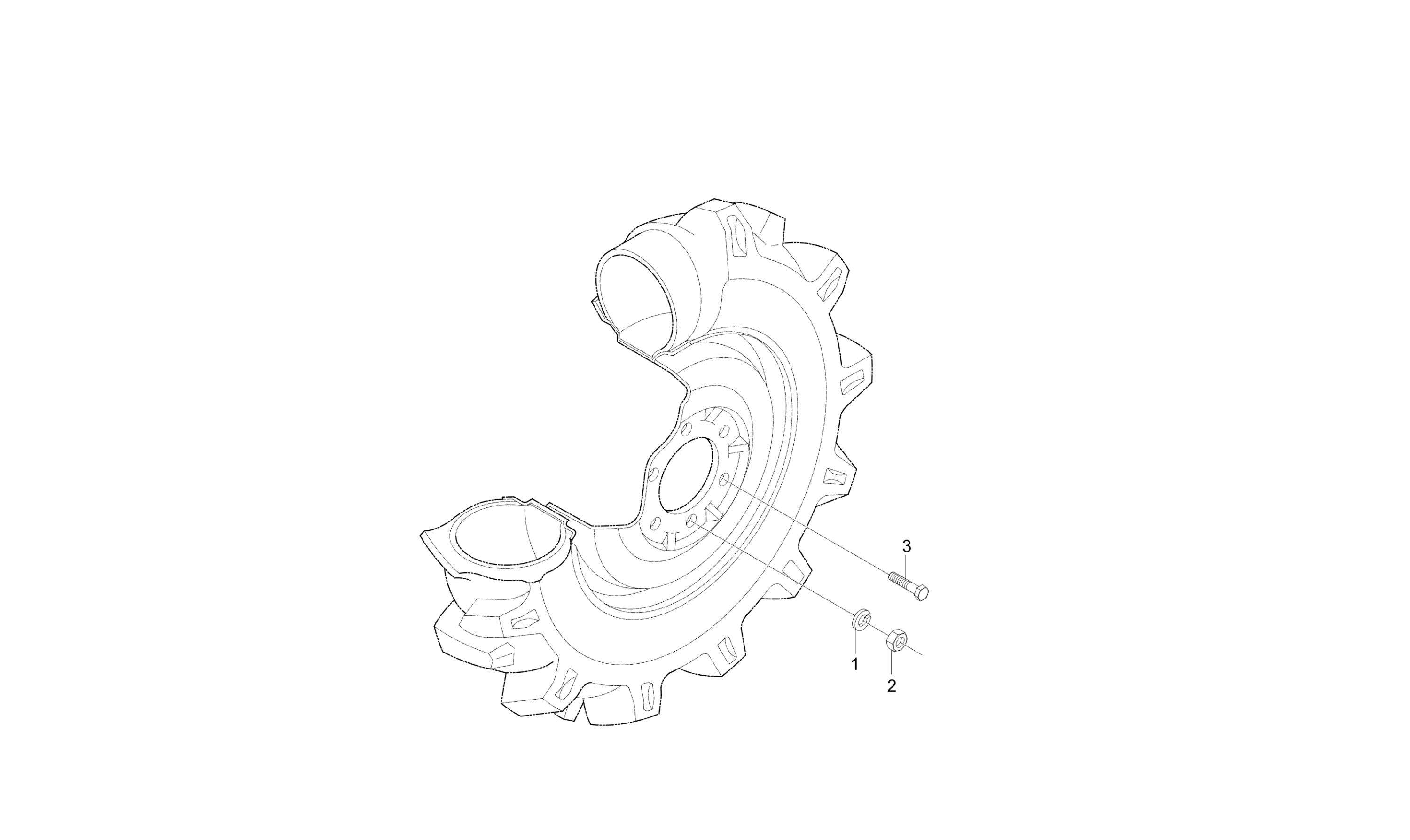

Diagram for FRONT WHEEL GROUP - CK30M-T570A
  • 1 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • Applied Dates 2008-06-11 to 2008-04-16
    • M12
    • 12 shown on diagram
    $0.95
  • 2 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • Applied Dates 2006-06-03 and up
    • M12XP1.25
    • 4 shown on diagram
    $1.49
  • 3

    OBS BOLT, Replaced by 01133-51225

    • Part No. 01173-51225
    • Applied Dates 2006-06-03 to 2008-04-16
    • M10*1.25
    • 8 shown on diagram
    $0.00
