REAR WHEEL GROUP - CK30M-T490A

Kioti TRACTOR | CK Series | CK25

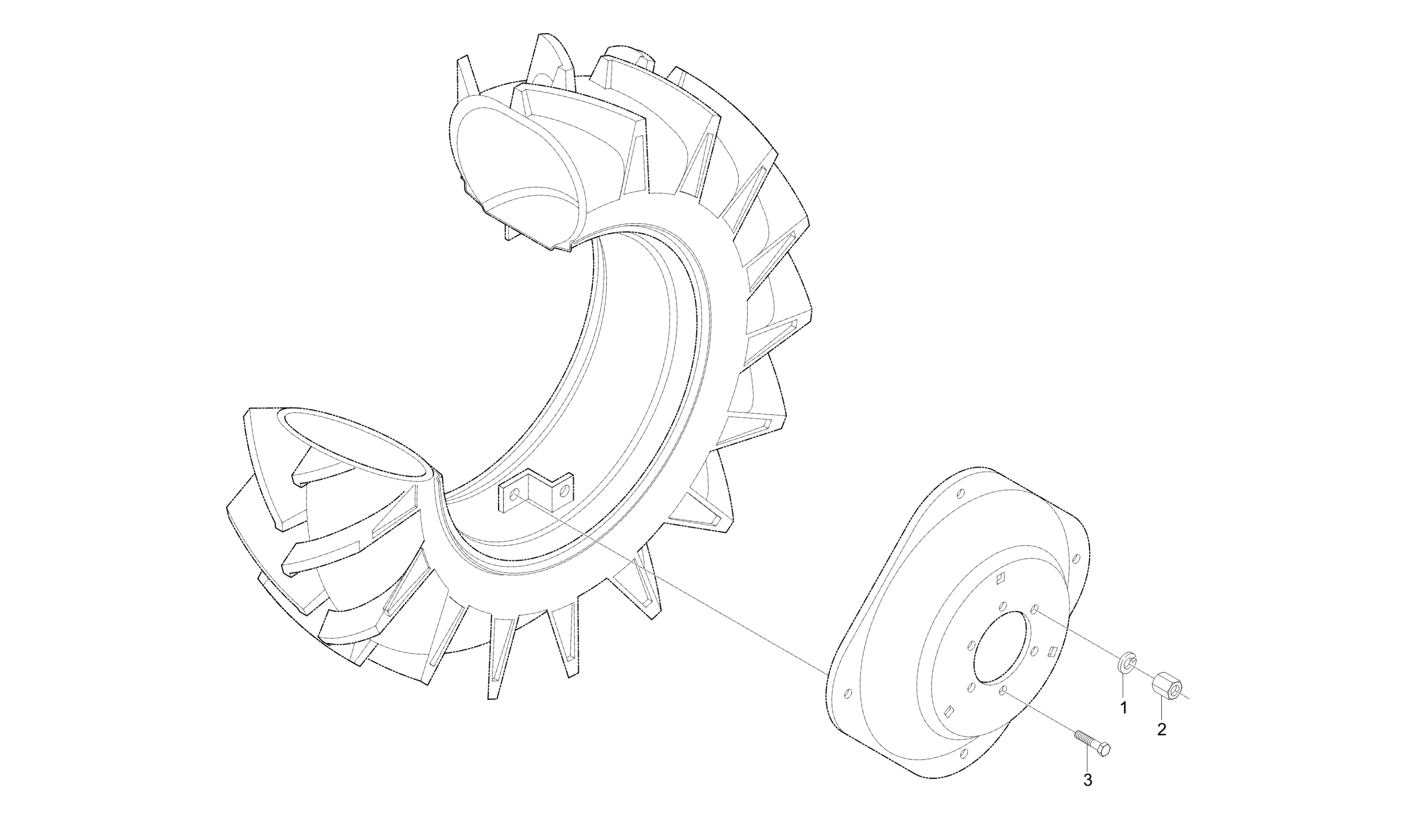

Diagram for REAR WHEEL GROUP - CK30M-T490A
  • 1 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 12 shown on diagram
    $1.29
  • 2 NUT, M16 P1.5

    NUT, M16 P1.5

    • Part No. T4340-27131
    • Applied Dates 2006-06-03 to 2008-06-01
    • 4 shown on diagram
    $7.49
  • 3 BOLT v M16 P1.5

    BOLT v M16 P1.5

    • Part No. 01173-51635
    • Applied Dates 2006-06-03 to 2007-05-15
    • Serial No. Up to G70100304
    • M16*P1.5
    • * multiple options for #3
    • 8 shown on diagram
    $7.49
  • 3 SCREW, M16 P1.5×30

    SCREW, M16 P1.5×30

    • Part No. 01073-51630
    • Compatibility New repl old
    • Applied Dates 2007-05-16 and up
    • Serial No. G70100305 and up
    • M16XP1.5
    • * multiple options for #3
    • 8 shown on diagram
    $6.49
