CLUTCH GROUP - EX55CH-T105A

Kioti TRACTOR | DK Series | DK60CHSE

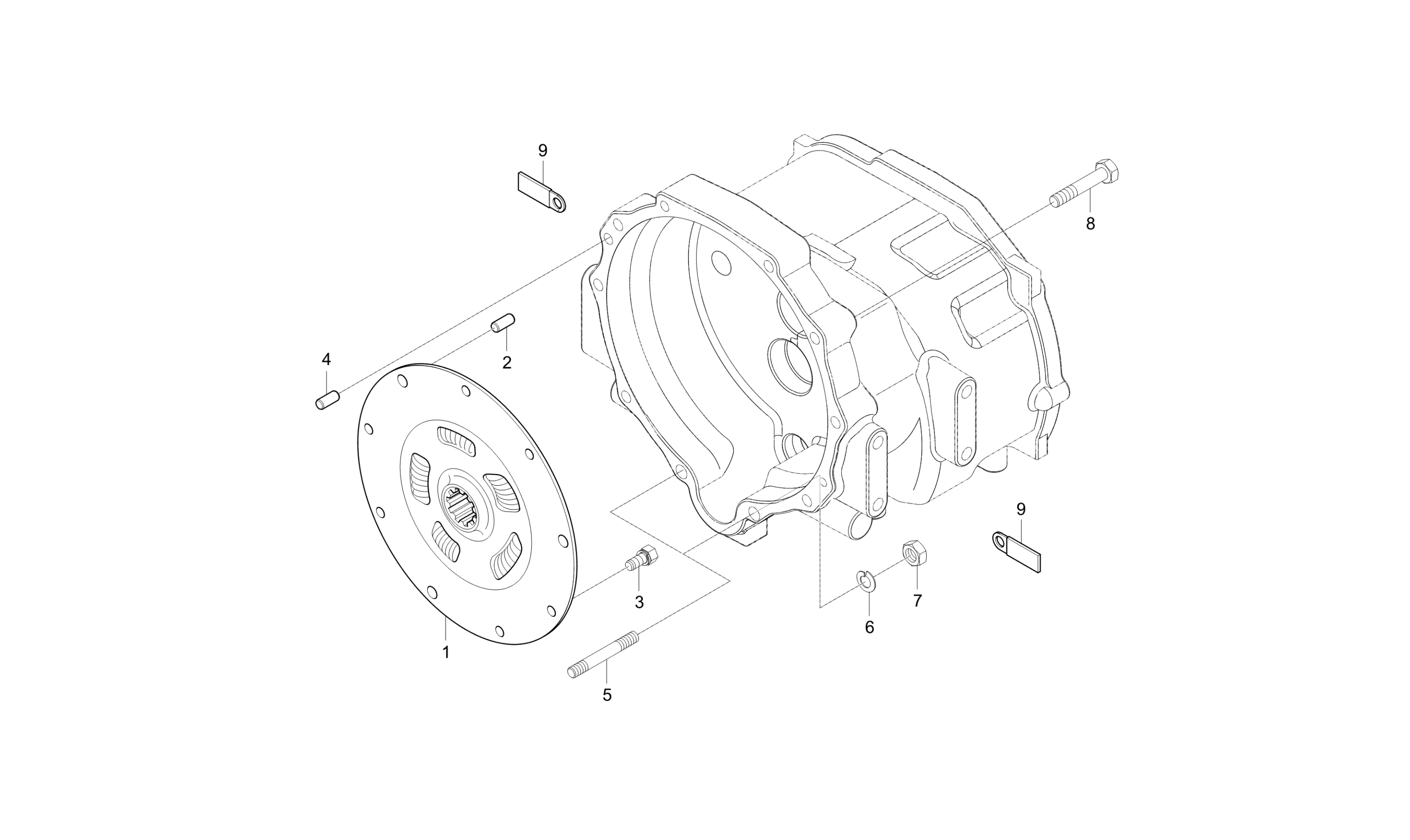

Diagram for CLUTCH GROUP - EX55CH-T105A
  • 1

    ASSY,DEMPER

    • Part No. T5220-14301
    • 1 shown on diagram
    $279.99
  • 2

    PIN, STRAIGHT

    • Part No. 05012-01020
    • Applied Dates Up to 2011-06-03
    • DIA10XL20
    • *multiple options for # 2
    • 3 shown on diagram
    $1.79
  • 2

    PIN, DOWEL

    • Part No. 05012-01016
    • Compatibility Interchngable
    • Applied Dates 2011-07-01 and up
    • Serial No. LA8600001 and up
    • *multiple options for # 2
    • 3 shown on diagram
    $1.49
  • 3 Bolt With Washer, M8 P1.25 x 16mm

    Bolt With Washer, M8 P1.25 x 16mm

    • Part No. 01123-50816
    • M8XP1.25
    • 6 shown on diagram
    $1.09
  • 4

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 5

    STUD

    • Part No. 01574-51265
    • M12XP1.25
    • 4 shown on diagram
    $7.49
  • 6 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 4 shown on diagram
    $0.95
  • 7 Nut M12 P1.25

    Nut M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 4 shown on diagram
    $1.49
  • 8

    BOLT

    • Part No. 01177-51265
    • M12XP1.25
    • 6 shown on diagram
    $4.99
  • 9

    CLAMP, NOZZLE dnr v

    • Part No. 32240-3446-1
    • 2 shown on diagram
    $3.99
