DRIVE SHAFT GROUP - EX55H-T175A

Kioti TRACTOR | DK Series | DK60CHSE

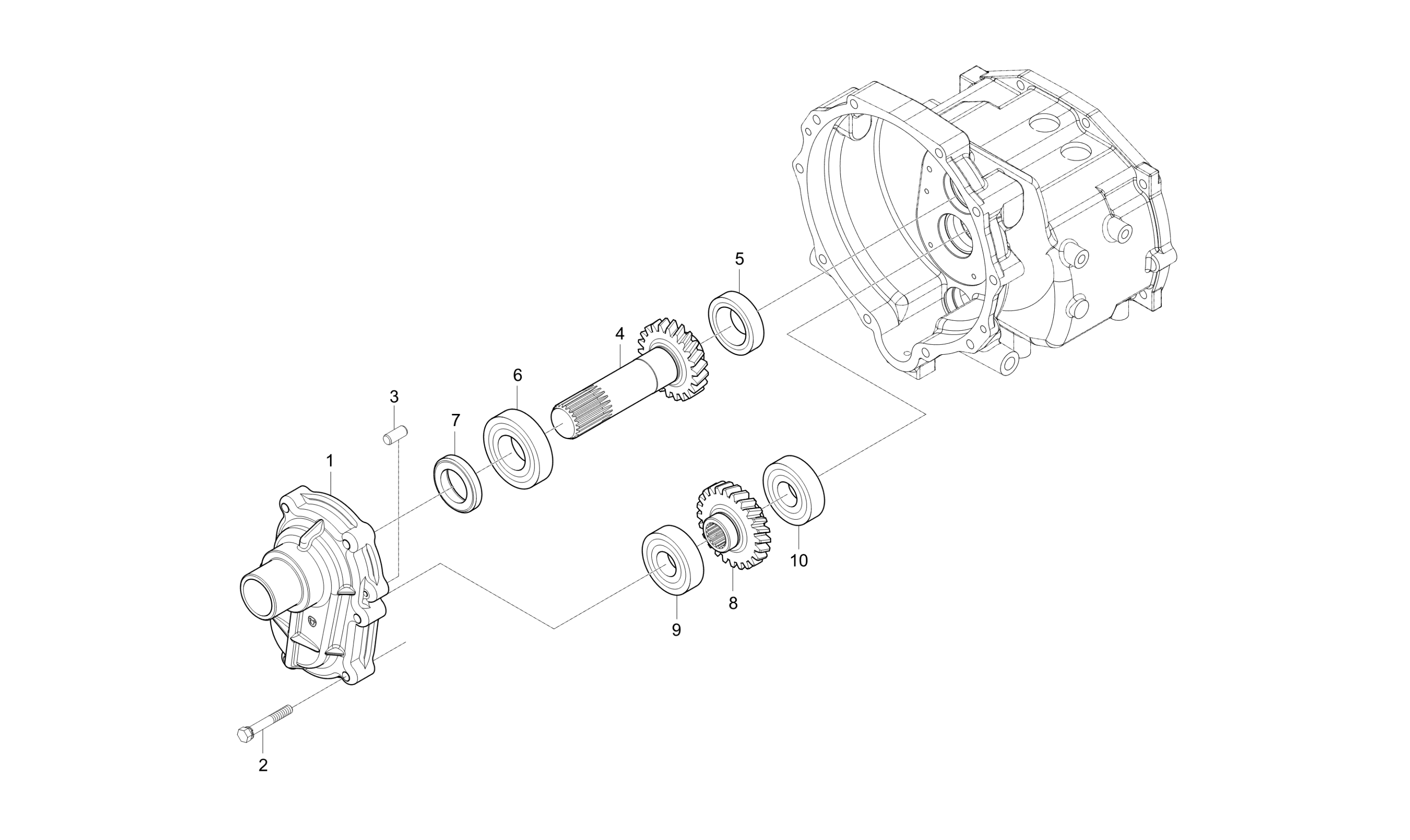

Diagram for DRIVE SHAFT GROUP - EX55H-T175A
  • 1

    CASE PROPELLAR SHAFT

    • Part No. T5515-14751
    • 1 shown on diagram
    $144.99
  • 2

    Bolt With Washer, M8 P1.25 x 40mm

    • Part No. 01123-50840
    • M8XP1.25
    • 6 shown on diagram
    $2.49
  • 3 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 4

    SHAFT GEAR 22

    • Part No. T4125-21312
    • 1 shown on diagram
    $259.99
  • 5 BEARING BALL 40x67x19

    BEARING BALL 40x67x19

    • Part No. 08101-06007
    • DIA35
    • 1 shown on diagram
    $26.99
  • 6 BEARING, BALL 35x80x21

    BEARING, BALL 35x80x21

    • Part No. 08101-06307
    • DIA35
    • 1 shown on diagram
    $41.99
  • 7 SEAL,OIL 35x52x8

    SEAL,OIL 35x52x8

    • Part No. 09500-35528
    • DIA35
    • 1 shown on diagram
    $3.49
  • 8

    GEAR 24

    • Part No. T4125-21322
    • 1 shown on diagram
    $99.99
  • 9 BEARING BALL 40x67x19

    BEARING BALL 40x67x19

    • Part No. 08101-06007
    • DIA35
    • 1 shown on diagram
    $26.99
  • 10 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 1 shown on diagram
    $28.99
