CLUTCH HOUSING GROUP - EX55CH-T135A

Kioti TRACTOR | DK Series | DK60CHSE

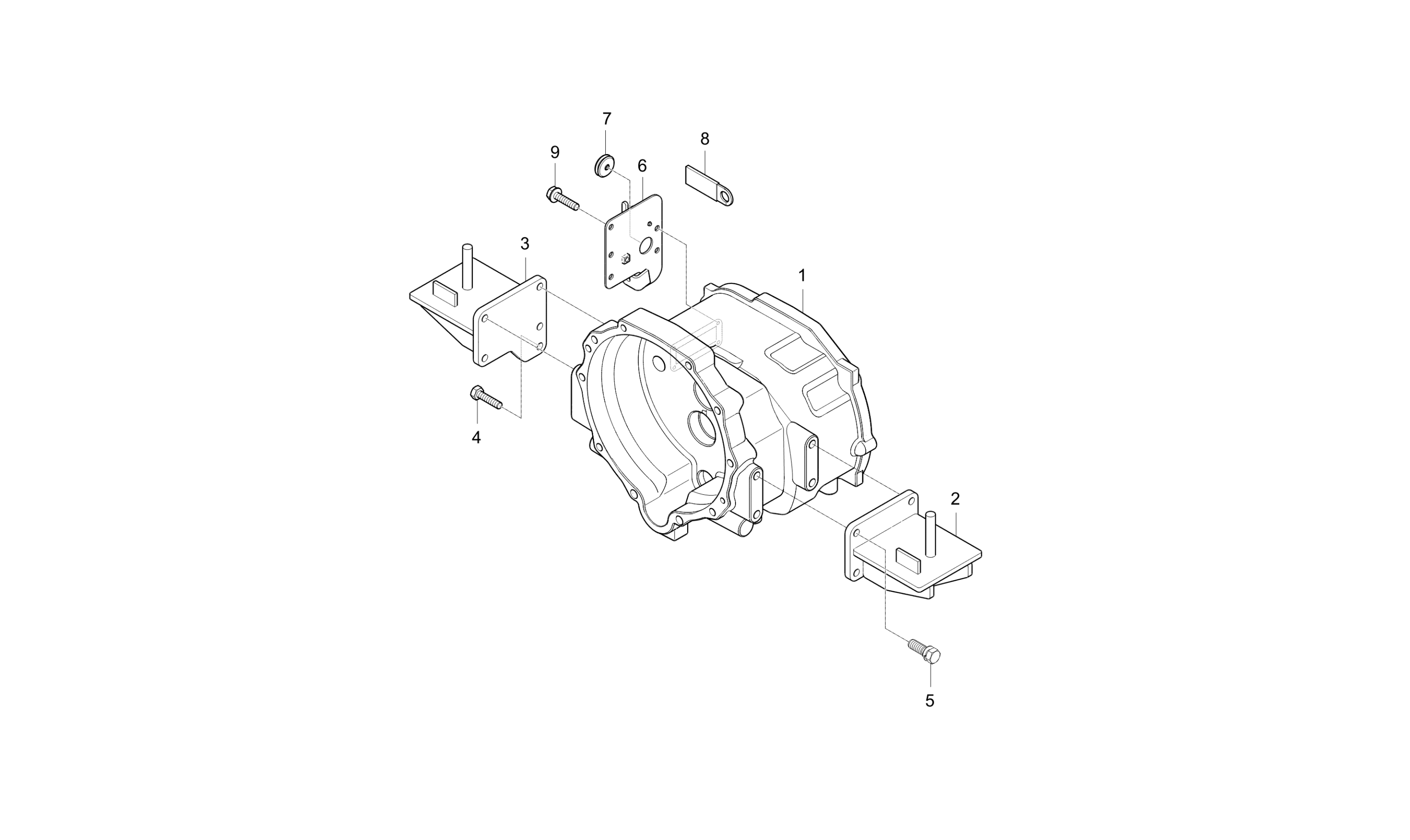

Diagram for CLUTCH HOUSING GROUP - EX55CH-T135A
  • 1

    HOUSING, CLUTCH

    • Part No. T5515-14111
    • 1 shown on diagram
    $1,309.99
  • 2

    CABIN SUPPORT FRONT, LH obs v

    • Part No. T5517-33331
    • 1 shown on diagram
    $144.99
  • 3

    CABIN SUPPORT FRONT, RH

    • Part No. T5517-33371
    • 1 shown on diagram
    $139.99
  • 4 Bolt M16 P1.50x90mm

    Bolt M16 P1.50x90mm

    • Part No. 01173-51690
    • Applied Dates Up to 2009-12-31
    • 2 shown on diagram
    $9.99
  • 5

    Bolt w/Lock Washer M12 P1.25x30mm

    • Part No. 01133-51230
    • M12XP1.25
    • 8 shown on diagram
    $5.49
  • 6

    BRACKET

    • Part No. T5515-33411
    • 1 shown on diagram
    $0.00
  • 7

    GROMMET

    • Part No. T2198-70471
    • 1 shown on diagram
    $3.49
  • 8

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 9 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
